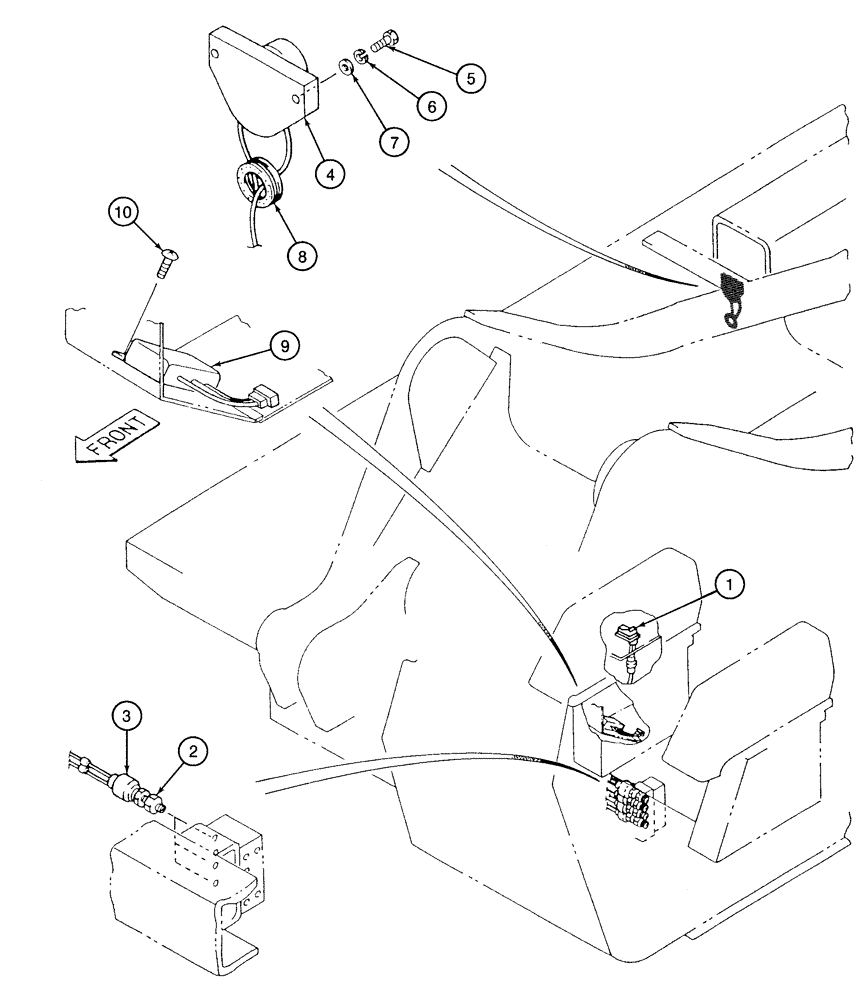

Запчасти Case 9050 (4-18) - TRAVEL ALARM (04) - ELECTRICAL SYSTEMS

1

152187A1

SWITCH

rocker

1шт.

2

151055A1

BUSHING

reducer at pressure switch

4шт.

3

151834A1

SWITCH

pressure

4шт.

4

162218A1

ALARM

travel was 151829A1

1шт.

5

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

6

892-11006

LOCK WASHER,M6

2шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

8

151004A1

GROMMET

rubber

1шт.

9

152492A1

RELAY

electrical

1шт.

10

151688A1

SCREW,Phil Pan Hd, M5 x 12mm, W/ Wshr

pan head relay mounting

1шт.
