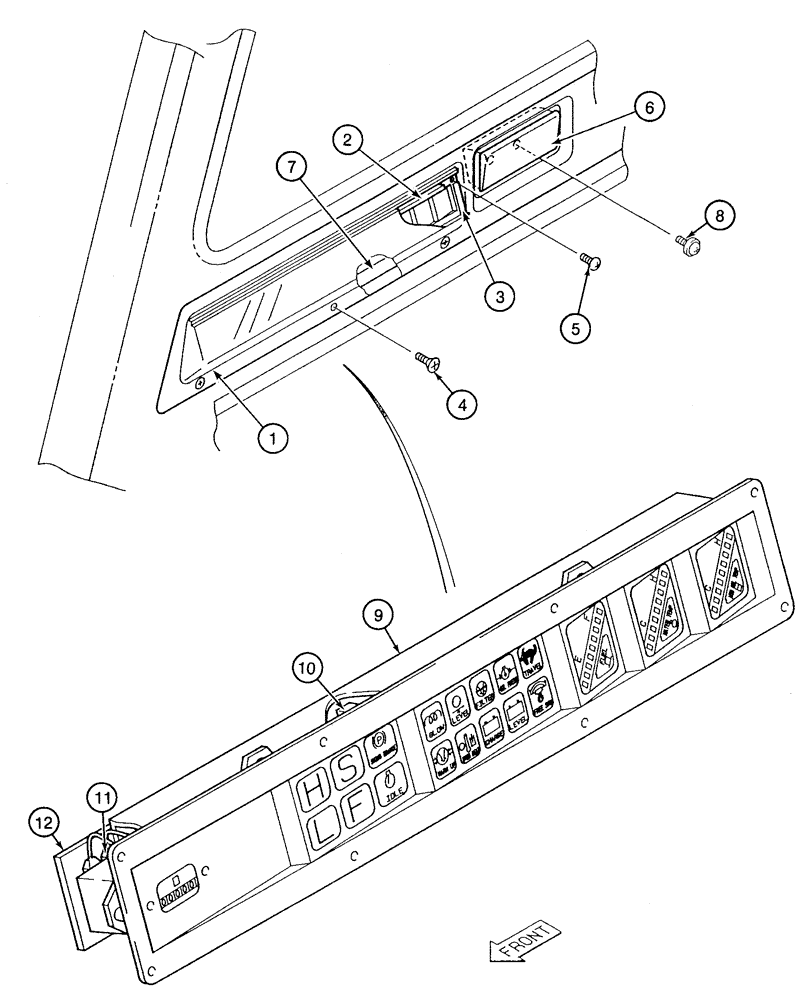

Запчасти Case 9050 (4-12) - INSTRUMENT CLUSTER AND MOUNTING (04) - ELECTRICAL SYSTEMS

1

156638A1

PANEL ASSY.

COVER instrument panel dust, was 152486A1

1шт.

152386A1

SEAL

KIT cover, Includes: Ref. 2 & 3

1шт.

2

152499A1

SEAL

horizontal

2шт.

3

152502A1

SEAL

cushion vertical

2шт.

4

150818A1

SCREW,Spcl, Oval Hd Csk, M4 x 12mm

special cover mounting

4шт.

5

150875A1

SCREW,Phil Truss Hd, M4 x 12mm

special cluster mounting

8шт.

6

151946A1

ASH TRAY

cab

1шт.

7

151549A1

PLASTIC-RUBBER TUBE

corrugated 3-1/8 inch (80 mm) long

1шт.

8

151688A1

SCREW,Phil Pan Hd, M5 x 12mm, W/ Wshr

pan head ashtray mounting

2шт.

151115A1

CONTROL

instrument, Includes: Ref. 9 - 12

1шт.

9

151663A1

BOARD, PRINTED CIRCU

IT CLUSTER instrument

1шт.

10

150755A1

LAMP

instrument cluster

18шт.

11

150763A1

HOURMETER

electric

1шт.

12

150764A1

PLATE

backing instrument cluster

1шт.
