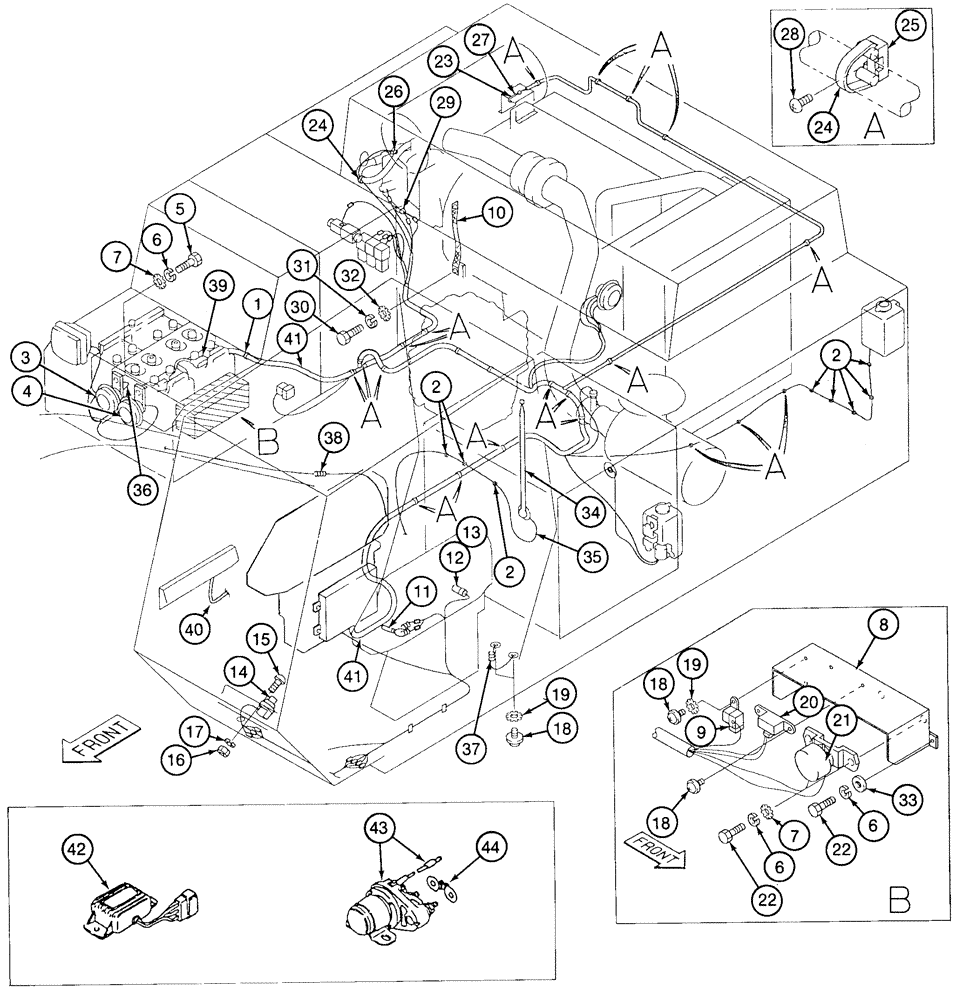

Запчасти Case 9050 (4-08) - MAIN ELECTRICAL WIRING (04) - ELECTRICAL SYSTEMS

1

150712A1

CLIP

support, wiring

1шт.

2

150563A1

CLIP

wire

1шт.

150836A1

HORN

high, Includes: Ref. 3 & 4

1шт.

3

150838A1

HORN

high tone

1шт.

4

150840A1

HORN

low tone

1шт.

6

892-11008

LOCK WASHER,8mm ID

6шт.

7

893-11008

LOCK WASHER,Ext Tooth, M8

2шт.

8

151792A1

COVER

relay

1шт.

9

151060A1

RELAY

heating

1шт.

10

150780A1

NEG BATTERY CABLE

ground

1шт.

11

151031A1

TUBE,3.6 mm ID, 200 mm Length

vinyl 7-7/8 inch (200 mm) long

2шт.

12

150089A1

TERMINAL CONNECTOR

electrical

2шт.

13

150094A1

TERMINAL CONNECTOR

electrical

2шт.

14

158884A1

IGNITION SWITCH

push button two-speed travel, was 153624A1

1шт.

15

843-1516

SCREW,Flat , M5 x 16mm, Cl 4.8

machine, flat Phillips 5 - 0.8 x 16 mm

2шт.

16

825-1405

NUT,M5, Cl 8

2шт.

17

892-11005

LOCK WASHER,M5

2шт.

18

152100A1

CAPTIVE WASHER SCREW,Phil Pan Hd, M6 x 16mm

special relay mounting

6шт.

19

893-11006

LOCK WASHER,Ext Tooth, M6

3шт.

20

156501A1

RELAY

safety was 150550A1

1шт.

21

150663A1

RELAY

battery

1шт.

22

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

Full threads

4шт.

23

152660A1

PLASTIC-RUBBER TUBE

GUARD harness

1шт.

24

150071A1

MOUNTING CLIP

STRAP tie 365 mm long

1шт.

25

150860A1

COLLAR

BRACKET support

1шт.

26

150974A1

SENSOR

SENDER temperature hydraulic

1шт.

27

150067A1

MOUNTING CLIP

tie 150 mm long

1шт.

28

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

29

150912A1

SWITCH

pressure

1шт.

30

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

1шт.

31

892-11012

LOCK WASHER,M12

1шт.

32

30574R1

LOCK WASHER,Ext Tooth, M12

internal tooth lock 12 mm

1шт.

33

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

34

152497A1

ANTENNA

radio

1шт.

35

152500A1

CABLE ASSY.

WIRE antenna

1шт.

36

151144A1

HARNESS

horn

1шт.

37

150246A1

HARNESS

ground

1шт.

38

150828A1

HARNESS

work light

1шт.

39

150738A1

NEG BATTERY CABLE

jumper

1шт.

40

150930A1

HARNESS

instrument cluster

1шт.

41

151785A1

HARNESS

main electrical

1шт.

42

135153A1

RELAY

alternator safety

1шт.

43

135154A1

RELAY

intake air heater, Includes: Ref. 44

1шт.

44

135155A1

FUSE

blade-type 91 amp

1шт.

5

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.
