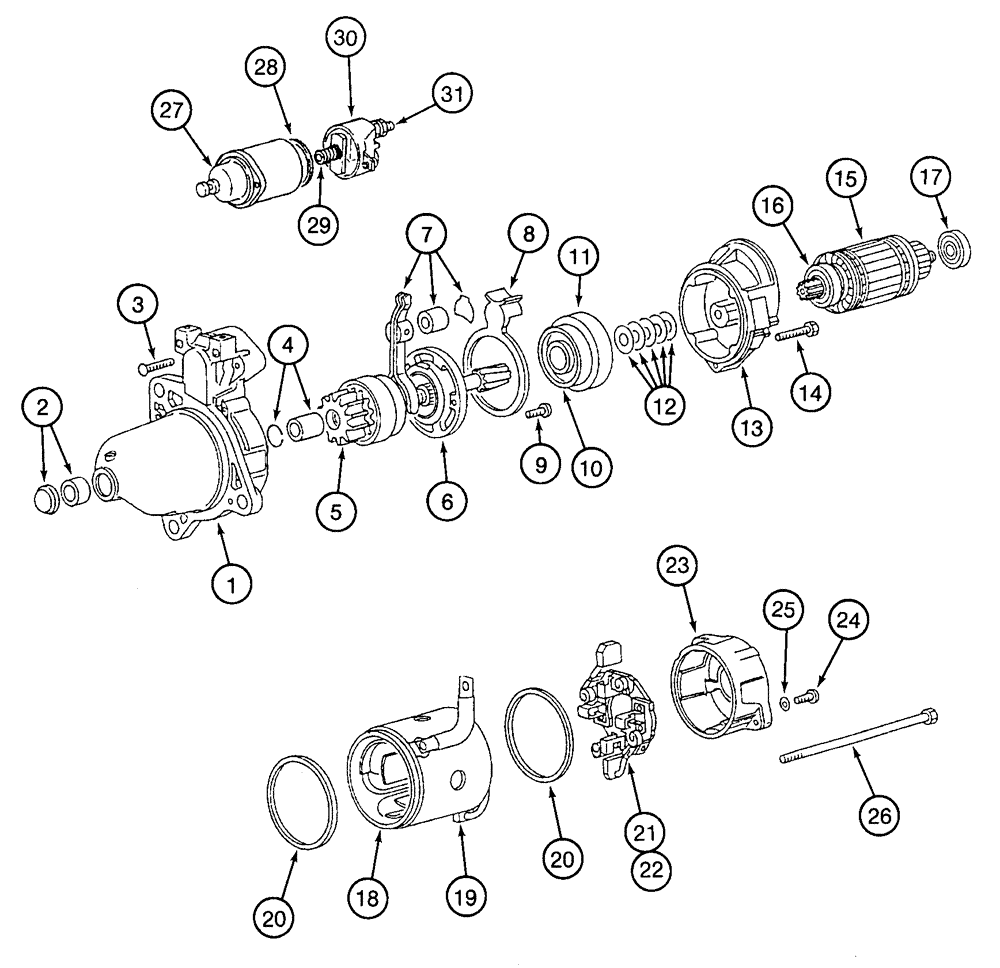

Запчасти Case 9050 (4-04) - STARTER ASSEMBLY (04) - ELECTRICAL SYSTEMS

135035A1

STARTING MOTOR

24 volt, Includes: Ref. 1 - 31

1шт.

1

135049A1

BRACKET

HOUSING starter

1шт.

2

135037A1

SET OF PARTS

bearing and sleeve

1шт.

3

135075A1

SCREW

housing

2шт.

4

135067A1

STOP

KIT stopper starter pinion

1шт.

5

135052A1

PINION

CLUTCH starter

1шт.

6

135047A1

BRACKET

starter gear

1шт.

7

135059A1

SET OF PARTS

lever starter pinion shaft

1шт.

8

135056A1

GASKET

gear

1шт.

9

135096A1

SCREW

special

1шт.

10

135038A1

BEARING

armature

1шт.

11

135057A1

GEAR

starter reduction

1шт.

12

135071A1

WASHER

SET starter gear shaft

1шт.

13

135048A1

BRACKET

HOUSING gear

1шт.

14

135096A1

SCREW

special

1шт.

135036A1

SET OF PARTS

armature, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

ARMATURE starter

1шт.

16

135040A1

BEARING

armature gear side

1шт.

17

135042A1

BEARING

armature brush side

1шт.

18

135073A1

HOUSING

YOKE starter, Includes: Ref. 19

1шт.

19

135051A1

BRUSH ASSY.

starter

2шт.

20

135063A1

GASKET

starter

1шт.

21

135058A1

HOLDER

brush, Includes: Ref. 23

1шт.

22

135065A1

SPRING

brush

4шт.

23

135050A1

BRACKET

FRAME cummulator end

1шт.

24

135096A1

SCREW

special

1шт.

25

135064A1

SEALING RING

ring

2шт.

26

135044A1

BOLT

SET

1шт.

135068A1

SWITCH

KIT, Includes: Ref. 27 - 31

1шт.

27

135054A1

COVER

magnetic switch

1шт.

28

135055A1

GASKET

gear

1шт.

29

135060A1

PLATE

, Serial Range: switch-terminal

1шт.

30

135053A1

CAP

switch

1шт.

31

135046A1

BOLT

switch

1шт.
