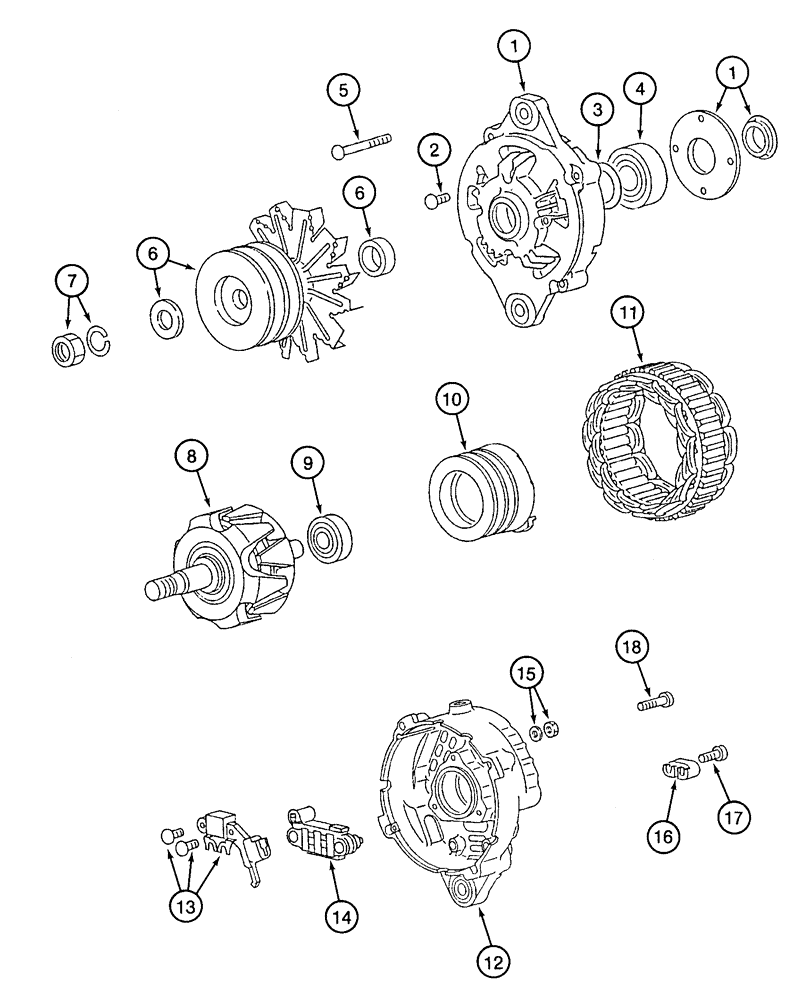

Запчасти Case 9050 (4-02) - ALTERNATOR AND REGULATOR (04) - ELECTRICAL SYSTEMS

135104A1

ALTERNATOR

24 volt, 40 ampere, Includes: Ref. 1 - 18

1шт.

135126A1

BRACKET

FRAME, drive end, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME drive end, includes bearing sleeve and retainer plate

1шт.

2

135138A1

SCREW

special

1шт.

3

135130A1

OIL SEAL

rotor shaft

1шт.

4

135108A1

BEARING, BALL

rotor

1шт.

5

135137A1

SCREW

special

1шт.

6

135131A1

PULLEY

KIT pulley and fan includes flat washer and rotor shaft bushing

1шт.

7

135142A1

NUT

KIT includes lock washer

1шт.

135134A1

ROTOR ASSY.

alternator, Includes: Ref. 8 & 9

1шт.

8

NSS

NOT SOLD SEPARAT

ROTOR alternator

1шт.

9

135111A1

BEARING

rotor

1шт.

10

135128A1

COIL ASSY.

rotor

1шт.

11

240374A1

STAY

STATOR alternator

1шт.

135127A1

BRACKET

FRAME, regulator end, Includes: Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

FRAME regulator end

1шт.

13

135133A1

REGULATOR

alternator

1шт.

14

135132A1

RECTIFIER

alternator

1шт.

15

135141A1

NUT

includes flat washer

1шт.

16

135129A1

INSULATOR

alternator harness

1шт.

17

135140A1

SCREW

special

1шт.

18

135139A1

SCREW

special

1шт.
