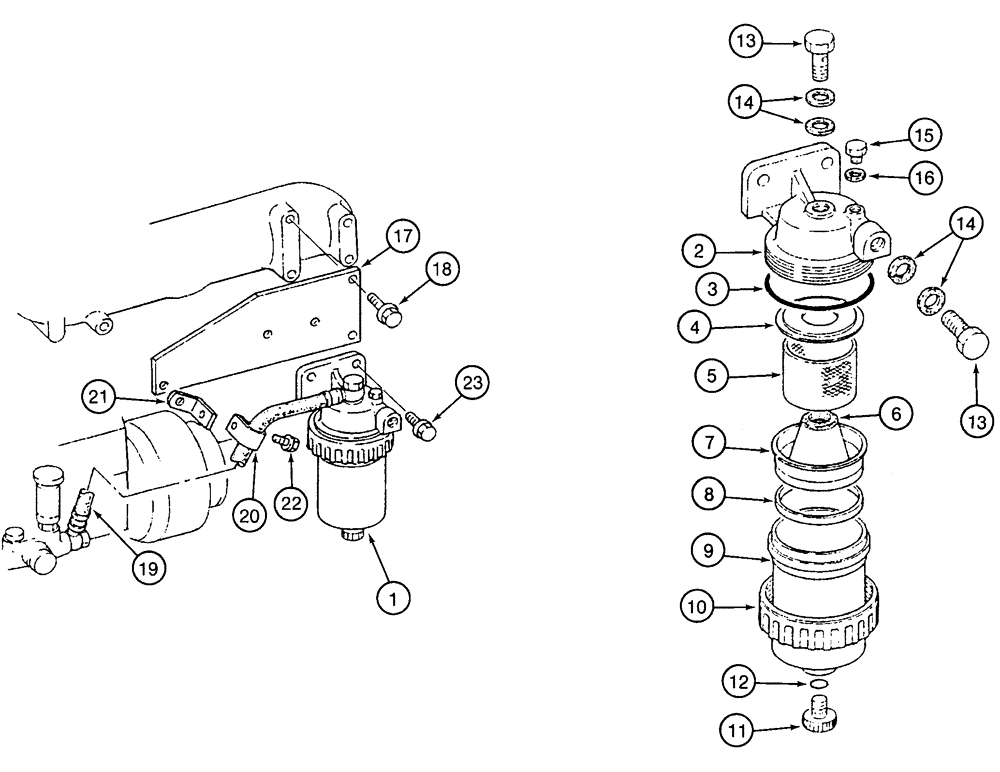

Запчасти Case 9050 (3-18) - FUEL LINES AND WATER SEPARATOR (03) - FUEL SYSTEM

1

133381A1

SEPARATOR

water fuel line, Includes: Ref. 2 - 16

1шт.

2

133365A1

HEAD

water separator

1шт.

3

133377A1

O-RING

separator, Serial Range: body-head

1шт.

4

133370A1

PLATE

baffle

1шт.

5

133382A1

SCREEN

ELEMENT water separator

1шт.

6

133363A1

GASKET

baffle plate

1шт.

7

133368A1

COVER

baffle

1шт.

8

240106A1

FLOAT

water level

1шт.

9

133361A1

CASE

BODY water separator

1шт.

10

133372A1

NUT

water separator

1шт.

11

133376A1

PLUG

nylon

1шт.

12

133367A1

O-RING

plug, 10 mm

1шт.

13

132662A1

EYEBOLT

BOLT, EYE 14 x 26 mm

2шт.

14

133378A1

GASKET

GASKET special eye bolt

4шт.

15

240107A1

PLUG

hex 8 mm

1шт.

16

133379A1

GASKET

special 8 mm

1шт.

17

133359A1

BRACKET

mounting water separator

1шт.

18

133384A1

SPECIAL BOLT

hex flange 10 x 22 mm

3шт.

19

133388A1

FUEL HOSE

18 inch (460 mm) long injection pump supply

1шт.

20

133383A1

CLIP

hose 16 mm fuel hose

1шт.

21

133374A1

BRACKET

angle, 90 degree clamp

1шт.

22

132373A1

BOLT,Hex Flg, M6 x 12mm

hex flange 6 x 12 mm

1шт.

23

133387A1

BOLT,Hex Flg, M10 x 20mm

hex flange 10 x 20 mm

2шт.
