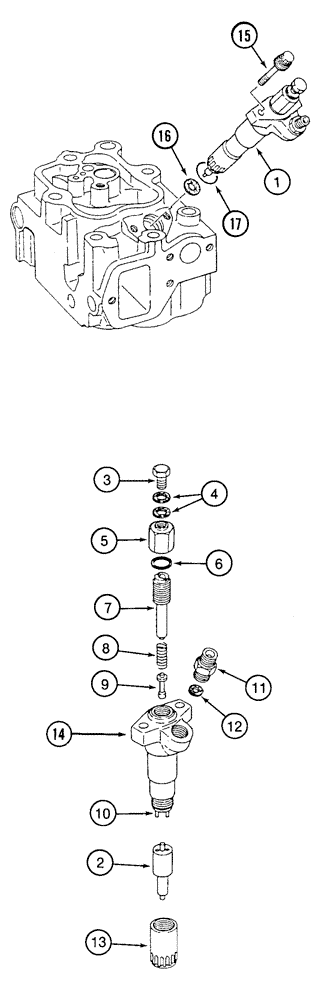

Запчасти Case 9050 (3-14) - FUEL INJECTION NOZZLE (03) - FUEL SYSTEM

1

134648A1

NOZZLE INJECTION

Includes: Ref. 2 - 14

6шт.

2

134692A1

TIP

NOZZLE fuel injection

1шт.

134688A1

HOLDER

fuel injection, Includes: Ref. 3 - 14

1шт.

3

134650A1

BOLT

BOLT, EYE hex, banjo

1шт.

4

134686A1

GASKET

nozzle, inner

2шт.

5

134714A1

NUT

nozzle

1шт.

6

134652A1

GASKET

nozzle screw

1шт.

7

134710A1

SCREW

nozzle

1шт.

8

134709A1

SPRING

nozzle holder

1шт.

9

134708A1

PUSH ROD

nozzle holder

1шт.

10

134711A1

DOWEL

PIN holder

2шт.

11

134690A1

FITTING

straight, special

1шт.

12

134685A1

GASKET

special

1шт.

13

134712A1

NUT

holder

1шт.

14

NSS

NOT SOLD SEPARAT

HOLDER nozzle

1шт.

15

134715A1

BOLT,M8 x 56mm

hex flange 8 x 56 mm

12шт.

16

134649A1

SEAL

dust nozzle holder

6шт.

17

134651A1

GASKET

fuel injection nozzle

6шт.
