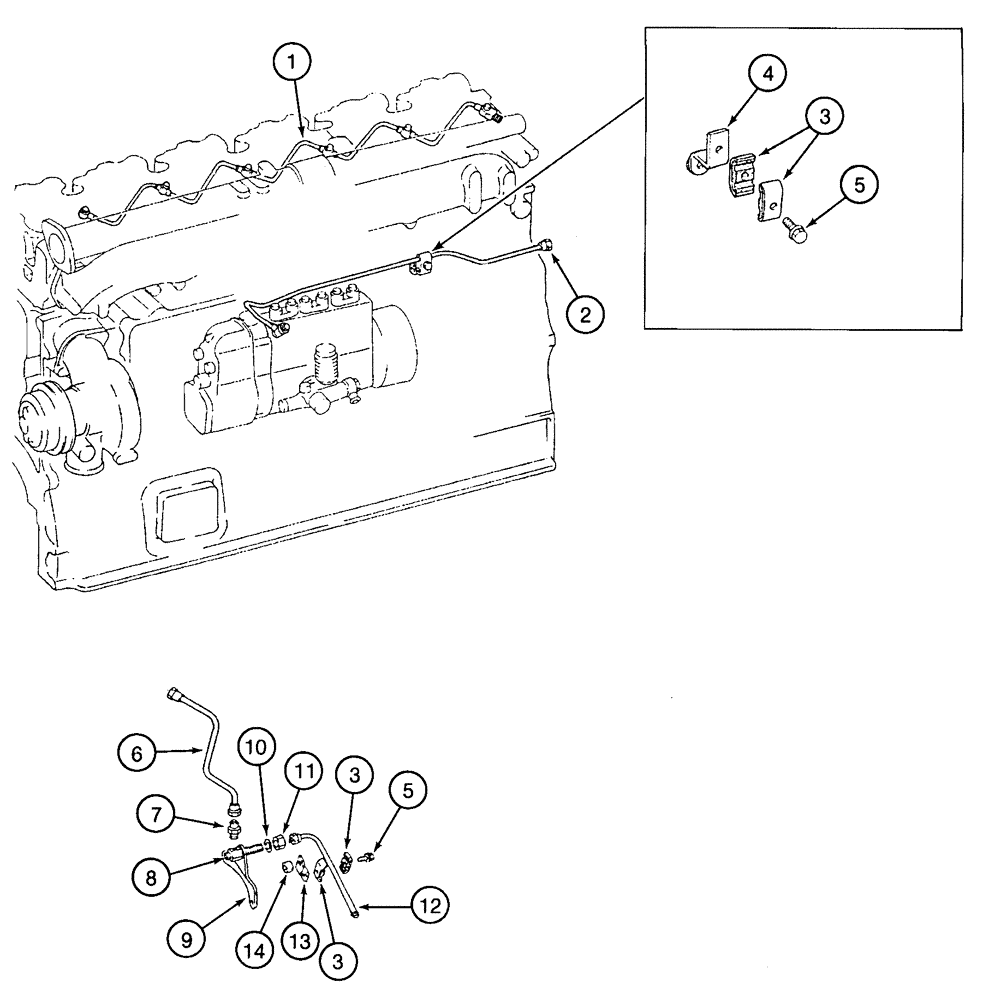

Запчасти Case 9050 (3-10) - FUEL RETURN LINES (03) - FUEL SYSTEM

1

240284A1

FUEL TUBE

fuel injection nozzle return was 134733A1 or ME056925

1шт.

2

134732A1

TUBE

injection pump overflow

1шт.

3

133329A1

CLAMP

tube 2 x 6 mm

4шт.

4

134723A1

SUPPORT

clamp

1шт.

5

133338A1

BOLT,Hex Flg, M6 x 35mm

hex flange 6 x 35 mm

2шт.

6

134734A1

FUEL TUBE

fuel injection nozzle return

1шт.

7

133327A1

FITTING

straight

1шт.

8

134727A1

CONNECTOR, ELEC

CONNECTOR special fuel return tubes

1шт.

9

134729A1

BRACKET

adapter

1шт.

10

132622A1

WASHER

lock 14 mmø

1шт.

11

132634A1

NUT

hex jam 14 mm

1шт.

12

134721A1

FUEL TUBE

fuel return

1шт.

13

134724A1

SUPPORT

clamp

1шт.

14

134731A1

STAY

SPACER 15 mm clamp

1шт.
