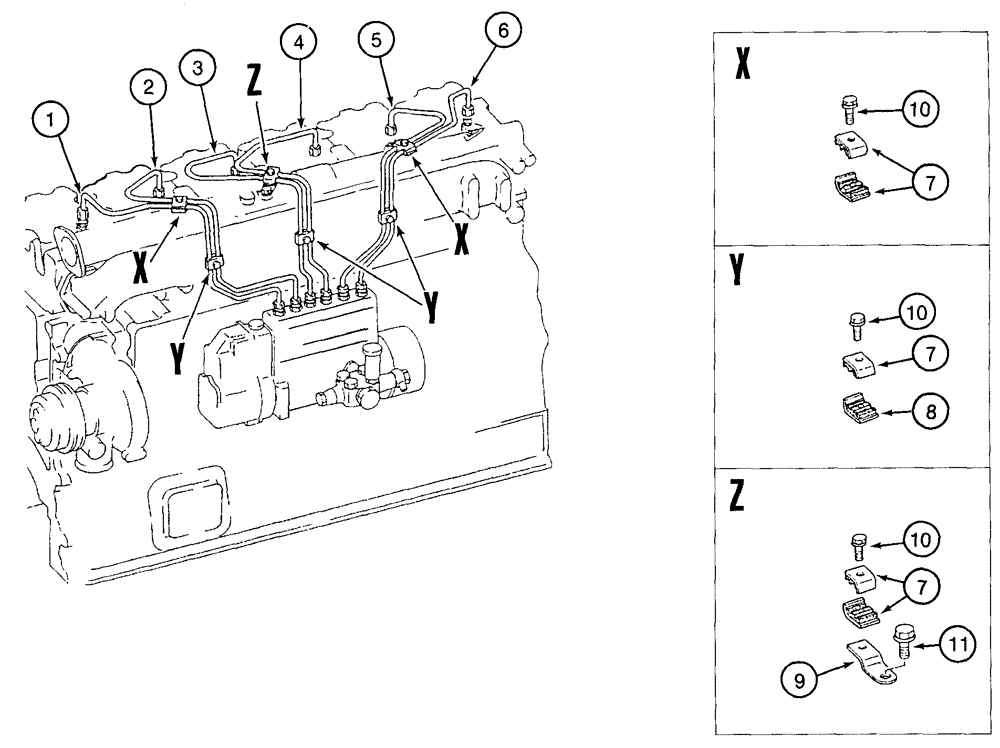

Запчасти Case 9050 (3-08) - INJECTION TUBES (03) - FUEL SYSTEM

1

134693A1

FUEL TUBE

fuel No. 1 cylinder

1шт.

2

134694A1

FUEL TUBE

fuel No. 2 cylinder

1шт.

3

134696A1

FUEL TUBE

fuel No. 3 cylinder

1шт.

4

134698A1

FUEL TUBE

fuel No. 4 cylinder

1шт.

5

134702A1

FUEL TUBE

fuel No. 5 cylinder

1шт.

6

134704A1

FUEL TUBE

fuel No. 6 cylinder

1шт.

134707A1

FUEL TUBE

fuel straight, not shown

1шт.

7

134717A1

CLAMP

tube

9шт.

8

134718A1

CLAMP

tube

3шт.

9

133325A1

STAY

SUPPORT clamp

1шт.

10

134719A1

SPECIAL BOLT

hex flange 6 x 25 mm

6шт.

11

132289A1

BOLT,Hex Flg, M10 x 16mm

hex, flange 10 x 16 mm

1шт.
