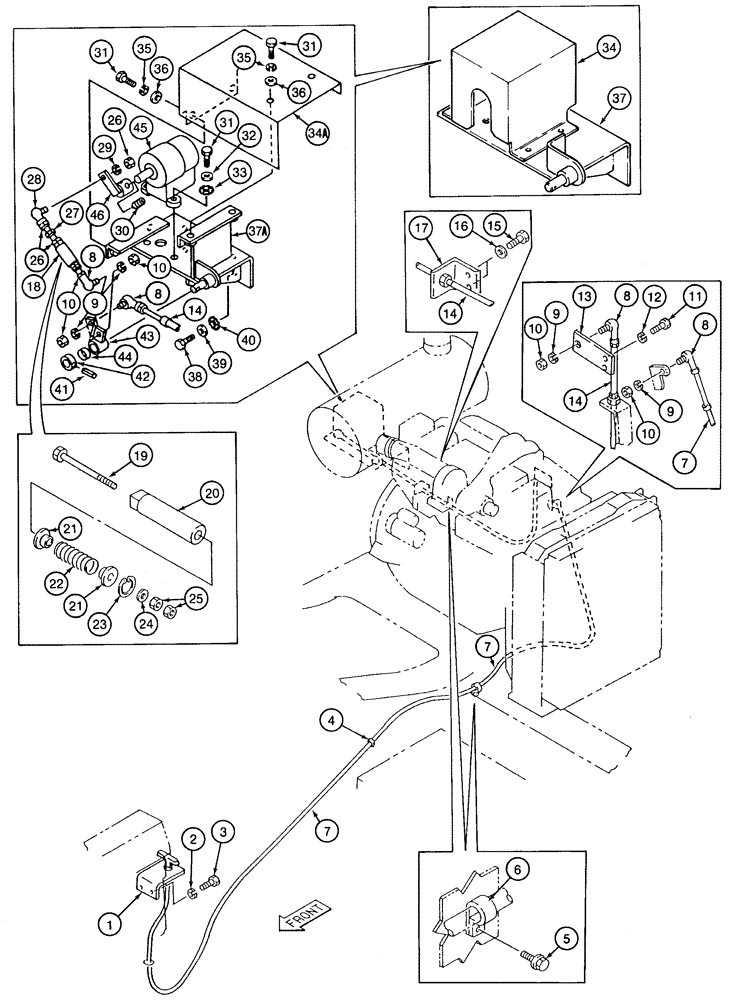

Запчасти Case 9050 (3-06) - THROTTLE AND FUEL SHUTOFF CONTROLS (03) - FUEL SYSTEM

1

152166A1

BRACKET

mounting emergency shutoff T-handle

1шт.

2

892-11010

LOCK WASHER,M10

2шт.

3

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

4

150071A1

MOUNTING CLIP

STRAP tie 365 mm long

1шт.

5

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

hex, special was 156701A1

2шт.

6

153039A1

CLAMP

P-type 12 mm ID

2шт.

7

150560A1

CABLE PULLING GRIP

emergency shutoff includes T-handle

1шт.

8

150054A1

BALL JOINT

4шт.

9

892-11006

LOCK WASHER,M6

4шт.

10

829-1406

NUT,Hex, M6 x 1, Cl 10.9

5шт.

11

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

Full threads

2шт.

12

892-11006

LOCK WASHER,M6

2шт.

13

151744A1

CONTROL LEVER

emergency shutoff cables

1шт.

14

151747A1

CABLE PULLING GRIP

control throttle control, top of engine

1шт.

15

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

16

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

2шт.

17

151759A1

BRACKET

cable support

1шт.

18

150535A1

SPRING

cable return, Includes: Ref. 19 - 25

1шт.

19

150540A1

BOLT,Hex, M6 x 95mm, Spcl

hex special

1шт.

20

150537A1

TUBE

HOUSING spring

1шт.

21

150453A1

COLLAR CLAMP

GUIDE spring

2шт.

22

150543A1

SPRING

cable return

1шт.

23

800-2122

SNAP RING,M22, Internal

1шт.

24

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

25

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

26

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

27

150547A1

ROD,THREADED

THREADED ROD cable return spring

1шт.

28

153235A1

BALL JOINT

1шт.

29

892-11008

LOCK WASHER,8mm ID

1шт.

30

878-10812

SET SCREW,Hex Skt, M8 x 12mm, Cup Pt

2шт.

31

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

6шт.

32

150594A1

WASHER

flat 10.5 x 18 x 3.2 mm

2шт.

33

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

34

151930A1

COVER

throttle motor used with ref 37 bracket, see illustration

1шт.

34a

158633A1

COVER

throttle motor used with ref 37A bracket, see illustration

1шт.

35

892-11010

LOCK WASHER,M10

4шт.

36

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat 11 x 21 x 2 mm

4шт.

37

151924A1

BRACKET

mounting throttle motor linkage and cover, used with ref 34 cover, see illustration

1шт.

37a

158632A1

BRACKET

mounting throttle motor linkage and cover, used with ref 34a cover, see illustration

1шт.

38

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

4шт.

39

150811A1

WASHER

flat, special 12 mm

4шт.

40

30574R1

LOCK WASHER,Ext Tooth, M12

internal tooth lock 12 mm

1шт.

41

738-1632

LOCK PIN,M6 x 32, Slotted

roll 6 x 32 mm

1шт.

42

150767A1

SPACER

COLLAR pin bellcrank

1шт.

43

151751A1

LINK ASSY.

BELLCRANK throttle linkage

1шт.

44

151272A1

BUSHING

bellcrank

1шт.

45

152920A1

MOTOR

throttle component parts not serviced separately

1шт.

152920A1R

REMAN-ELECTRIC MOTOR

9050 (12/92-)

1шт.

152920A1C

CORE-ELECTRIC MOTOR

Return Number

1шт.

46

152063A1

LEVER

throttle motor

1шт.
