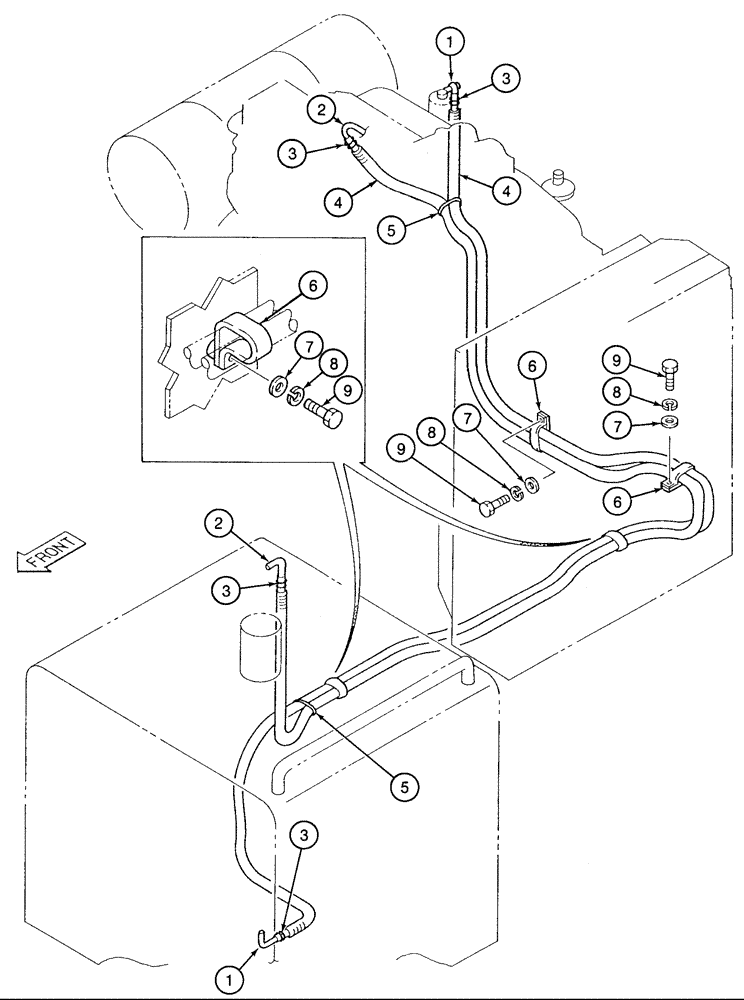

Запчасти Case 9050 (3-04) - FUEL LINES (03) - FUEL SYSTEM

1

150609A1

PLASTIC-RUBBER TUBE,9.5 mm ID, 14.5 mm OD, 4500 mm Length

fuel supply

1шт.

2

150613A1

PLASTIC-RUBBER TUBE,9.5 mm ID, 14.5 mm OD, 4500 mm Length

fuel return

1шт.

3

153043A1

COLLAR

wire-type

4шт.

4

151557A1

PLASTIC-RUBBER TUBE

SLEEVE corrugated 169-9/32 inch (4300 mm) long

2шт.

5

150071A1

MOUNTING CLIP

STRAP tie 365 mm long

2шт.

6

150585A1

CLAMP

P-type double

4шт.

7

895-10006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

flat 6.6 x 12.5 x 1.6 mm if used

4шт.

8

892-11006

LOCK WASHER,M6

If Used

4шт.

9

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

hex, special

4шт.
