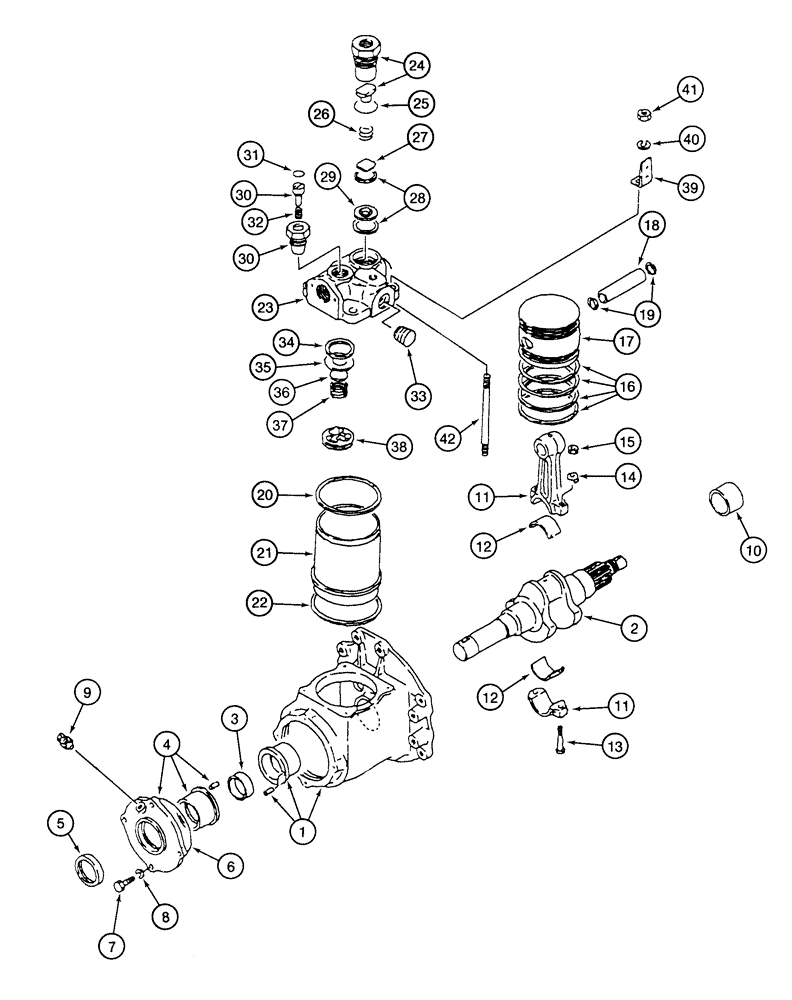

Запчасти Case 9050 (2-54) - AIR COMPRESSOR ASSEMBLY (02) - ENGINE

132554A1

COMPRESSOR

air, Includes: Ref. 1 - 42

1шт.

1

132563A1

HOUSING

air compressor includes bearing sleeve and dowel pin

1шт.

2

132564A1

CRANKSHAFT

air compressor

1шт.

3

132599A1

SLEEVE

crankshaft

1шт.

Part of oil seal kit P/N ME713418

1шт.

4

132570A1

HOUSING

bearing Includes: housing, bearing sleeve, oil seal and dowel pin, Includes: Ref. 5

1шт.

5

132576A1

OIL SEAL

crankshaft, front

1шт.

Part of oil seal kit P/N ME713418

1шт.

6

132630A1

O-RING

bearing housing

1шт.

7

132667A1

BOLT,Hex, M8 x 22mm

hex 8 x 22 mm

4шт.

8

132619A1

WASHER

lock 8 mm

4шт.

9

132643A1

FITTING

special bearing housing

1шт.

10

132559A1

COLLAR

crankshaft rear

1шт.

132561A1

PITMAN ASSY.

ROD ASSEMBLY connecting, Includes: Ref. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

ROD connecting, includes both halves

1шт.

12

132555A1

CRANKSHAFT BEARING

BEARING, CON. ROD connecting rod

2шт.

13

132668A1

BOLT

connecting rod

2шт.

14

132618A1

WASHER

connecting rod

2шт.

15

132631A1

NUT

connecting rod

2шт.

16

132598A1

PISTON RING SET

piston ring

1шт.

17

132597A1

PISTON

air compressor

1шт.

18

132581A1

PIN

piston

1шт.

19

132604A1

RING, SNAP

RING SNAP piston pin

2шт.

20

132565A1

GASKET

piston sleeve upper

1шт.

21

132575A1

SLEEVE CYLINDER

piston

1шт.

22

132566A1

GASKET

piston sleeve lower

1шт.

132569A1

HEAD (CYLINDER)

ASSEMBLY air compressor, Includes: Ref. 23 - 42

1шт.

23

NSS

NOT SOLD SEPARAT

HEAD cylinder

1шт.

132608A1

SET OF PARTS

VALVE ASSEMBLY delivery, Includes: Ref. 24 - 29

1шт.

24

132571A1

FITTING

HOLDER delivery valve with poppet

1шт.

25

132629A1

O-RING

holder

1шт.

26

132605A1

SPRING

delivery valve

1шт.

27

132614A1

VALVE

delivery

1шт.

28

132567A1

GASKET

delivery valve

2шт.

29

132600A1

SEAT, VALVE

delivery valve

1шт.

132613A1

SET OF PARTS

unloader valve assembly, Includes: Ref. 30 - 32

1шт.

30

NSS

NOT SOLD SEPARAT

BODY unloader valve, with poppet

1шт.

31

132603A1

RING, SNAP

RING SNAP

1шт.

32

132607A1

SPRING

compression type unloader valve

1шт.

33

132627A1

PLUG

cylinder head

1шт.

132611A1

SET OF PARTS

suction valve assembly, Includes: Ref. 34 - 42

1шт.

34

132568A1

GASKET

suction valve

1шт.

35

132602A1

SEAT

suction valve

1шт.

36

132616A1

VALVE

suction

1шт.

37

132606A1

SPRING

compression type suction valve

1шт.

38

132572A1

HOLDER

suction valve

1шт.

39

132556A1

BRACKET

head pipe

1шт.

40

132620A1

WASHER

lock 10 mm

4шт.

41

132632A1

NUT

hex 10 mm

4шт.

42

132625A1

STUD

cylinder head

4шт.

ME713418

KIT

oil seal, compressor front crankshaft, Includes: Ref. 3 & 5

1шт.
