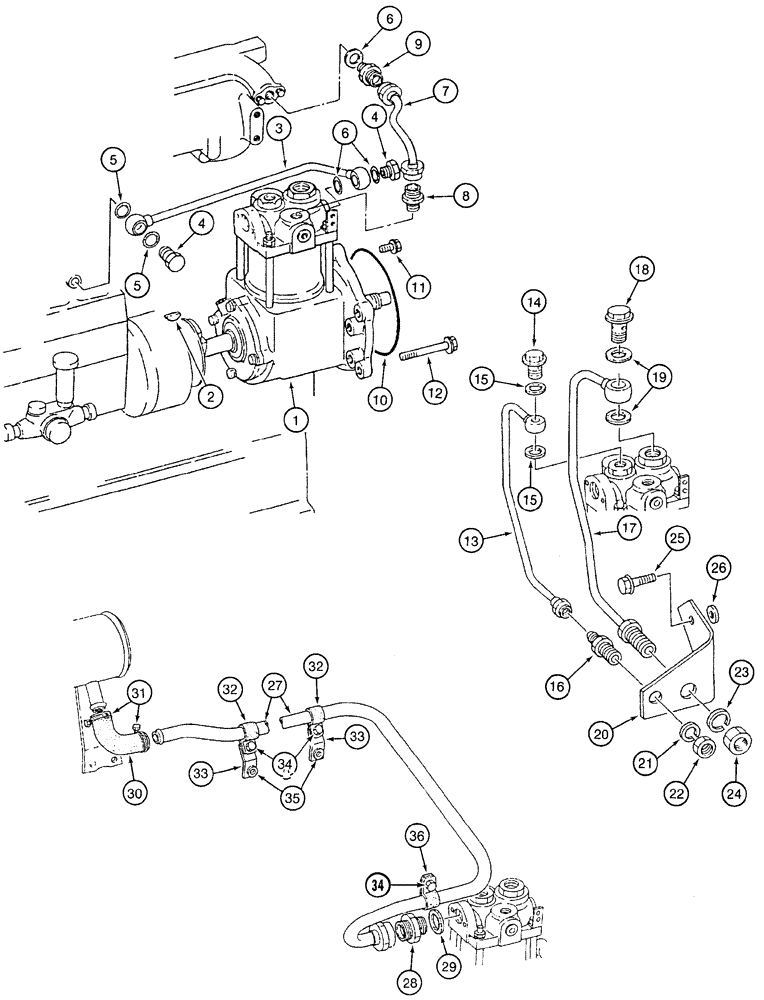

Запчасти Case 9050 (2-52) - AIR COMPRESSOR SYSTEM (02) - ENGINE

1

132554A1

COMPRESSOR

air, parts list Figure 2-54

1шт.

2

132635A1

KEY

Woodruff 5 x 22 mm

1шт.

3

132596A1

TUBE

water inlet

1шт.

4

132660A1

BOLT,M16 x 29mm

BOLT, EYE 16 x 29 mm inlet tube

2шт.

5

132412A1

GASKET

special 16 mm eyebolt

2шт.

6

132636A1

GASKET

14 mm eyebolt

3шт.

7

132589A1

UNLOADING TUBE

water outlet

1шт.

8

132650A1

FITTING

at air compressor

1шт.

9

132651A1

FITTING

at manifold

1шт.

10

132628A1

O-RING

air compressor

1шт.

11

132378A1

BOLT,Hex Flg, M10 x 20mm

hex flange 10 x 20 mm

1шт.

12

132669A1

BOLT,Hex Flg, M10 x 85mm

hex, flange 10 x 85 mm

3шт.

13

134725A1

UNLOADING TUBE

unloader

1шт.

14

132658A1

BOLT,M18 x 28mm

BOLT, EYE 18 x 28 mm unloader tube

1шт.

15

132639A1

GASKET

18 mm eyebolt

2шт.

16

132649A1

FITTING

bulkhead

1шт.

17

134722A1

TUBE

outlet

1шт.

18

132659A1

BOLT,M24 x 36mm

BOLT, EYE 24 x 36 mm

1шт.

19

132640A1

GASKET

24 mm eyebolt

2шт.

20

132557A1

BRACKET

tube support

1шт.

21

132622A1

WASHER

lock 14 mm

1шт.

22

132634A1

NUT

hex jam 14 mm

1шт.

23

132621A1

WASHER

lock 20 mm

1шт.

24

132633A1

NUT

hex jam 20 mm

1шт.

25

132674A1

BOLT,Hex Flg, M12 x 35mm

hex flange 12 x 35 mm

2шт.

26

132624A1

WASHER

flat 12 mm

1шт.

27

132595A1

PIPE

suction from air cleaner

1шт.

28

132644A1

FITTING

straight

1шт.

29

132638A1

GASKET

27 mm adapter

1шт.

30

132574A1

AIR HOSE

Suction at Air Cleaner

1шт.

31

132292A1

CLAMP

30 mm diameter suction hose

2шт.

32

132654A1

CLIP

P-style 20 mm

2шт.

33

132626A1

STAY

SUPPORT clamp

2шт.

34

132373A1

BOLT,Hex Flg, M6 x 12mm

hex flange 6 x 12 mm

2шт.

34

132673A1

BOLT,Hex Flg, M8 x 35mm

hex, flange 8 x 35 m

3шт.

34

132289A1

BOLT,Hex Flg, M10 x 16mm

hex, flange 10 x 16 mm

1шт.

35

132623A1

WASHER

flat 10.5 mm

2шт.

36

132652A1

CLIP

P-style 20 mm

1шт.
