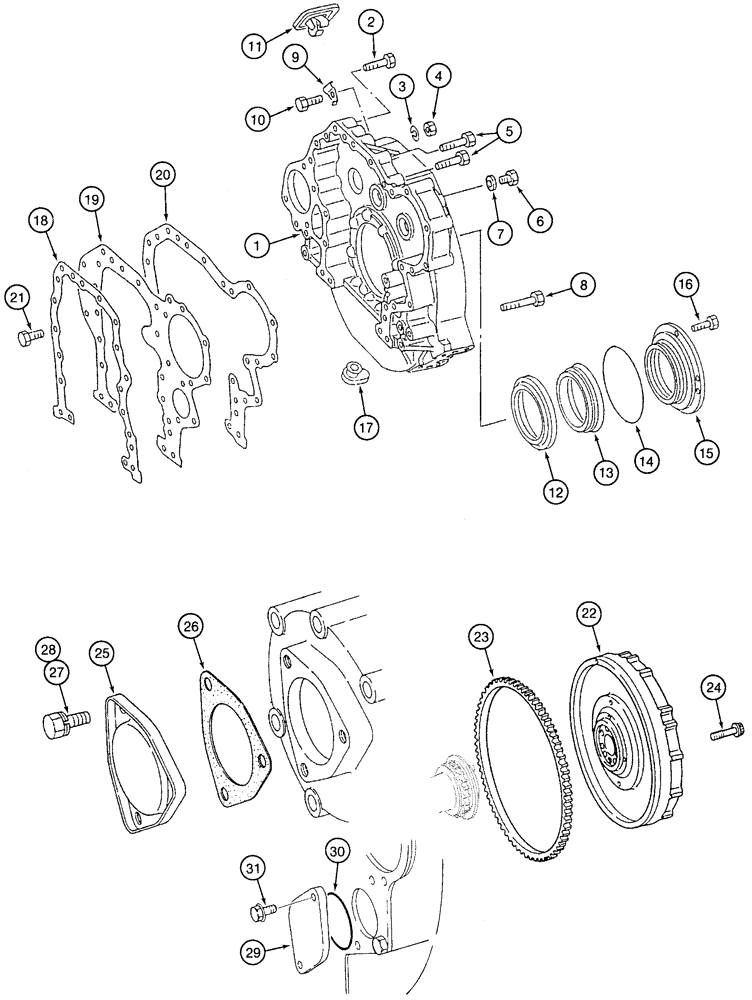

Запчасти Case 9050 (2-48) - FLYWHEEL AND HOUSING (02) - ENGINE

1

240061A1

HOUSING

flywheel

1шт.

2

132452A1

BOLT,Hex Flg, M12 x 60mm

hex flange 12 x 60 mm

2шт.

3

132427A1

WASHER

lock 6 mm

1шт.

4

132434A1

WHEEL NUT

6mm

1шт.

5

132452A1

BOLT,Hex Flg, M12 x 60mm

hex flange 12 x 60 mm

2шт.

6

132430A1

PLUG

16 mm, Includes: Ref. 7

1шт.

7

132412A1

GASKET

special 16 mm

1шт.

8

132436A1

BOLT,Hex Flg, M12 x 90mm

hex flange 12 x 90 mm

8шт.

9

132414A1

INDICATOR

timing

1шт.

10

132438A1

BOLT,Hex, M6 x 25mm

hex 6 x 25 mm

1шт.

11

132403A1

COVER

timing pointer

1шт.

12

132456A1

RING

SLINGER oil rear

1шт.

13

132459A1

SEAL

rear

1шт.

14

132432A1

O-RING

seal retainer, 179 mm

1шт.

15

132426A1

RETAINER

oil seal

1шт.

16

132442A1

BOLT,M8 x 16mm, W/ Wshr

with captive washer 8 x 16 mm

4шт.

17

132428A1

PLUG

rubber 29 mm

1шт.

18

132407A1

GASKET

rear plate cylinder block side

1шт.

19

132413A1

PLATE

flywheel housing rear cylinder block

1шт.

20

132409A1

GASKET

rear plate flywheel housing side, for service only

1шт.

21

132453A1

BOLT,Hex Flg, M12 x 20mm

hex flange 12 x 20 mm

9шт.

22

132454A1

FLYWHEEL

engine, Includes: Ref. 23

1шт.

23

132458A1

RING, FLYWHEEL

143 teeth

1шт.

24

132460A1

BOLT,Hex Flg, M16 x 50.50mm

BOLT hex flange 16 x 50.5 mm

8шт.

25

132405A1

COVER

tachometer drive, Includes: Ref. 26

1шт.

26

132411A1

GASKET

tach drive cover

1шт.

27

132461A1

BOLT,M10 x 20mm, W/ Wshr

with captive washer 10 x 20 mm

2шт.

28

132462A1

BOLT,M10 x 35mm, W/ Wshr

with captive washer 10 x 35 mm

1шт.

29

135149A1

COVER

PLATE cover if used

1шт.

30

135150A1

O-RING

if used

1шт.

31

132385A1

BOLT,Hex Flg, M12 x 25mm

hex flange 12 x 25 mm, if used

2шт.
