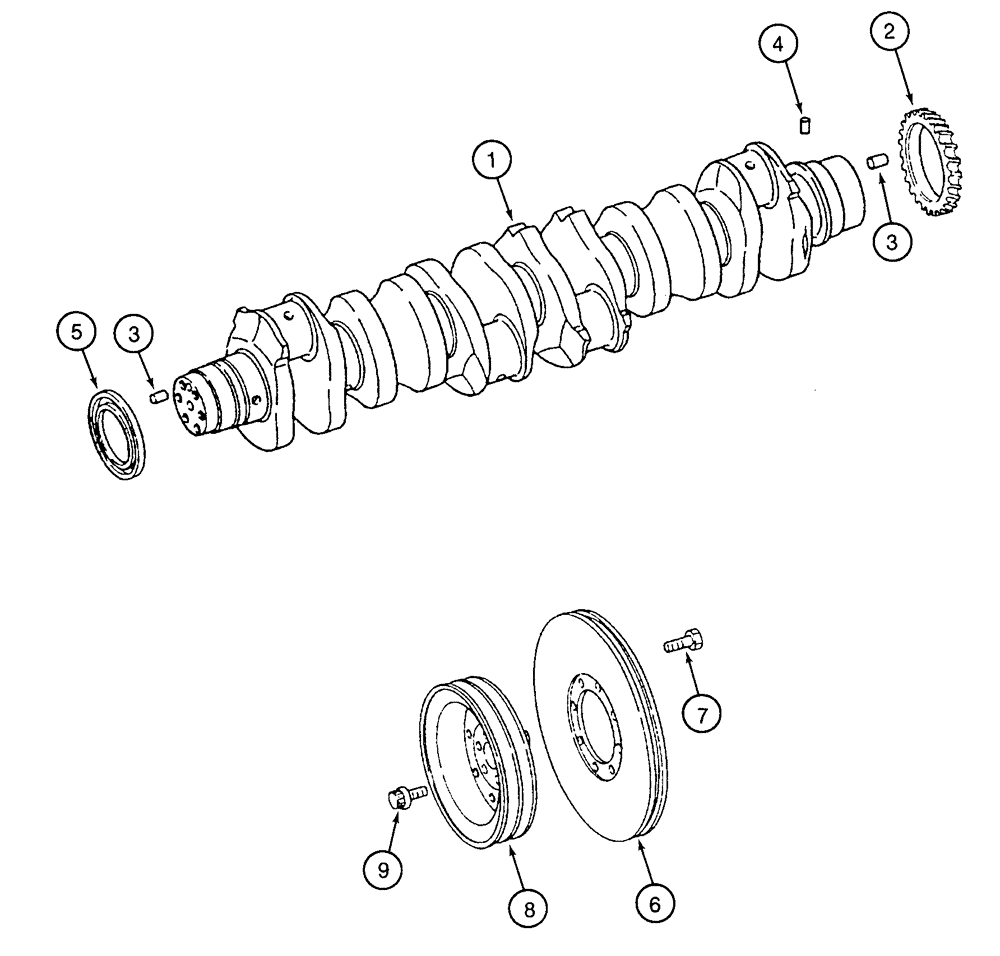

Запчасти Case 9050 (2-46) - CRANKSHAFT (02) - ENGINE

132280A1

CRANKSHAFT

Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

CRANKSHAFT engine

1шт.

2

132528A1

GEAR

crankshaft 63 teeth

1шт.

3

132491A1

DOWEL

PIN 14 x 28 mm

2шт.

4

132492A1

DOWEL

PIN 5 x 11 mm

1шт.

5

133179A1

RING

SLINGER oil front, crankshaft

1шт.

6

132466A1

DAMPER

torsional crankshaft

1шт.

7

132489A1

BOLT,Hex Flg, M12 x 16mm

hex flange 12 x 16 mm

8шт.

8

132479A1

PULLEY

crankshaft

1шт.

9

132490A1

BOLT,Hex Flg, M14 x 33mm

hex flange 14 x 33 mm

6шт.
