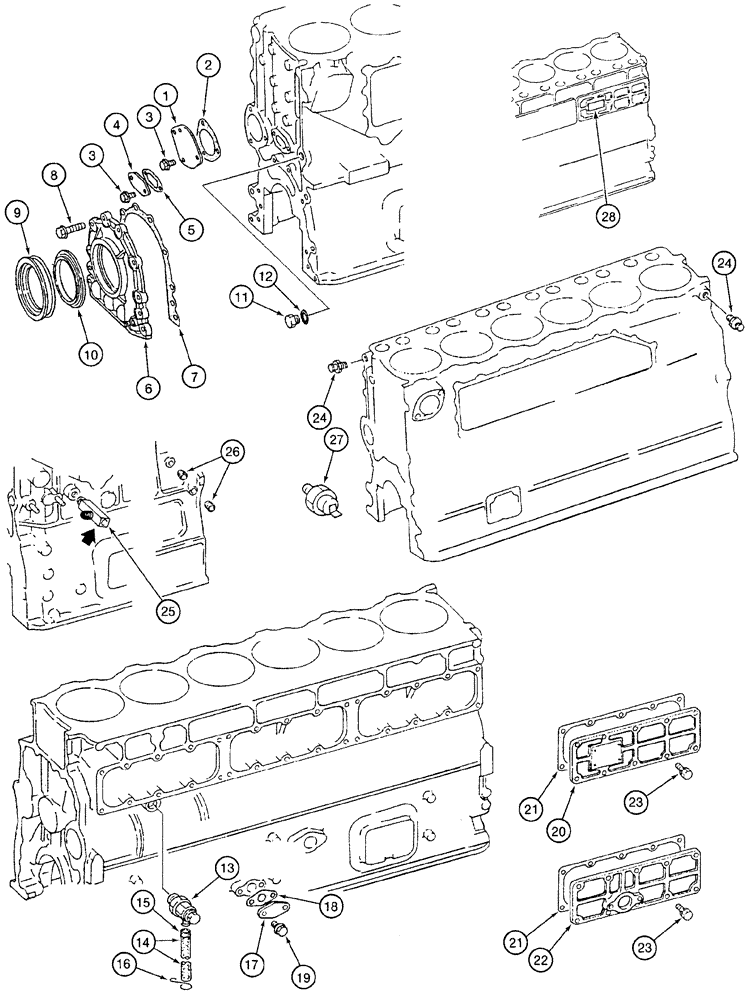

Запчасти Case 9050 (2-44) - CYLINDER BLOCK ATTACHING PARTS, AND ENGINE GASKET KIT (02) - ENGINE

1

133155A1

COVER

cylinder block, camshaft gallery

1шт.

2

133173A1

GASKET

cover

1шт.

3

132378A1

BOLT,Hex Flg, M10 x 20mm

hex flange 10 x 20 mm

5шт.

4

133154A1

COVER

cylinder block

1шт.

5

133174A1

GASKET

cover

1шт.

6

133151A1

COVER

crankshaft end front gear

1шт.

7

133177A1

GASKET

end cover front gear cover

1шт.

8

133171A1

BOLT,Hex, M12 x 30mm

hex flange 12 x 30 mm

8шт.

9

133160A1

OIL SEAL

oil front gear cover

1шт.

10

133179A1

RING

SLINGER oil front gear cover

1шт.

11

133163A1

PLUG

special 27 mm

1шт.

12

132638A1

GASKET

27 mm

1шт.

13

133149A1

COCK

VALVE drain water, block

1шт.

14

133159A1

HOSE

25-5/8 inch (650 mm) long water drain

1шт.

15

133165A1

CLAMP

16 mm diameter drain hose

1шт.

16

133167A1

CLAMP

wire drain hose

1шт.

17

133156A1

COVER

cylinder block

1шт.

18

133176A1

GASKET

oil return tube

1шт.

19

132289A1

BOLT,Hex Flg, M10 x 16mm

hex, flange 10 x 16 mm

2шт.

20

133152A1

COVER

side

1шт.

21

133158A1

GASKET

side cover

3шт.

22

133153A1

COVER

tappet

2шт.

23

133168A1

BOLT,M10 x 30mm, W/ Captive Wshr

with captive washer 10 x 30 mm

1шт.

23

133169A1

BOLT,M10 x 30mm, W/ Captive Wshr

with captive washer 10 x 30 mm

29шт.

24

133178A1

SCREW

lifting, engine

2шт.

25

133183A1

CONNECTOR, ELEC

CONNECTOR special

1шт.

26

133181A1

PLUG

special 1/8 inch PT oil pressure gauge

3шт.

27

H411892

SWITCH

SENDER oil pressure

1шт.

28

240379A1

DECAL

valve clearance, firing order and fuel injecton timing

1шт.

132281A1

GASKET KIT

engine overhaul

1шт.
