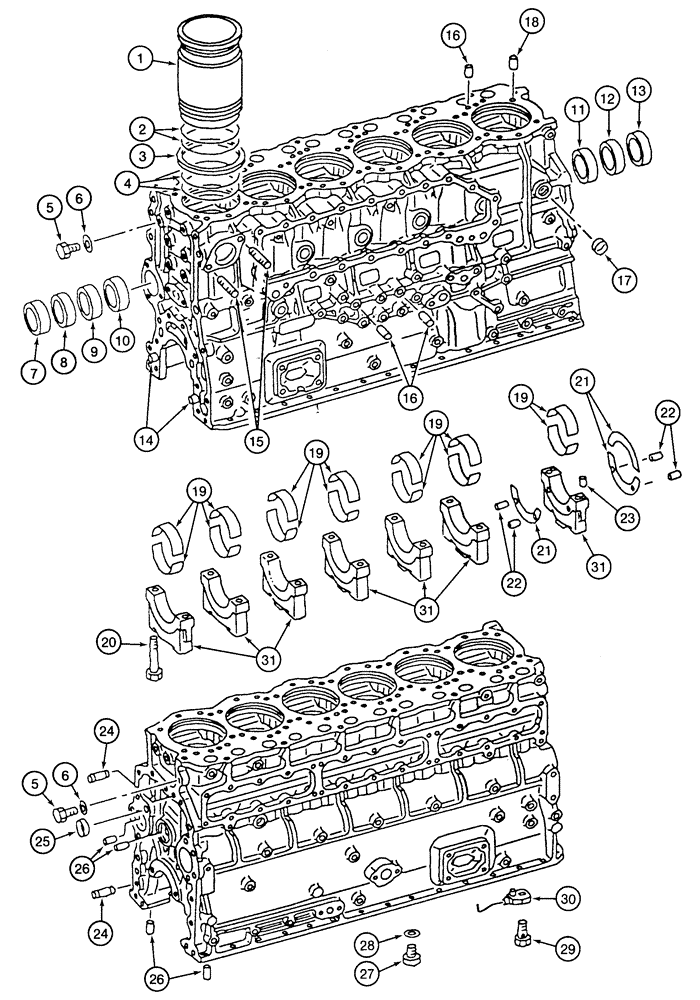

Запчасти Case 9050 (2-42) - CYLINDER BLOCK ASSEMBLY (02) - ENGINE

132276A1

SKELETON ENGINE

short, engine

1шт.

132278A1

SUPPORT

BLOCK service, engine

1шт.

1

132312A1

SLEEVE CYLINDER

6шт.

1

132313A1

SLEEVE CYLINDER

6шт.

1

132314A1

SLEEVE CYLINDER

6шт.

2

240049A1

O-RING

cylinder liner

12шт.

3

132311A1

SEAL

cyllinder liner rubber

6шт.

4

240050A1

O-RING

cylinder liner

12шт.

5

132317A1

PLUG

10 mm

2шт.

6

132342A1

GASKET

10 mm plug

2шт.

7

132333A1

CAMSHAFT BEARING

camshaft bearing 65 x 26 mm

1шт.

8

132334A1

CAMSHAFT BEARING

camshaft bearing 65.3 x 26 mm

1шт.

9

132335A1

CAMSHAFT BEARING

camshaft bearing 65.5 x 26 mm

1шт.

10

132336A1

CAMSHAFT BEARING

camshaft bearing 65.5 x 26 mm

1шт.

11

132337A1

CAMSHAFT BEARING

camshaft bearing 65.8 x 26 mm

1шт.

12

132338A1

CAMSHAFT BEARING

camshaft bearing 72 x 26 mm

1шт.

13

132339A1

CAMSHAFT BEARING

camshaft bearing 72 x 34 mm

1шт.

14

132325A1

DOWEL

PIN 12 x 24 mm

2шт.

15

132316A1

STUD

10 x 30 mm

2шт.

16

132323A1

DOWEL

PIN 10 x 20 mm

14шт.

17

132300A1

CAP

PLUG freeze 25 mm

1шт.

18

132320A1

PLUG

10 mm

1шт.

19

132347A1

CRANKSHAFT BEARING

BEARING, CON. ROD set, crankshaft standard

1шт.

19

132343A1

CRANKSHAFT BEARING

BEARING, CON. ROD KIT upper and lower 0.25 mm undersize

1шт.

19

132344A1

CRANKSHAFT BEARING

BEARING, CON. ROD set, crankshaft 0.50 mm undersize

1шт.

19

132345A1

CRANKSHAFT BEARING

BEARING, CON. ROD set, crankshaft 0.75 mm undersize

1шт.

19

132346A1

CRANKSHAFT BEARING

BEARING, CON. ROD set, crankshaft 1.00 mm undersize

1шт.

20

132340A1

BOLT,M18 x 136mm

hex flange 18 x 136 mm bearing caps

14шт.

21

132348A1

PLATE

thrust, crankshaft standard

3шт.

21

132351A1

PLATE

thrust, crankshaft 0.15 mm oversize

3шт.

21

132353A1

PLATE

thrust, crankshaft 0.30 mm oversize

3шт.

21

132354A1

PLATE

thrust , crankshaft 0.45 mm oversize

3шт.

22

132322A1

SPRING

PIN 5 x 10 mm

6шт.

23

132327A1

DOWEL

PIN 8 x 25 mm

2шт.

24

132324A1

DOWEL

PIN 12 x 34 mm

2шт.

25

132331A1

CAP

28 mm freeze plug

1шт.

26

1271835C1

AXLE PIN

PIN 8 x 18 mm

4шт.

27

132318A1

PLUG

20 mm

2шт.

28

132341A1

SEAL

20 mm plug

2шт.

29

132310A1

PLUG

VALVE check piston lubricant

6шт.

30

132315A1

BODY

JET oil cylinder block

6шт.

31

NSS

NOT SOLD SEPARAT

CAP crankshaft bearing order short block or service block at top of parts list.

1шт.
