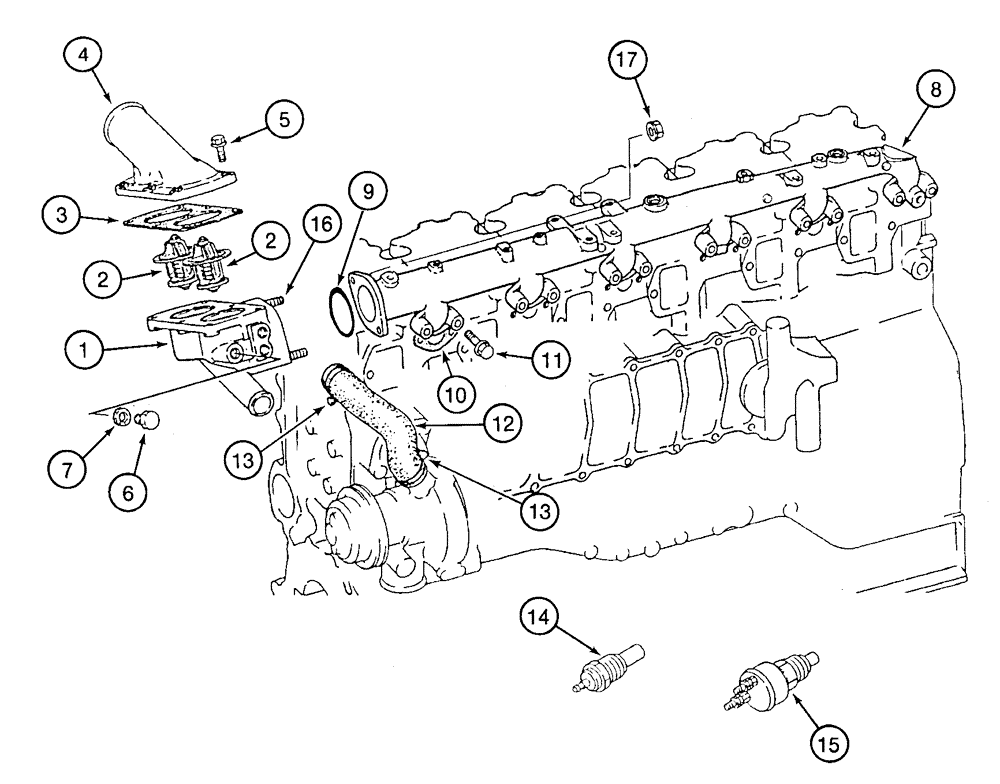

Запчасти Case 9050 (2-38) - WATER PIPE AND THERMOSTAT (02) - ENGINE

1

134819A1

MANIFOLD

HOUSING thermostat

1шт.

240289A1

THERMOSTAT

KIT and gasket, Includes: Ref. 2 & 3

1шт.

2

NSS

NOT SOLD SEPARAT

THERMOSTAT water, Includes: Ref. 3

2шт.

3

134824A1

GASKET

thermostat housing

1шт.

4

134820A1

COVER

thermostat housing

1шт.

5

132500A1

BOLT,Hex Flg, M10 x 25mm

hex flange 10 x 25 mm

6шт.

6

132430A1

PLUG

16 mm thermostat housing

1шт.

7

132412A1

GASKET

special 16 mm

1шт.

8

134826A1

MANIFOLD ASSY

PIPE water outlet

1шт.

9

134835A1

O-RING

1шт.

10

240291A1

GASKET

water pipe was 134831A1

6шт.

11

134834A1

BOLT,Hex, M10 x 45mm

hex flange 10 x 45 mm

12шт.

12

134825A1

HOSE

special

1шт.

13

134833A1

CLIP

CLAMP adjustable bypass hose

2шт.

14

134836A1

UNIT

GAUGE water temperature

1шт.

15

134837A1

SWITCH

water temperature 105 degrees Centigrade

1шт.

16

134827A1

STUD

10 x 22 mm

2шт.

17

134814A1

JAM NUT

hex jam 16 mm

2шт.
