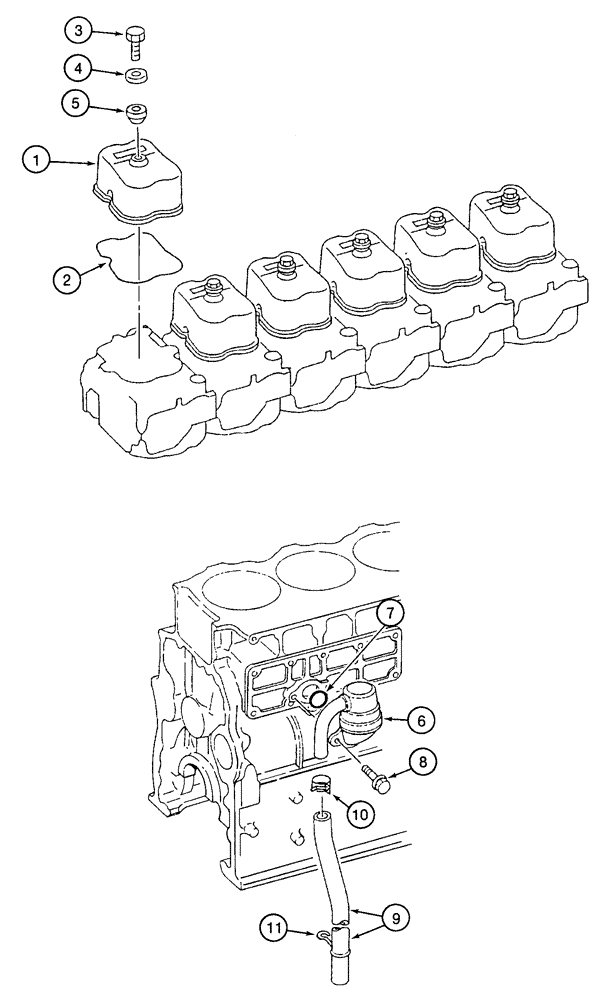

Запчасти Case 9050 (2-36) - CYLINDER HEAD COVERS AND ENGINE BREATHER (02) - ENGINE

1

132282A1

COVER

cylinder head

6шт.

2

132283A1

O-RING

cylinder head cover

6шт.

3

132286A1

BOLT,Hex, M8 x 28mm

hex 8 x 28 mm

6шт.

4

132285A1

WASHER

flat 8.5 mm

6шт.

5

1273078C1

SEAL ASSY.

oil rubber

6шт.

6

132287A1

BREATHER

engine

1шт.

7

132290A1

O-RING

breather

1шт.

8

132289A1

BOLT,Hex Flg, M10 x 16mm

hex, flange 10 x 16 mm

2шт.

9

132288A1

HOSE

39-3/8 inch (1000 mm) long breather

1шт.

10

132292A1

CLAMP

30 mm diameter breather hose

1шт.

11

132291A1

CLIP

breather hose

1шт.
