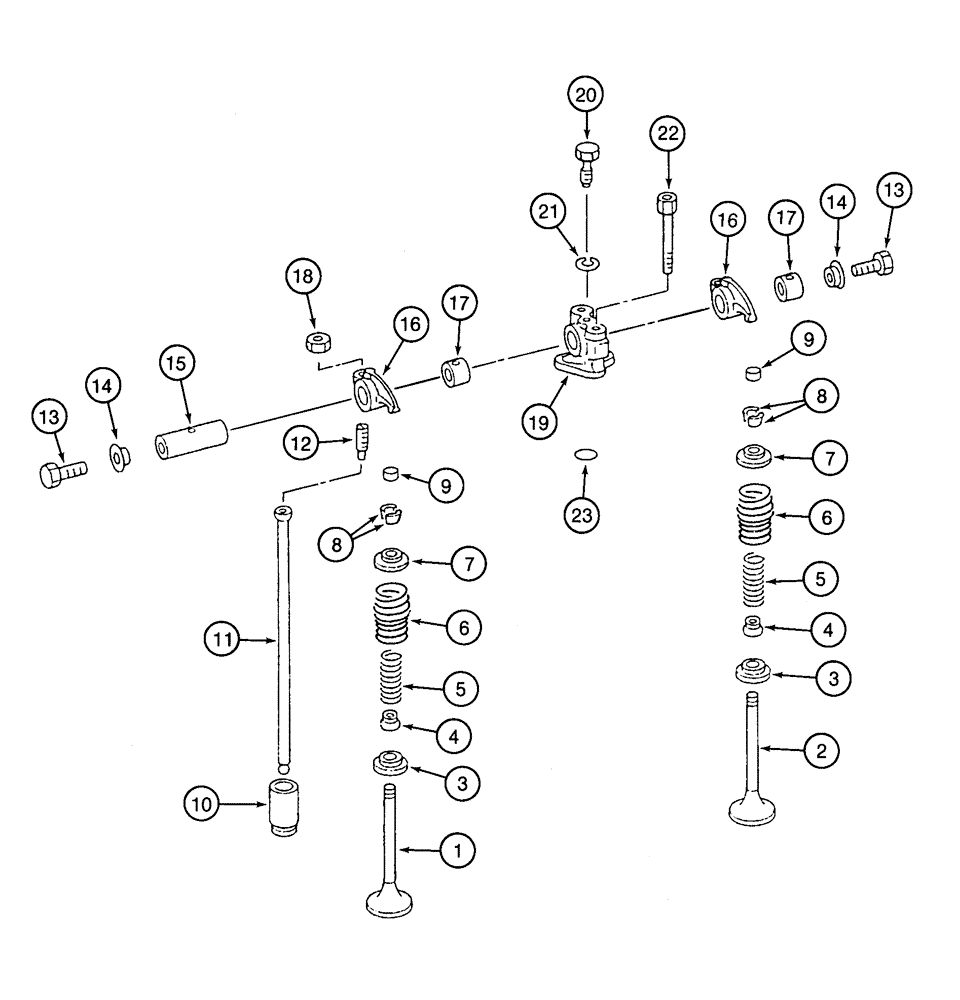

Запчасти Case 9050 (2-34) - VALVE MECHANISM (02) - ENGINE

1

132517A1

VALVE

inlet

6шт.

2

132524A1

VALVE

exhaust

6шт.

3

132518A1

SPRING SEAT

valve spring lower

12шт.

4

132526A1

SEAL

rubber valve stem

12шт.

5

132520A1

SPRING

valve inner

12шт.

6

132522A1

SPRING

valve outer

12шт.

7

132515A1

RETAINER

valve spring upper

12шт.

8

132527A1

WOODRUFF KEY

LOCK spring retainer

24шт.

9

132504A1

CAP

valve 12 mm

12шт.

10

132498A1

TAPPET

valve pushrod

12шт.

11

132513A1

PUSH ROD

valve

12шт.

12

132503A1

SCREW,M10 x 45mm

special 10 x 45 mm

12шт.

13

132506A1

BOLT,Hex, M6 x 10mm, W/ Wshr

hex, with captive washer 6 x 10 mm

12шт.

14

132512A1

PLATE

thrust rocker shaft

12шт.

15

132510A1

SHAFT

rocker arm

6шт.

16

132514A1

ROCKER

ARM includes bushing inlet and exhaust valves

12шт.

17

132505A1

BUSHING

rocker arm

12шт.

18

132509A1

NUT

10 mm

12шт.

19

132511A1

BRACKET

rocker arm

6шт.

20

132501A1

SCREW,Adj, M8 x 17mm

adjusting 8 x 17 mm

6шт.

21

132502A1

WASHER

lock 8 mm

6шт.

22

132507A1

BOLT,M10 x 84mm

special 10 x 84 mm rocker arm bracket

6шт.

23

132508A1

O-RING

bracket

6шт.
