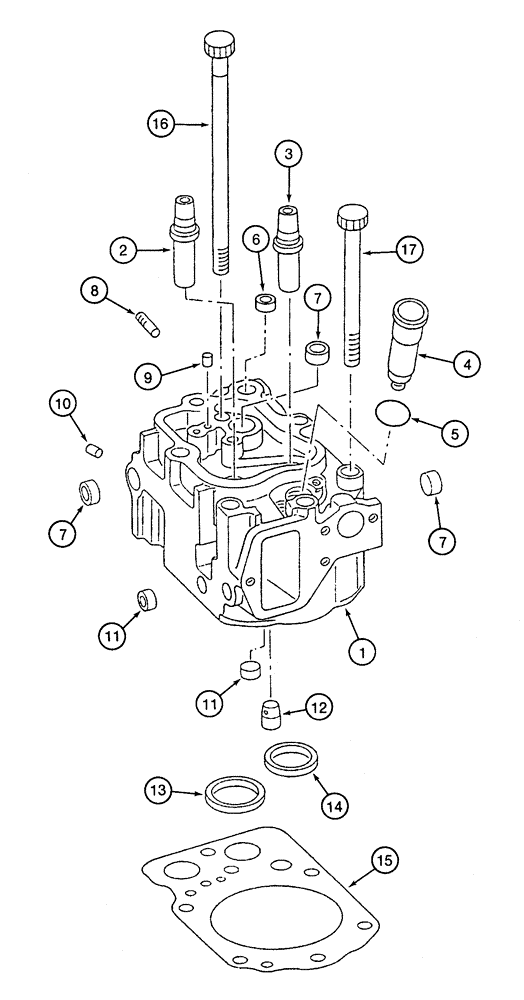

Запчасти Case 9050 (2-32) - CYLINDER HEAD (02) - ENGINE

132277A1

HEAD (CYLINDER)

Includes: Ref. 1 - 14

6шт.

1

NSS

NOT SOLD SEPARAT

HEAD cylinder

1шт.

2

132308A1

GUIDE

intake valve

1шт.

3

132309A1

GUIDE

exhaust valve

1шт.

4

132294A1

FUEL TUBE

holder, fuel injector

1шт.

5

132299A1

O-RING

1шт.

6

132301A1

CAP

PLUG freeze 18 mm

1шт.

7

132300A1

CAP

PLUG freeze 25 mm

3шт.

8

132296A1

STUD

cylinder head 10 x 43 mm

4шт.

9

132298A1

SPRING

PIN roll 6 x 12 mm

1шт.

10

132297A1

PLUG

special 11 mm

1шт.

11

132302A1

CAP

PLUG freeze 20 mm

2шт.

12

132293A1

ORIFICE RING

NOZZLE water director

1шт.

13

132307A1

SEAT, VALVE

intake valve

1шт.

14

132306A1

SEAT, VALVE

exhaust valve

1шт.

15

132295A1

CYLINDER HEAD GASKET

cylinder head

6шт.

16

132305A1

BOLT,M14 x 249mm

hex flange 14 x 249 mm

6шт.

17

132303A1

BOLT,M14 x 181mm

hex flange 14 x 181 mm

36шт.
