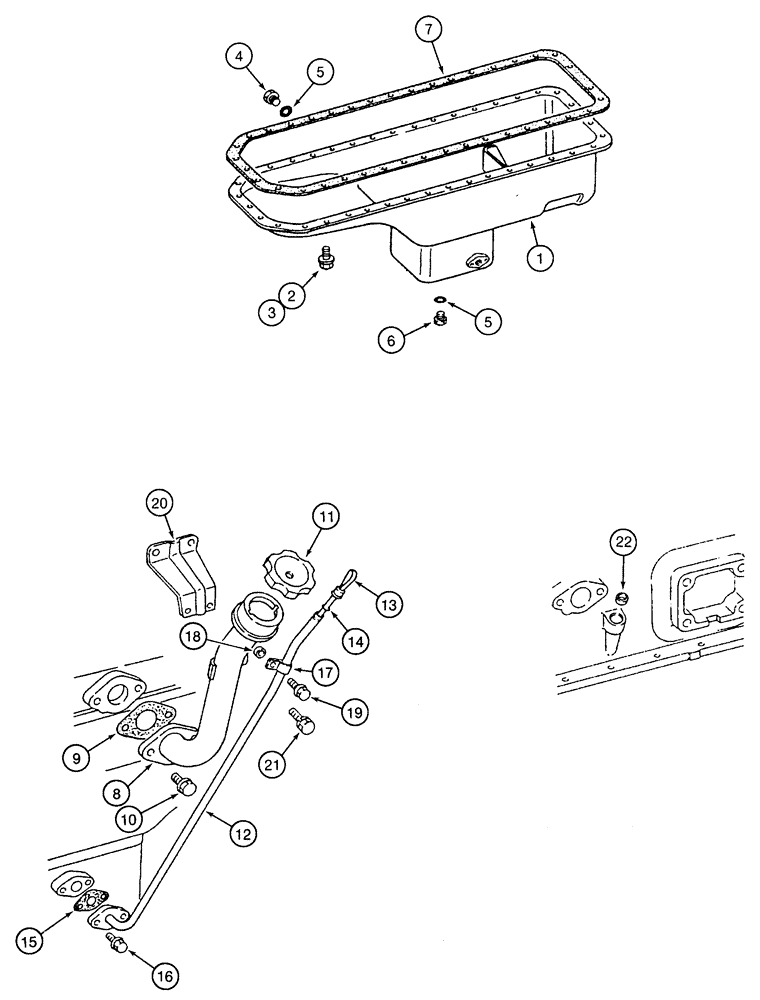

Запчасти Case 9050 (2-30) - OIL PAN, FILLER AND DIPSTICK (02) - ENGINE

1

137054A1

PAN ASSEMBLY oil engine, has two ports (for ref. 4 and ref. 6 plugs)

1шт.

1

240051A1

PAN, ENGINE OIL

PAN, OIL bottom ported only for ref. 6 plug

1шт.

2

132361A1

BOLT,Hex Flg, M10 x 18mm

hex flange 10 x 18 mm

37шт.

3

132364A1

BOLT,Hex, M10 x 25mm, W/ Wshr

hex, with captive washer 10 x 25 mm

2шт.

4

132365A1

PLUG hex 20 mm if used

1шт.

5

132359A1

OIL PAN GASKET SET

20 mm plug, if used

1шт.

5

133291A1

O-RING

seal

1шт.

6

CASH410605

PLUG,18mm OD x 1.5 Thd Pitch

hex 18 mm

1шт.

7

132356A1

OIL PAN GASKET SET

oil pan

1шт.

8

132368A1

FILLER

TUBE oil fill

1шт.

9

132396A1

GASKET

cover

1шт.

10

132378A1

BOLT,Hex Flg, M10 x 20mm

hex flange 10 x 20 mm

2шт.

11

1271914C1

CYLINDER END CAP

CAP oil filler

1шт.

12

132371A1

TUBE

dipstick

1шт.

13

132369A1

DIPSTICK

oil

1шт.

14

132399A1

O-RING

dipstick

1шт.

15

132394A1

GASKET

special

1шт.

16

132376A1

BOLT,Hex, M10 x 20mm, W/ Wshr

hex, with captive washer 10 x 20 mm

2шт.

16

240060A1

BOLT

hex, with captive washer 10 x 35 mm

1шт.

17

132398A1

CLAMP

special 12.2 mm dia dipstick tube

1шт.

18

132392A1

SPACER

clamp

1шт.

19

132373A1

BOLT,Hex Flg, M6 x 12mm

hex flange 6 x 12 mm

3шт.

19

132374A1

BOLT,Hex Flg, M6 x 20mm

hex flange 6 x 20 mm

1шт.

20

132366A1

BRACKET

oil fill tube

1шт.

21

132390A1

SPECIAL BOLT

hex flange

1шт.

22

132367A1

CAP

PLUG special 15 mm at oil fill tube

1шт.
