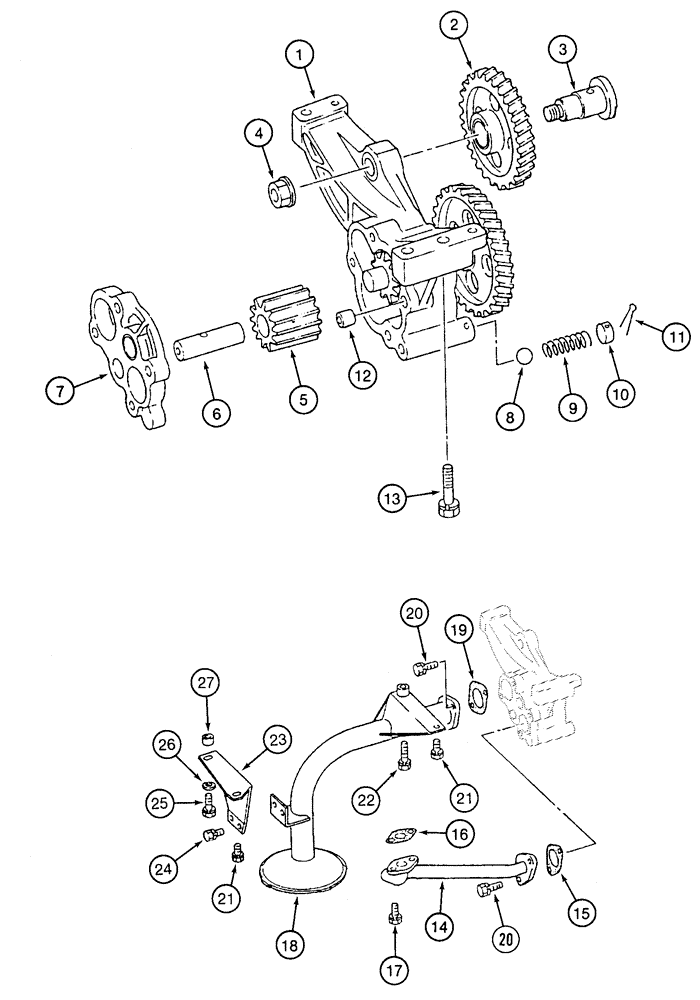

Запчасти Case 9050 (2-28) - OIL PUMP AND STRAINER (02) - ENGINE

133226A1

PUMP

ASSEMBLY engine oil, Includes: Ref. 1 - 12

1шт.

1

133227A1

GUARD

KIT pump, case and gear

1шт.

2

133230A1

GEAR, IDLER

GEAR,IDLE idler

1шт.

3

133234A1

SHAFT

idler gear

1шт.

4

133228A1

COVER ASSY

NUT hex flange 12 mm

1шт.

5

133229A1

GEAR

driven

1шт.

6

133231A1

SHAFT

driven gear

1шт.

7

133228A1

COVER ASSY

oil pump

1шт.

8

133241A1

BALL

steel 5/8 inch diameter

1шт.

9

133235A1

SPRING

compression type

1шт.

10

133233A1

SEAT, VALVE

relief valve

1шт.

11

133237A1

DOWEL

PIN split 4 x 35 mm

1шт.

12

133239A1

BUSHING

special

1шт.

13

133240A1

BOLT,Hex, M10 x 45mm, W/ Captive Wshr

hex, with captive waser 10 x 45 mm

3шт.

14

133236A1

TUBE

outlet

1шт.

15

133246A1

GASKET

special at oil pump

1шт.

16

133245A1

GASKET

special at strainer

1шт.

17

133250A1

BOLT,Hex, M12 x 25mm, W/ Captive Wshr

hex, with captive washer 12 x 25 mm

2шт.

18

133242A1

STRAINER ASSY.

oil pump

1шт.

19

133244A1

GASKET

special

1шт.

20

133240A1

BOLT,Hex, M10 x 45mm, W/ Captive Wshr

hex, with captive washer 10 x 45 mm

4шт.

21

133252A1

BOLT,Hex, M10 x 20mm, W/ Captive Wshr

hex, with captive washer 10 x 20 mm

2шт.

22

133253A1

BOLT,Hex, M10 x 35mm, W/ Captive Wshr

hex, with captive washer 10 x 35 mm

1шт.

23

133243A1

STAY

BRACKET oil strainer

1шт.

24

133251A1

BOLT,Hex, M10 x 25mm, W/ Captive Wshr

hex, with captive washer 10 x 25 mm

2шт.

25

133253A1

BOLT,Hex, M10 x 35mm, W/ Captive Wshr

hex, with captive washer 10 x 35 mm

1шт.

26

133247A1

WASHER

flat 10 mm

1шт.

27

133248A1

SPACER

bracket 17 mm bracket mounting

1шт.
