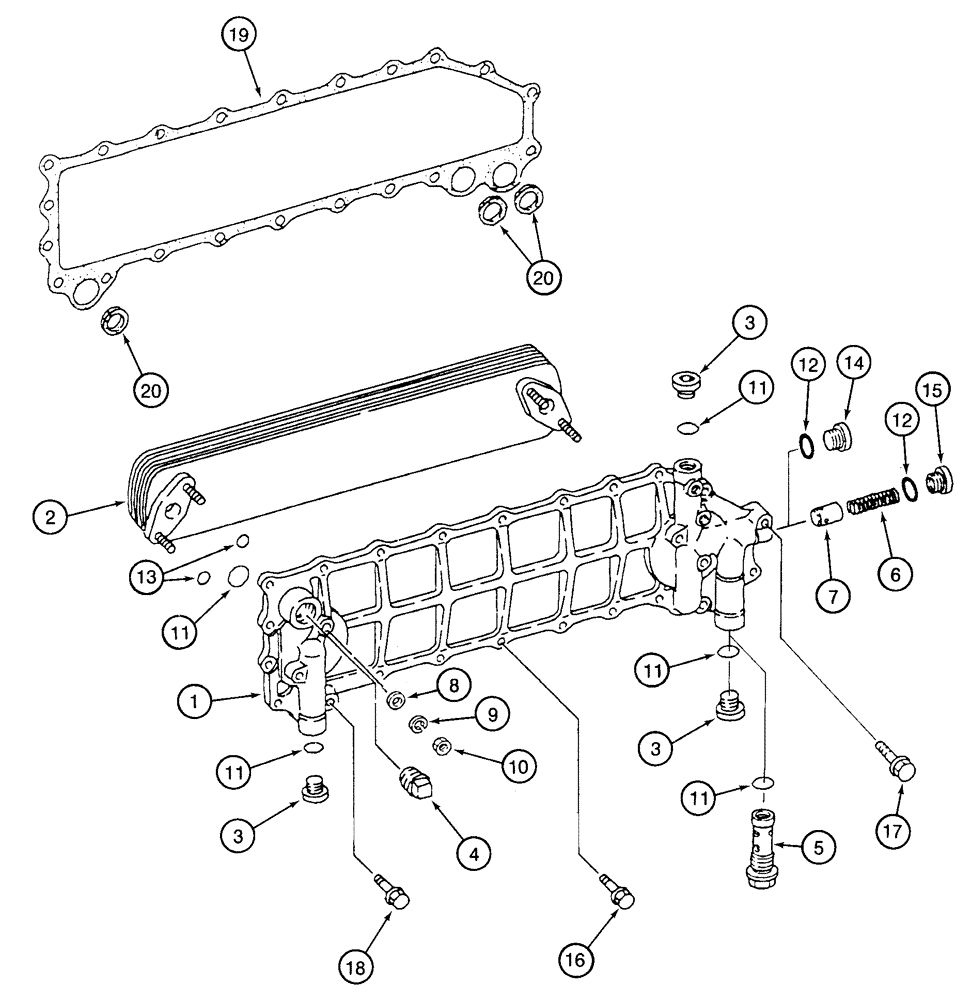

Запчасти Case 9050 (2-26) - ENGINE OIL COOLER (02) - ENGINE

133279A1

COOLER ASSEMBLY engine oil includes ref. 5 cartridge type bypass valve (no longer used, replaced by 240086A1), Includes: Ref. 1 - 15

1шт.

240086A1

COOLER ASSY.

engine oil includes ref. 6 spring and ref. 7 bypass valve, does not include ref. 5 cartridge, Includes: Ref. 1 - 15

1шт.

1

240090A1

COVER

oil cooler

1шт.

2

133280A1

ELEMENT

oil cooler 133279A1 cooler assembly

1шт.

2

240093A1

ELEMENT

oil cooler 240086A1 cooler assembly

1шт.

3

133282A1

PLUG

27 mm hex drive, oil cooler (2-3)

2шт.

4

133283A1

PLUG

square head 3/4 inch PT

1шт.

5

133284A1

VALVE

oil cooler bypass cartridge, 133279A1 cooler assembly

1шт.

6

240094A1

SPRING

compression type bypass valve, 240086A1 cooler assembly

1шт.

7

240095A1

VALVE

oil cooler bypass 240086A1 cooler assembly

1шт.

8

133247A1

WASHER

flat 10 mm if used

4шт.

9

132620A1

WASHER

lock 10 mm if used

4шт.

10

240096A1

NUT

hex 10 mm

4шт.

11

133289A1

O-RING

plug, 25 mm (3-5)

3шт.

11

240097A1

O-RING

plug, 30 mm, if used

2шт.

12

240098A1

O-RING

bypass valve plug, 18 mm

1шт.

13

133291A1

O-RING

cover, 14 mm

4шт.

14

133292A1

PLUG

port 20 mm 133279A1 cooler assembly

1шт.

15

240099A1

PLUG

20 mm bypass valve, 240086A1 cooler assembly

1шт.

16

133294A1

BOLT,Hex Flg, M10 x 30mm

hex flange 10 x 30 mm

1шт.

16

132500A1

BOLT,Hex Flg, M10 x 25mm

hex flange 10 x 25 mm

19шт.

17

133295A1

BOLT,Hex Flg, M10 x 50mm

hex flange 10 x 50 mm

1шт.

18

240100A1

BOLT

hex flange 10 x 42 mm

1шт.

19

133281A1

GASKET

cover, oil cooler

1шт.

20

133285A1

O-RING

gasket

3шт.
