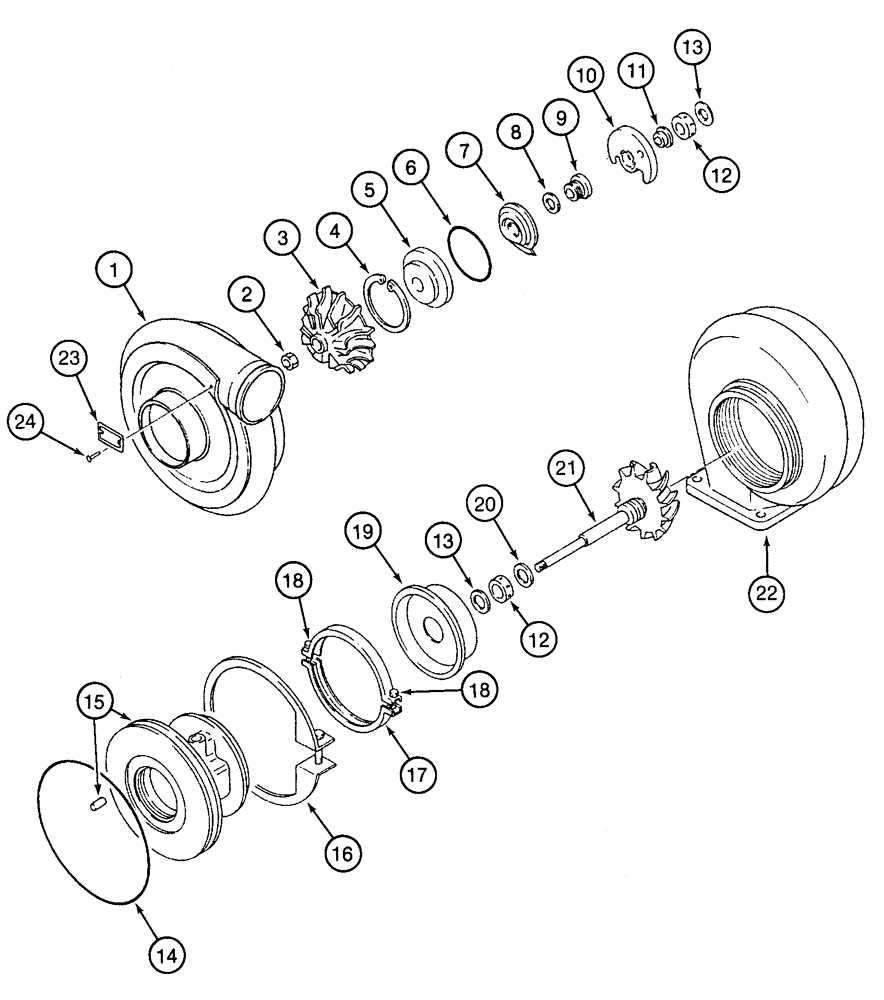

Запчасти Case 9050 (2-22) - TURBOCHARGER ASSEMBLY (02) - ENGINE

134925A1

ASSEMBLY

TURBOCHARGER engine, Includes: Ref. 1 - 24

1шт.

1

134935A1

COVER

HOUSING compressor

1шт.

2

134956A1

SPECIAL NUT

special

1шт.

3

134948A1

ROTOR

compressor

1шт.

4

134953A1

RING, SNAP

RING SNAP retaining oil baffle

1шт.

5

134939A1

BAFFLE

oil

1шт.

6

134964A1

O-RING

1шт.

7

134936A1

SLINGER

oil

1шт.

8

134944A1

RING

seal

1шт.

9

134951A1

SLEEVE

oil slinger

1шт.

10

134929A1

THRUST BEARING

thrust

1шт.

11

134943A1

RING

thrust

1шт.

12

134927A1

BEARING

BEARING shaft

2шт.

13

134954A1

RING, SNAP

RING SNAP retaining bearing

2шт.

14

134965A1

O-RING

bearing housing

1шт.

15

134937A1

HOUSING, BEARING

bearing

1шт.

16

134955A1

RING, SNAP

RING SNAP retaining bearing housing

1шт.

17

134933A1

COUPLING

housing, Includes: Ref. 18

1шт.

18

134977A1

BOLT

Coupling

2шт.

19

134942A1

PLATE

SHIELD heat turbine

1шт.

20

134945A1

RING

seal turbine

1шт.

21

134947A1

SHAFT

& ROTOR, turbine

1шт.

22

134938A1

HOUSING

turbine

1шт.

23

134941A1

PLATE

name

1шт.

24

134952A1

RIVET

name plate

2шт.
