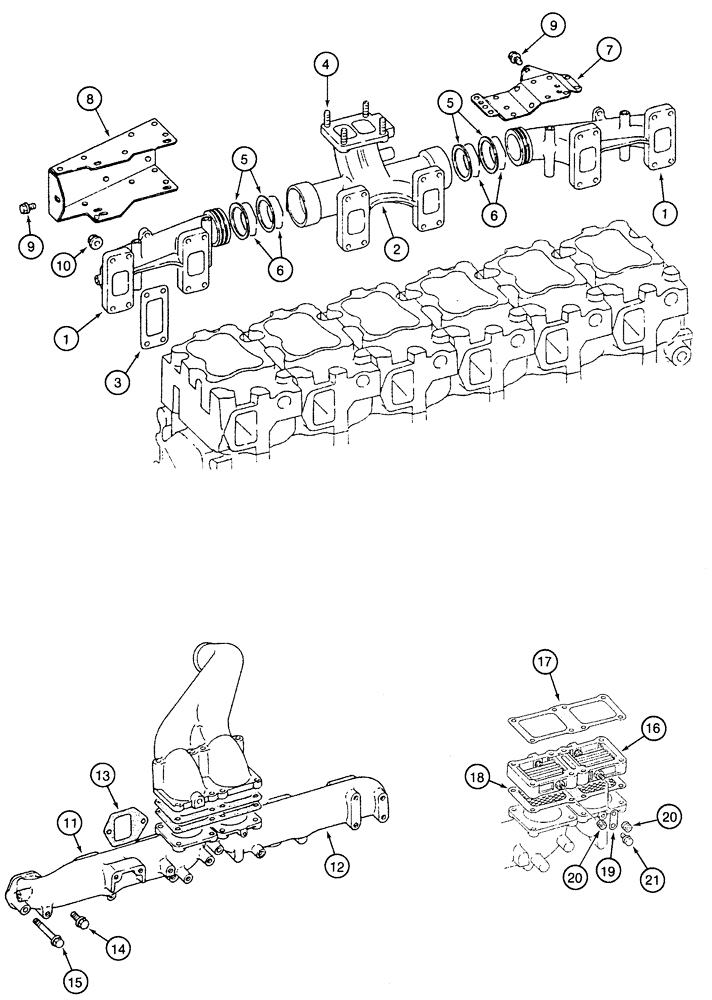

Запчасти Case 9050 (2-18) - MANIFOLDS, INTAKE & EXHAUST (02) - ENGINE

1

134860A1

MANIFOLD

exhaust outer

2шт.

2

134864A1

MANIFOLD

exhaust center

1шт.

3

134861A1

MANIFOLD GASKET

manifold, exhaust

6шт.

4

134865A1

STUD

special 10 x 30 mm center manifold, exhaust

4шт.

5

134866A1

SEALING RING

RING seal thick, exhaust manifold

4шт.

6

134867A1

SEALING RING

RING seal thin, exhaust manifold

4шт.

7

134862A1

INSULATOR

heat, exhaust manifold

1шт.

8

134863A1

INSULATOR

heat, exhaust manifold

1шт.

9

134869A1

BOLT,M8 x 12mm, w/ Captive Wshr

with captive washer 8 x 12 mm, exhaust manifold

8шт.

10

134868A1

FLANGE NUT

hex flange, self-locking 10 mm, exhaust manifold

24шт.

11

134856A1

MANIFOLD

intake front

1шт.

12

134857A1

MANIFOLD

intake rear

1шт.

13

134855A1

MANIFOLD GASKET

manifold, intake

6шт.

14

132500A1

BOLT,Hex Flg, M10 x 25mm

hex flange 10 x 25 mm, intake manifold

6шт.

15

134859A1

BOLT

hex flange 10 x 95 mm, intake manifold

6шт.

16

135029A1

HEATER ASSY.

air intake, intake manifold

1шт.

17

135030A1

GASKET

heater, intake manifold

1шт.

18

135031A1

GASKET

heater, intake manifold

1шт.

19

135032A1

PLATE

ground connection heater, intake manifold

1шт.

20

135033A1

FLANGE NUT

hex flange 6 mm special, intake manifold

2шт.

21

135034A1

BOLT

hex flange 8 x 10 mm, intake manifold

1шт.
