(2-16) - WATER PUMP ASSEMBLY AND BELTS

Запчасти Case 9050 (2-16) - WATER PUMP ASSEMBLY AND BELTS (02) - ENGINE

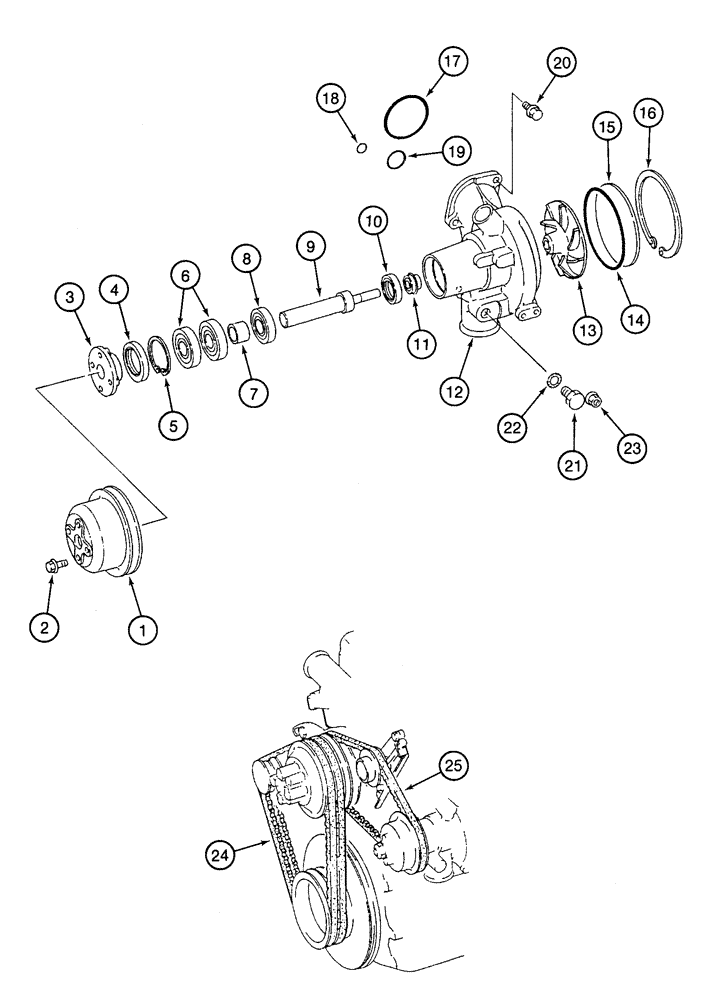

Схема запчастей Case 9050 - (2-16) - WATER PUMP ASSEMBLY AND BELTS (02) - ENGINE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

134748A1

PULLEY

water pump

1шт.

2

132378A1

BOLT,Hex Flg, M10 x 20mm

hex flange 10 x 20 mm

4шт.

134735A1

PUMP, WATER

Includes: Ref. 3 - 16

1шт.

3

134744A1

FLANGE

water pump

1шт.

4

134752A1

OIL SEAL

oil pump shaft

1шт.

Part of Kit P/N 134741A1

1шт.

5

134770A1

RING, SNAP

RING SNAP retaining bearings

1шт.

6

134736A1

BALL BEARING

ball outer

2шт.

Part of Kit P/N 134741A1

1шт.

7

134767A1

SPACER

20 mm bearings

1шт.

8

134737A1

BALL BEARING

ball inner

1шт.

Part of Kit P/N 134741A1

1шт.

9

134750A1

SHAFT

pump

1шт.

Part of Kit P/N 134741A1

1шт.

10

134753A1

OIL SEAL

oil pump shaft, inner

1шт.

Part of Kit P/N 134741A1

1шт.

11

134749A1

SEAL

unitized shaft

1шт.

12

134742A1

BODY

HOUSING pump

1шт.

13

134746A1

IMPELLER

pump

1шт.

Part of Kit P/N 134741A1

1шт.

14

134762A1

O-RING

135 mm dia impeller

1шт.

Part of Kit P/N 134741A1

1шт.

15

134743A1

COVER

pump

1шт.

16

134769A1

RING, SNAP

RING SNAP retaining cover

1шт.

17

134756A1

O-RING

75 mm

1шт.

Part of Kit P/N 134741A1

1шт.

18

133291A1

O-RING

14 mm

1шт.

Part of Kit P/N 134741A1

1шт.

19

134757A1

O-RING

29 mm

1шт.

Part of Kit P/N 134741A1

1шт.

20

132500A1

BOLT,Hex Flg, M10 x 25mm

hex flange 10 x 25 mm

2шт.

21

132430A1

PLUG

16 mm water pump

1шт.

22

132412A1

GASKET

special 16 mm

1шт.

23

134763A1

NUT

hex flange 10 mm

1шт.

24

134747A1

V-BELT

fan and alternator drive

1шт.

25

134755A1

BELT

V-type 1090 mm long water pump drive

1шт.

134741A1

SET OF PARTS

KIT water pump rebuild, Includes Refs 4, 6, 8, 9, 10, 11, 17, 18 and 19

1шт.
