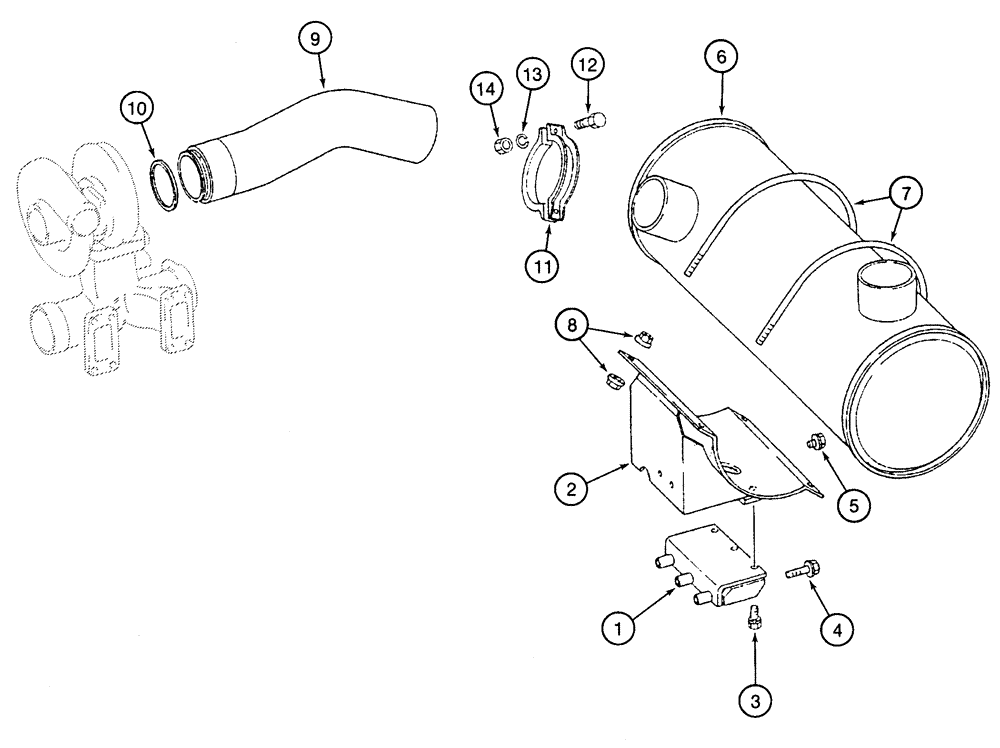

Запчасти Case 9050 (2-10) - MUFFLER AND MOUNTING PARTS (02) - ENGINE

1

135006A1

SUPPORT

muffler bracket

1шт.

2

135005A1

BRACKET

muffler support

1шт.

3

132376A1

BOLT,Hex, M10 x 20mm, W/ Wshr

hex, with captive washer 10 x 20 mm

3шт.

4

135003A1

BOLT,Hex Flg, M10 x 95mm

hex flange 12 x 95 mm

3шт.

5

132489A1

BOLT,Hex Flg, M12 x 16mm

hex flange 12 x 16 mm

2шт.

6

240327A1

MUFFLER

exhaust

1шт.

7

135007A1

U-BOLT,M10 x 277mm

10 x 277 mm muffler mounting

2шт.

8

134763A1

NUT

hex flange 10 mm

8шт.

9

135004A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST, Serial Range: muffler-turbocharger

1шт.

10

134995A1

SEALING RING

SEALRING seal pipe

1шт.

11

134999A1

CLAMP

, Serial Range: pipe-muffler

2шт.

12

135000A1

BOLT,Hex, M10 x 30mm

hex 10 x 30 mm

2шт.

13

132620A1

WASHER

lock 10 mm

2шт.

14

133286A1

NUT

hex 10 mm

2шт.
