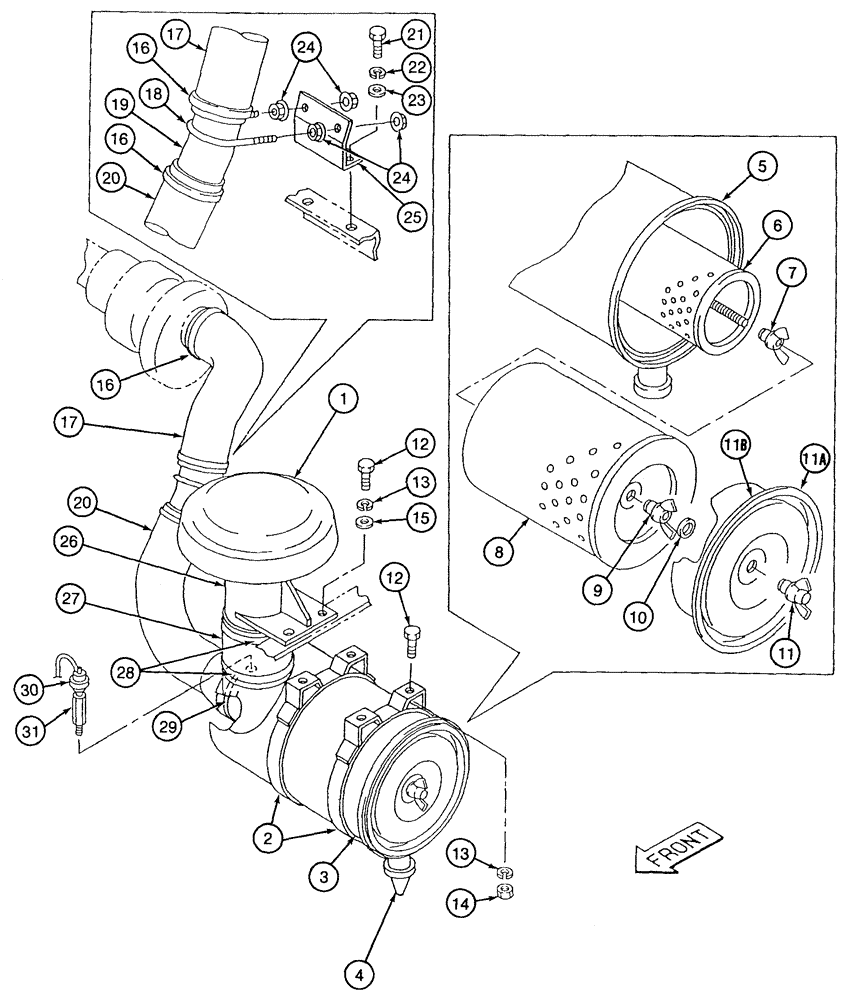

Запчасти Case 9050 (2-08) - AIR CLEANER SYSTEM (02) - ENGINE

151866A1

AIR CLEANER

air, Includes: Ref. 1 - 11B

1шт.

1

151415A1

CAP

COVER air inlet

1шт.

2

150791A1

COLLAR CLAMP

BRACKET air cleaner mounting

1шт.

3

151393A1

AIR CLEANER

HOUSING air cleaner without cover and clamps, Includes: Ref. 4 - 11B

2шт.

4

156680A1

VALVE

CUP dust air cleaner

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING air cleaner

1шт.

6

151397A1

AIR FILTER

inner, air cleaner secondary

1шт.

7

156679A1

NUT

type with gasket, secondary element

1шт.

8

150783A1

ELEMENT

outer, air cleaner primary

1шт.

9

156678A1

NUT

type with gasket, primary element

1шт.

10

156677A1

CLIP

SPACER cover mounting

1шт.

11

156676A1

NUT

wing type

1шт.

11a

164582A1

COVER ASSY

element, air cleaner

1шт.

11b

157236A1

GASKET

cover

1шт.

12

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

6шт.

13

892-11010

LOCK WASHER,M10

6шт.

14

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

15

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat 11 x 21 x 2 mm

2шт.

16

150545A1

COLLAR

hose

3шт.

17

151339A1

LARGE HOSE

HOSE,LARGE At turbocharger from air cleaner

1шт.

18

152078A1

U-BOLT,M12 x 116mm W x 133mm L

BOLT "U" mounting air intake tube

1шт.

19

151831A1

AIR INTAKE TUBE,101.6 mm OD, 149.2, 111 mm Length

air intake hose connecting

1шт.

20

151826A1

INTAKE AIR HOSE,101.60 mm ID, 127.00 mm ID x 374.00 mm

At air cleaner, to turbocharger

1шт.

21

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

Full Thd

2шт.

22

892-11012

LOCK WASHER,M12

2шт.

23

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

24

150475A1

FLANGE NUT

flanged 12 mm - 1.75 special

4шт.

25

151360A1

BRACKET

air line support

1шт.

26

152079A1

AIR INTAKE TUBE,152.40mm OD, 245, 120mm L

cover to air cleaner

1шт.

27

152082A1

INTAKE AIR HOSE,152.40mm ID x 165mm L

At air cleaner inlet

1шт.

28

158840A1

BAND,133mm - 158mm

hose, was 150969A1

2шт.

29

150855A1

HOSE CLAMP,127mm - 146mm

hose

1шт.

30

150042A1

SENSOR

SWITCH air restriction indicator

1шт.

31

150116A1

SOCKET

ADAPTER switch

1шт.
