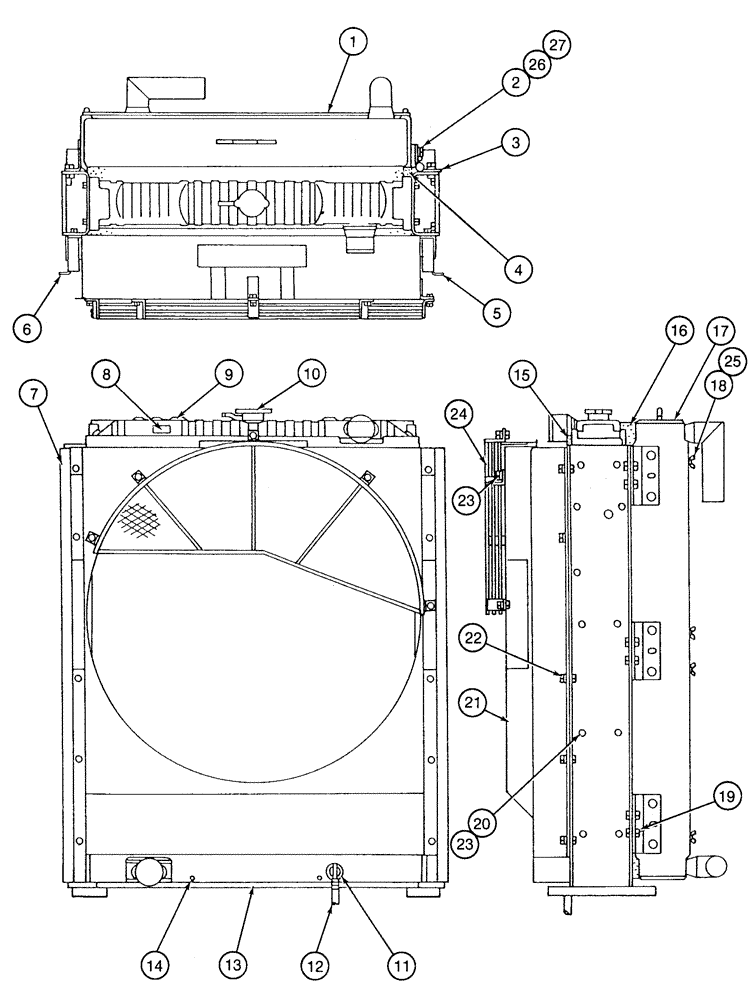

Запчасти Case 9050 (2-06) - RADIATOR ASSEMBLY (02) - ENGINE

151886A1

RADIATOR

engine, Includes: Ref. 1 - 27

1шт.

1

156500A1

ELECTRICAL WIRE

WIRE SCREEN

1шт.

2

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

3

156797A1

HINGE

cooler mounting

6шт.

4

156427A1

PACKING

PAD insulation

3шт.

5

156426A1

BRACKET

mounting front

1шт.

6

156425A1

BRACKET

mounting rear

1шт.

7

156421A1

FRAME

radiator

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE identification1

1шт.

9

156796A1

RADIATOR

CORE engine cooling

1шт.

10

156685A1

CAP

radiator

1шт.

11

156686A1

BREATHER ASSY.

ADAPTER coolant drain hose

1шт.

12

156687A1

HOSE

11-13/16 inch (300 mm) long

1шт.

13

156682A1

PACKING

PAD insulation core to cooler, bottom

1шт.

14

156798A1

SPECIAL BOLT,Sems

hex, with washer

2шт.

15

156684A1

PACKING

PAD insulation core to frame, top

2шт.

16

156689A1

PACKING

PAD insulation core to cooler, top

2шт.

17

156428A1

COOLER, OIL

1шт.

18

156606A1

BOLT,Wing, M6

special wing type head, Replaces 156690A1

8шт.

19

156688A1

CAPTIVE WASHER SCREW,Sems

hex, includes captive washer

11шт.

20

156423A1

LINING

radiator

4шт.

21

156422A1

SHROUD

radiator

1шт.

22

156499A1

SCREW

hex, with washer

10шт.

23

156683A1

SPECIAL BOLT,Sems

hex, with washer

21шт.

24

156424A1

FAN

GUARD

1шт.

25

895-10006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

flat 6.6 x 12.5 x 1.6 mm

8шт.

26

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

6шт.

27

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.
