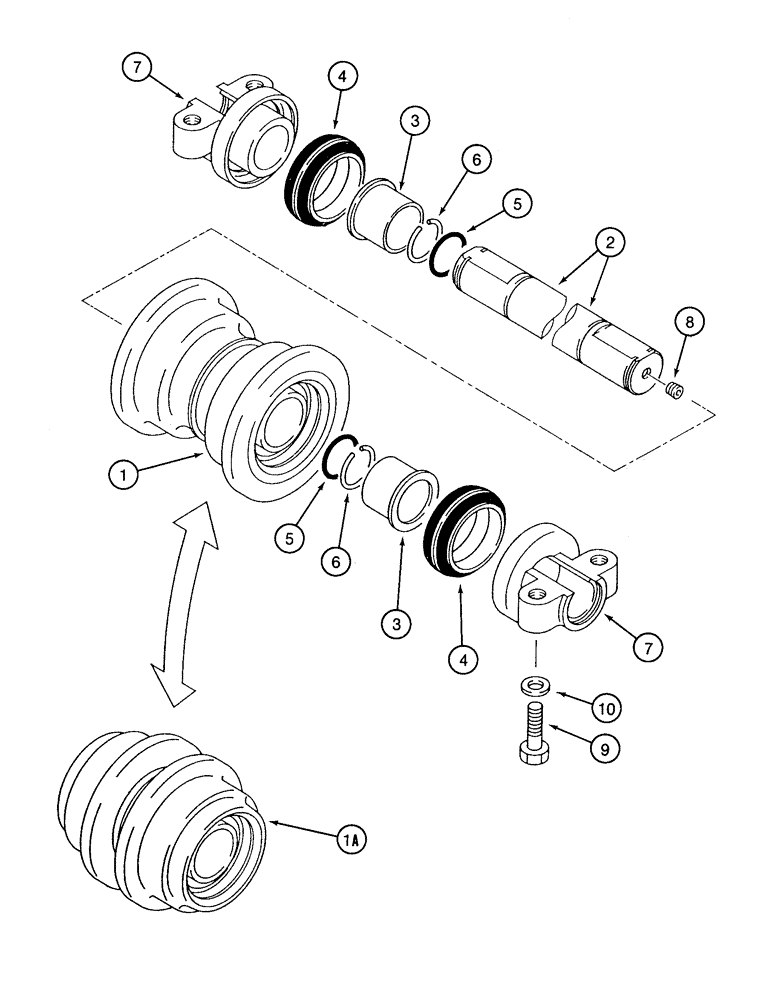

Запчасти Case 9050 (5-14) - TRACK ROLLERS, STANDARD OR TIMBER KING MODELS (11) - TRACKS/STEERING

151865A1

ROLLER ASSY.

track, Includes: Ref. 1 - 8

10шт.

151871A1

ROLLER ASSY.

track, Includes: Ref. 1 - 8

8шт.

1

151678A1

SHIFTER ROLLER

HUB outer flanges

1шт.

1a

151681A1

SHIFTER ROLLER

HUB inner flanges

1шт.

2

151875A1

WHEEL SHAFT

roller was 158163A1

1шт.

3

151509A1

RING

BUSHING roller

2шт.

4

151126A1

SEAL

face track roller, includes two rings and two seals

2шт.

5

154655A1

O-RING

shaft

2шт.

6

151152A1

LOCKING RING

retaining shaft

2шт.

7

151881A1

COLLAR

BRACKET mounting track roller

2шт.

8

150824A1

PLUG

port (1-2)

1шт.

9

828-20075

BOLT,Hex, M20 x 2.5 x 75mm, Cl 10.9

72шт.

10

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

flat, special was 150996A1

72шт.
