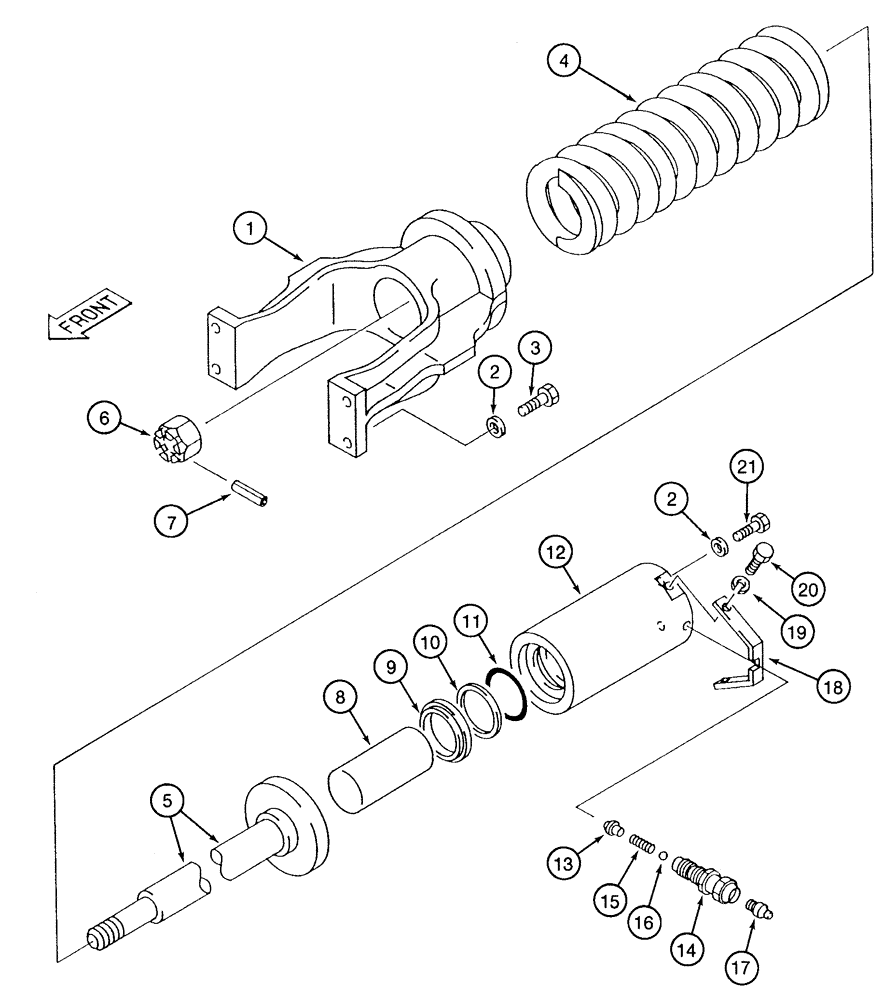

Запчасти Case 9050 (5-08) - TRACK ADJUSTER (11) - TRACKS/STEERING

1

151825A1

FORK

track adjuster

2шт.

2

150991A1

WASHER

flat, special 16 mm

12шт.

3

626-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

Hex, M16 x 50, 10.9, Full Thd

8шт.

4

151830A1

SPRING

track tension

2шт.

5

151835A1

ROD,THREADED

THREADED ROD GUIDE tension spring

2шт.

6

825-3064

SLOTTED NUT,M64 x 6, Cl 8

hex slotted 64 mm - 6

2шт.

7

538-816

LOCK PIN,M10 x 100, Slotted

roll 10 x 100 mm

2шт.

151840A1

CYLINDER

track adjuster, Includes: Ref. 8 - 20

2шт.

8

151846A1

JACK PISTON

ROD

1шт.

9

150689A1

SEAL

WIPER rod

1шт.

10

154133A1

BACK-UP RING

rod seal, was 151861A1

1шт.

11

150093A1

O-RING

piston rod

1шт.

12

151850A1

CYLINDER

cylinder track adjuster

1шт.

150107A1

LUBE NIPPLE

check, Includes: Ref. 13 - 17

1шт.

13

150120A1

CAP

POPPET check valve

1шт.

14

150112A1

VALVE SEAT

BODY check valve

1шт.

15

150115A1

SPRING

check valve

1шт.

16

150897A1

BALL

check

1шт.

17

153630A1

LUBE NIPPLE

straight

1шт.

18

152171A1

BRACKET

mounting check valve

1шт.

19

892-10012

LOCK WASHER,M12

2шт.

20

626-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 25 mm, class 10.9

2шт.

21

828-16065

BOLT,Hex, M16 x 2 x 65mm, Cl 10.9

4шт.
