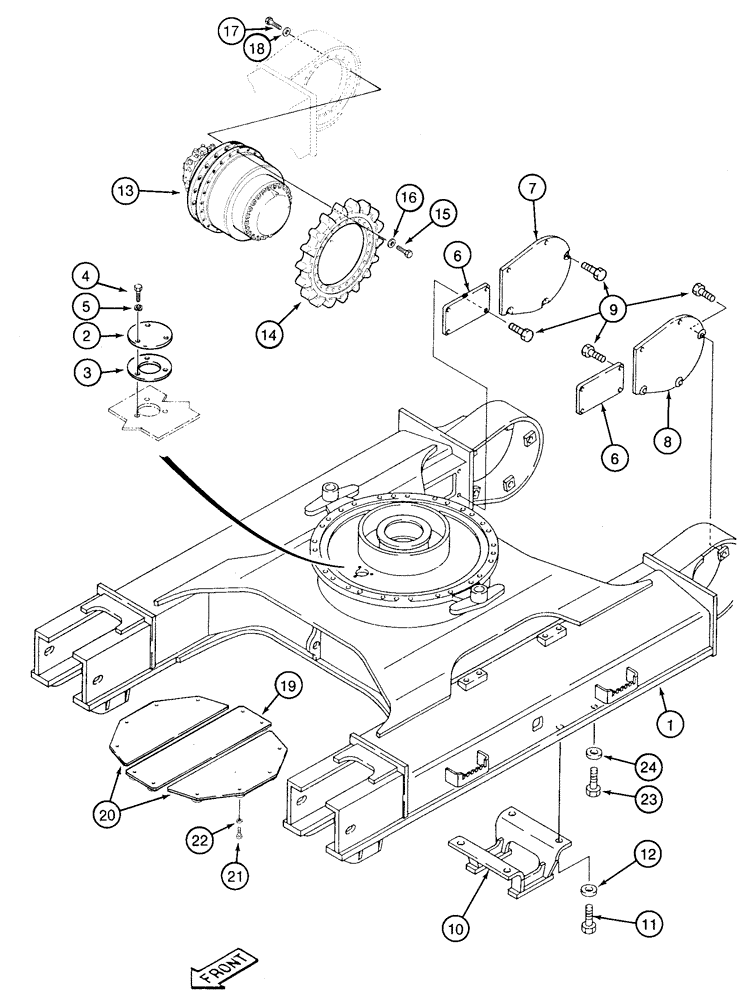

Запчасти Case 9050 (5-02) - TRACK FRAME AND DRIVE SPROCKET (11) - TRACKS/STEERING
№
Артикул
Название
Примечание
Количество
1
151945A1
FRAME
SPARE PART track standard model 9050, Serial Range: -DAC0500101
1шт.
1
159336A1
FRAME
track standard model 9050, Start Serial: DAC0500101
1шт.
1
158751A1
FRAME
SPARE PART track 9050 Timber King, Serial Range: -DAC0500101
1шт.
1
160655A1
FRAME
SPARE PART track 9050 Timber King, Start Serial: DAC0500101
1шт.
2
150432A1
LID
COVER access, grease fill, turntable gear
1шт.
3
150436A1
PACKING
GASKET access cover
1шт.
4
628-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd
3шт.
5
892-10008
LOCK WASHER,M8
3шт.
6
152068A1
COVER
access hydraulic lines to motor, standard model 9050
2шт.
6
158752A1
COVER
access hydraulic lines to motor, 9050 Timber King
2шт.
7
151803A1
ADHESIVE STRIP
COVER access track drive motor, right-hand
1шт.
8
151805A1
COVER
access track drive motor, left-hand
1шт.
9
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
special access cover
18шт.
10
151967A1
GUARD ASSY.
track
2шт.
11
628-20045
BOLT,Hex, M20 x 2.5 x 45mm, Cl 10.9, Full Thd
8шт.
12
150996A1
WASHER
special
8шт.
13
REF
INSTRUCTION
MOTOR ASSEMBLY track drive, parts list Figure 6-8
2шт.
14
151758A1
SPROCKET ASSY.
track drive
2шт.
16
150996A1
WASHER
special
48шт.
17
626-24070
BOLT,Hex, M24 x 3 x 70mm, Cl 10.9, Full Thd
hex, full threads 24 - 3.0 x 70 mm, class 10.9
36шт.
18
151003A1
WASHER
flat, special
36шт.
19
151289A1
COVER
access clean out, turntable gear, inner
1шт.
20
151283A1
COVER
access clean out, turntable gear, outer
2шт.
21
626-16040
BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd
Hex, M16 x 40, 10.9, Full Thd
12шт.
22
150991A1
WASHER
flat, special 16 mm
12шт.
23
628-20030
SCREW,Hex, M20 x 2.5 x 30mm, Cl 10.9, Full Thd
hex, full threads 20 - 2.5 x 30 mm, class 10.9, 9050 Timber King
28шт.
24
150996A1
WASHER
special 9050 Timber King
28шт.
Выбрано товаров: 28
