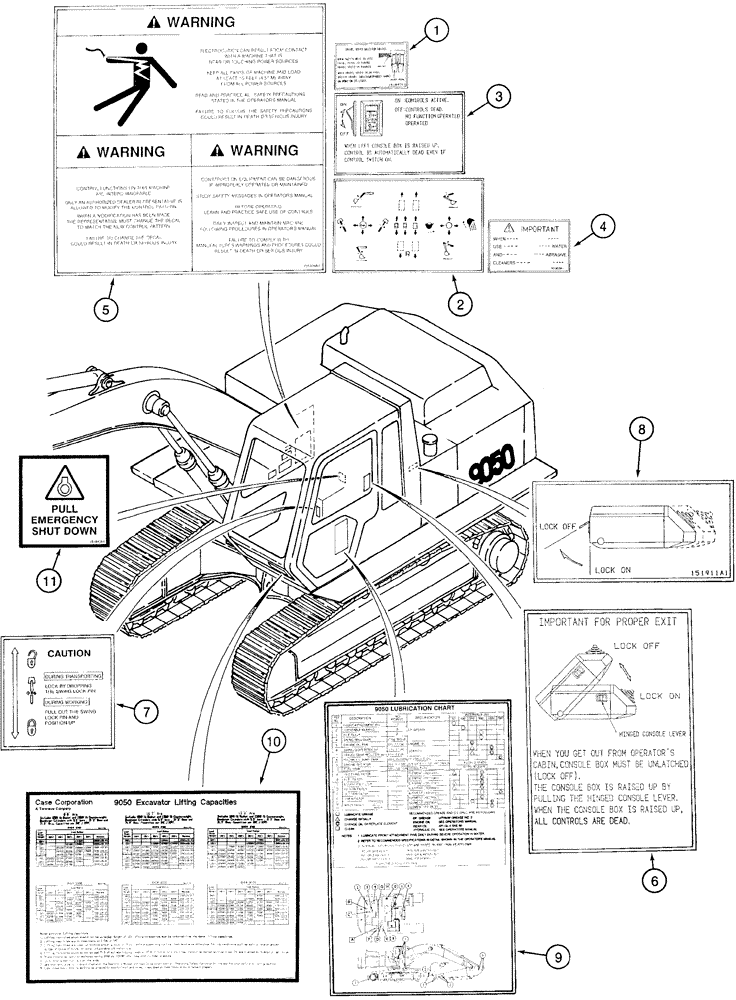

Запчасти Case 9050 (9-78) - DECALS - ENGLISH LANGUAGE, OPERATORS COMPARTMENT (09) - CHASSIS

1

158536A1

DECAL

travel speed selector switch, was 151897A1

1шт.

2

151975A1

DECAL

control pattern (French)

1шт.

3

151906A1

LABEL

control, on - off

1шт.

4

158411A1

DECAL

Important, when cleaning cab windows, was 151933A1

8шт.

5

158410A1

DECAL

Warning, electrocution can result from contact, was 156409A1

1шт.

6

151921A1

LABEL

Important for proper exit, lock on/lock off

1шт.

7

152452A1

LABEL

swing lock

1шт.

8

151911A1

LABEL

slide lever, lock on/lock off

1шт.

9

158541A1

DECAL

lubrication chart, was 156469A1, for standard 9050 Excavator

1шт.

9a

160395A1

DECAL

lubrication chart for 9050 Timber King, not shown

1шт.

10

156455A1

DECAL

lifting capacity chart for standard 9050 Excavator

1шт.

11

151943A1

LABEL

pull, emergency shut down

1шт.
