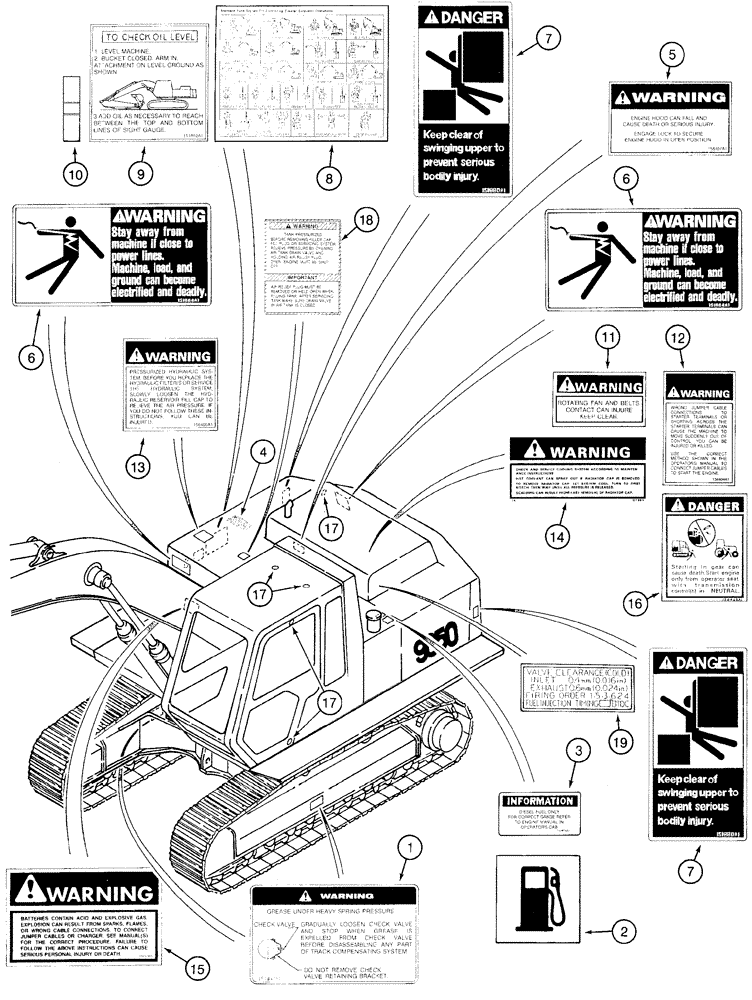

Запчасти Case 9050 (9-76) - DECALS - FRENCH LANGUAGE, WARNING, DANGER AND MISCELLANEOUS (09) - CHASSIS

1

158283A1

DECAL

Warning, grease under heavy spring pressure (French)

2шт.

Included in French language decal kit P/N 158299A1.

1шт.

2

150104A1

DECAL

fuel tank

1шт.

3

158274A1

DECAL

Information, diesel fuel only (French)

1шт.

Included in French language decal kit P/N 158299A1.

1шт.

4

150108A1

ANTI-SKID STRIP

adhesive

9шт.

5

158288A1

DECAL

Warning, engine hood can fall (French)

1шт.

Included in French language decal kit P/N 158299A1.

1шт.

6

158284A1

DECAL

Warning, stay away from machine if close to power line (French)

2шт.

7

158285A1

DECAL

Danger, keep clear of swinging upper (French)

2шт.

Included in French language decal kit P/N 158299A1.

1шт.

8

158270A1

DECAL

hand signal chart (French)

1шт.

Included in French language decal kit P/N 158299A1.

1шт.

9

158272A1

DECAL

to check oil level (French)

1шт.

Included in French language decal kit P/N 158299A1.

1шт.

10

150628A1

GAUGE

DECAL oil level gauge

1шт.

11

321-4324

DECAL

Warning, rotating fan and belts (French)

1шт.

Included in French language decal kit P/N 158299A1.

1шт.

12

321-6720

DECAL

Warning, wrong jumper cable connections to starter terminals (French)

1шт.

Included in French language decal kit P/N 158299A1.

1шт.

13

158290A1

DECAL

Warning, pressurized hydraulic system (French)

1шт.

14

321-6701

DECAL

Warning, check and service cooling system (French)

1шт.

Included in French language decal kit P/N 158299A1.

1шт.

15

321-6719

DECAL

Warning, batteries contain acid and explosive gas (French)

1шт.

Included in French language decal kit P/N 158299A1.

1шт.

16

158287A1

DECAL

Danger, starting in gear can cause death (French)

1шт.

Included in French language decal kit P/N 158299A1.

1шт.

17

151756A1

PLATE WASHER

bumper, 2-inch circle

5шт.

18

158289A1

DECAL

Caution/Important, pressurized tank (French)

1шт.

Included in French language decal kit P/N 158299A1.

1шт.

19

ME059915

PLATE

DECAL valve clearance, firing order and fuel injection timing

1шт.
