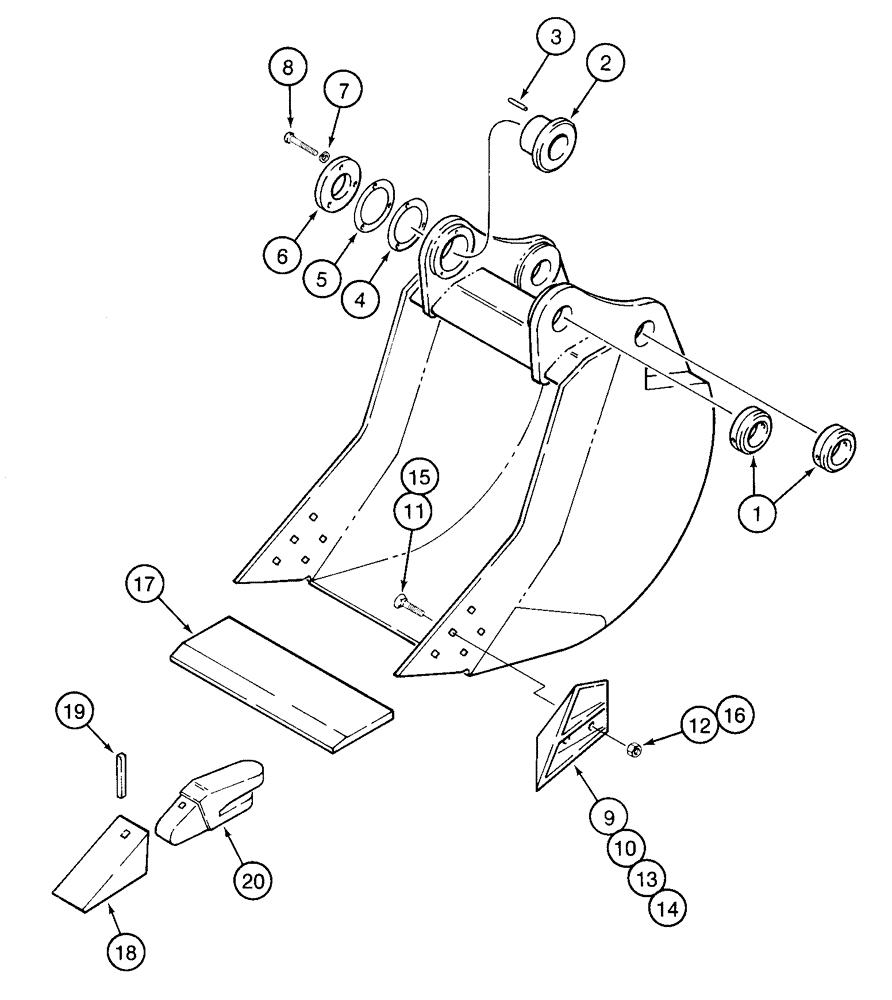

Запчасти Case 9050 (9-68) - H & H BUCKETS, SEVERE DUTY, BUCKET ASSEMBLY - SEVERE DUTY (09) - CHASSIS

REF

INSTRUCTION

BUCKET, 42 inch (1067 mm), with 4 teeth, 1.70 cu. yd., Includes: Ref. 1 - 20

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET, 48 inch 1219 mm), with 5 teeth, 1.75 cu. yd., Includes: Ref. 1 - 20

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

125674A1

LATCH

BUSHING bucket, with locking collar

2шт.

2

125672A1

BUSHING

bucket, adjustable includes dowel pin

1шт.

3

125664A1

DOWEL

PIN dowel, special

2шт.

4

125668A1

SHIM

plate mounting

1шт.

5

125669A1

SHIM

plate mounting

1шт.

6

125670A1

RETAINER

PLATE bushing

1шт.

7

492-11062

BEARING WASHER,5/8"

3шт.

8

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

3шт.

112780A1

EDGE, CUTTING

KIT side cutter blade 4 inch, Includes: Ref. 9 - 12

1шт.

9

125930A1

CUTTER

BLADE side, left-hand 4 inch

1шт.

10

125932A1

CUTTER

BLADE side, right-hand 4 inch

1шт.

11

320-21648

CARRIAGE BOLT,#3, 1" - 8 x 3", Gr 8

plow 1 NC x 3 inch, grade 8

10шт.

12

232-41316

NUT,1"-8, GC

10шт.

128170A1

HALF BLADE

KIT side cutter blade 5 inch, Includes: Ref. 13 - 16

1шт.

13

125934A1

EDGE, CUTTING

left-hand 5 inch

1шт.

14

125936A1

EDGE, CUTTING

right-hand 5 inch

1шт.

15

320-21656

CARRIAGE BOLT,#3, 1" - 8 x 3 1/2", Gr 8

plow 1 NC x 3-1/2 inch, grade 8

10шт.

16

232-41316

NUT,1"-8, GC

10шт.

17

125732A1

EDGE, CUTTING

center 42 inch (1067 mm)

1шт.

17

125733A1

EDGE, CUTTING

center 48 inch (1219 mm)

1шт.

18

122677A1

TOOTH

standard point

1шт.

19

122678A1

FASTENER

PIN flex, standard

1шт.

20

135929A1

ADAPTER

SHANK tooth 2 inch

1шт.
