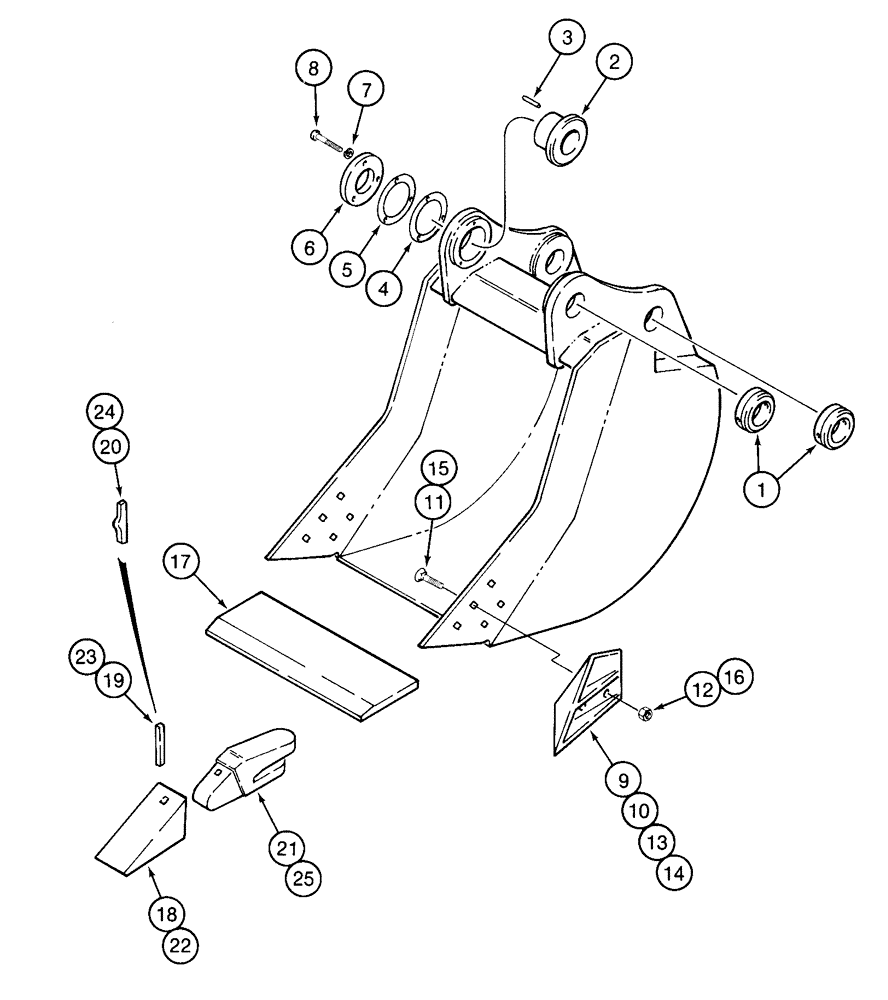

Запчасти Case 9050 (9-64[3]) - H & H BUCKETS, HEAVY DUTY - HIGH CAPACITY (09) - CHASSIS

REF

INSTRUCTION

BUCKET 36 inch (914 mm), with 4 teeth, 1.64 cu. yd., Includes: Ref. 1 - 25

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET 42 inch (1067 mm), with 5 teeth, 1.79 cu. yd., Includes: Ref. 1 - 25

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET 48 inch (1219 mm), with 5 teeth, 2.01 cu. yd., Includes: Ref. 1 - 25

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET 54 inch (1372 mm), with 6 teeth, 2.05 cu. yd., Includes: Ref. 1 - 25

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

125674A1

LATCH

BUSHING - with locking collar

2шт.

2

125672A1

BUSHING

adjustable, Includes: Ref. 3

1шт.

3

125664A1

DOWEL

PIN, special

2шт.

4

125668A1

SHIM

plate mounting

1шт.

5

125669A1

SHIM

plate mounting

1шт.

6

125670A1

RETAINER

PLATE - bushing

1шт.

7

492-11062

BEARING WASHER,5/8"

3шт.

8

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

3шт.

112780A1

EDGE, CUTTING

KIT - side cutter blade, 4 inch, Includes: Ref. 9 - 12

1шт.

9

125930A1

CUTTER

left-hand, 4 inch

1шт.

10

125932A1

CUTTER

right-hand, 4 inch

1шт.

11

320-21648

CARRIAGE BOLT,#3, 1" - 8 x 3", Gr 8

plow, 1 NC x 3 inch, grade 8

10шт.

12

232-41316

NUT,1"-8, GC

10шт.

128170A1

HALF BLADE

KIT, side cutter, 5 inch, Includes: Ref. 13 - 16

1шт.

13

125934A1

EDGE, CUTTING

left-hand, 5 inch

1шт.

14

125936A1

EDGE, CUTTING

right-hand, 5 inch

1шт.

15

320-21656

CARRIAGE BOLT,#3, 1" - 8 x 3 1/2", Gr 8

plow, 1 NC x 3-1/2 inch, grade 8

10шт.

16

232-41316

NUT,1"-8, GC

10шт.

17

125726A1

EDGE, CUTTING

center, 30 inch (762 mm), 2 inch cutting edges

1шт.

17

125727A1

EDGE, CUTTING

center, 36 inch (914 mm), 2 inch cutting edges

1шт.

17

125728A1

EDGE, CUTTING

center, 42 inch (1067 mm), 2 inch cutting edges

1шт.

17

125729A1

EDGE, CUTTING

center, 48 inch (1219 mm), 2 inch cutting edges

1шт.

17

125734A1

EDGE, CUTTING

center, 54 inch (1372 mm), 2 inch cutting edges

1шт.

22

122671A1

TOOTH

standard point

1шт.

See Figures 9-70 & 9-72 for point, pin, and shank options

1шт.

23

122672A1

FASTENER

PIN - flex, point to shank, standard

1шт.

See Figures 9-70 & 9-72 for point, pin, and shank options

1шт.

24

176554A1

PIN

steel, point to shank - Optional replacement for 122672A1

1шт.

25

122673A1

BUCKET TOOTH SHANK

tooth, 2 inch

1шт.

See Figures 9-70 & 9-72 for point, pin, and shank options

1шт.
