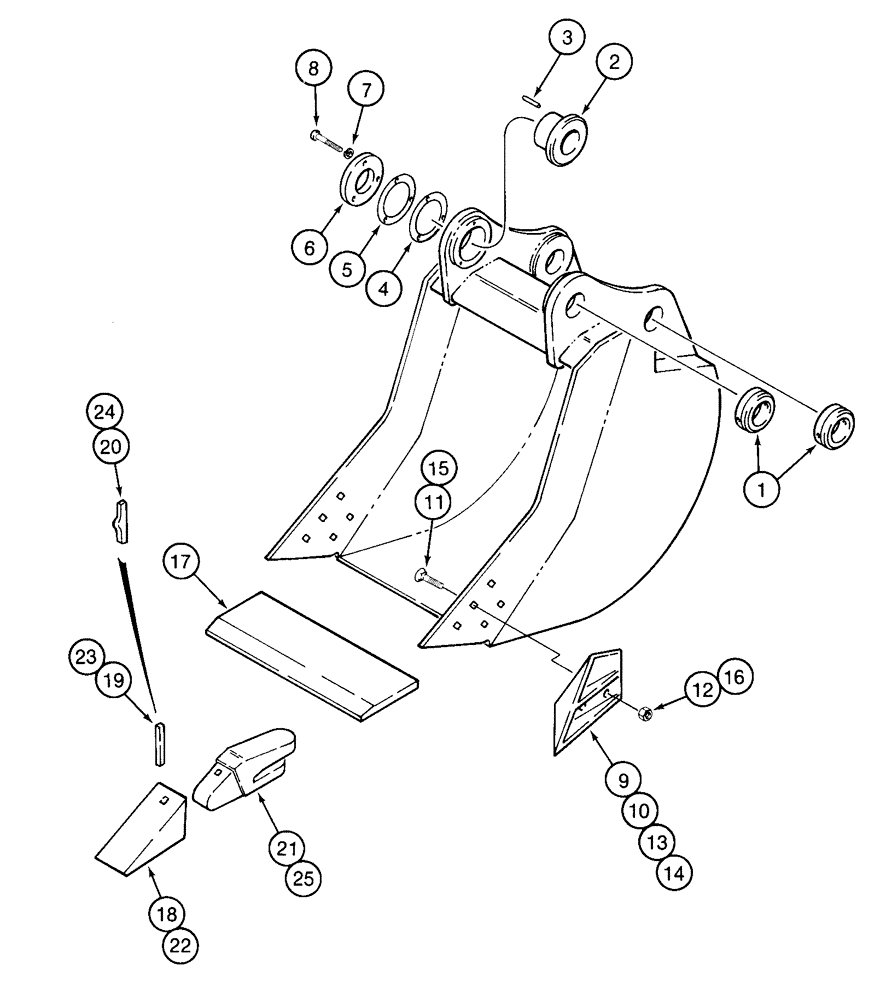

Запчасти Case 9050 (9-64[1]) - H & H BUCKETS, GENERAL PURPOSE - STANDARD CAPACITY (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
BUCKET 30 inch (762 mm), with 3 teeth, 1.20 cu. yd.
1шт.
Order bucket assembly from Machinery Price List.
1шт.
REF
INSTRUCTION
BUCKET 36 inch (914 mm), with 4 teeth, 1.49 cu. yd.
1шт.
Order bucket assembly from Machinery Price List.
1шт.
REF
INSTRUCTION
BUCKET 42 inch (1067 mm), with 5 teeth, 1.80 cu. yd.
1шт.
Order bucket assembly from Machinery Price List.
1шт.
REF
INSTRUCTION
BUCKET 48 inch (1219 mm), with 5 teeth, 2.01 cu. yd.
1шт.
Order bucket assembly from Machinery Price List.
1шт.
REF
INSTRUCTION
BUCKET 54 inch (1372 mm), with 6 teeth, 2.30 cu. yd.
1шт.
Order bucket assembly from Machinery Price List.
1шт.
REF
INSTRUCTION
BUCKET 60 inch (1524 mm), with 7 teeth, 2.60 cu. yd.
1шт.
Order bucket assembly from Machinery Price List.
1шт.
1
125674A1
LATCH
BUSHING - with locking collar
2шт.
2
125672A1
BUSHING
adjustable, Includes: Ref. 3
1шт.
3
125664A1
DOWEL
PIN, special
2шт.
4
125668A1
SHIM
plate mounting
1шт.
5
125669A1
SHIM
plate mounting
1шт.
6
125670A1
RETAINER
PLATE - bushing
1шт.
7
492-11062
BEARING WASHER,5/8"
3шт.
8
326-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 8
3шт.
112780A1
EDGE, CUTTING
KIT - side cutter blade, 4 inch, Includes: Ref. 9 - 12
1шт.
9
125930A1
CUTTER
left-hand, 4 inch
1шт.
10
125932A1
CUTTER
right-hand, 4 inch
1шт.
11
320-21648
CARRIAGE BOLT,#3, 1" - 8 x 3", Gr 8
plow, 1 NC x 3 inch, grade 8
10шт.
12
232-41316
NUT,1"-8, GC
10шт.
128170A1
HALF BLADE
KIT, side cutter, 5 inch, Includes: Ref. 13 - 16
1шт.
13
125934A1
EDGE, CUTTING
left-hand, 5 inch
1шт.
14
125936A1
EDGE, CUTTING
right-hand, 5 inch
1шт.
15
320-21656
CARRIAGE BOLT,#3, 1" - 8 x 3 1/2", Gr 8
plow, 1 NC x 3-1/2 inch, grade 8
10шт.
16
232-41316
NUT,1"-8, GC
10шт.
17
125720A1
EDGE, CUTTING
center, 30 inch (762 mm), 1-1/2 inch cutting edges
1шт.
17
125721A1
EDGE, CUTTING
center, 36 inch (914 mm), 1-1/2 inch cutting edges
1шт.
17
125722A1
EDGE, CUTTING
center, 42 inch (1067 mm), 1-1/2 inch cutting edges
1шт.
17
125723A1
EDGE, CUTTING
center, 48 inch (1219 mm), 1-1/2 inch cutting edges
1шт.
17
125815A1
EDGE, CUTTING
center, 54 inch (1372 mm), 1-1/2 inch cutting edges
1шт.
17
125725A1
EDGE, CUTTING
center, 60 inch (1524 mm), 1-1/2 inch cutting edges
1шт.
18
122674A1
TOOTH
standard point
1шт.
See Figures 9-70 & 9-72 for point, pin, and shank options
1шт.
19
122675A1
FASTENER
PIN - flex, point, standard
1шт.
See Figures 9-70 & 9-72 for point, pin, and shank options
1шт.
20
176553A1
PIN
steel, point to shank - Optional replacement for 122675A1
1шт.
21
122676A1
BUCKET TOOTH SHANK
SHANK - tooth, 1-1/2 inch
1шт.
See Figures 9-70 & 9-72 for point, pin, and shank options
1шт.
Выбрано товаров: 43
