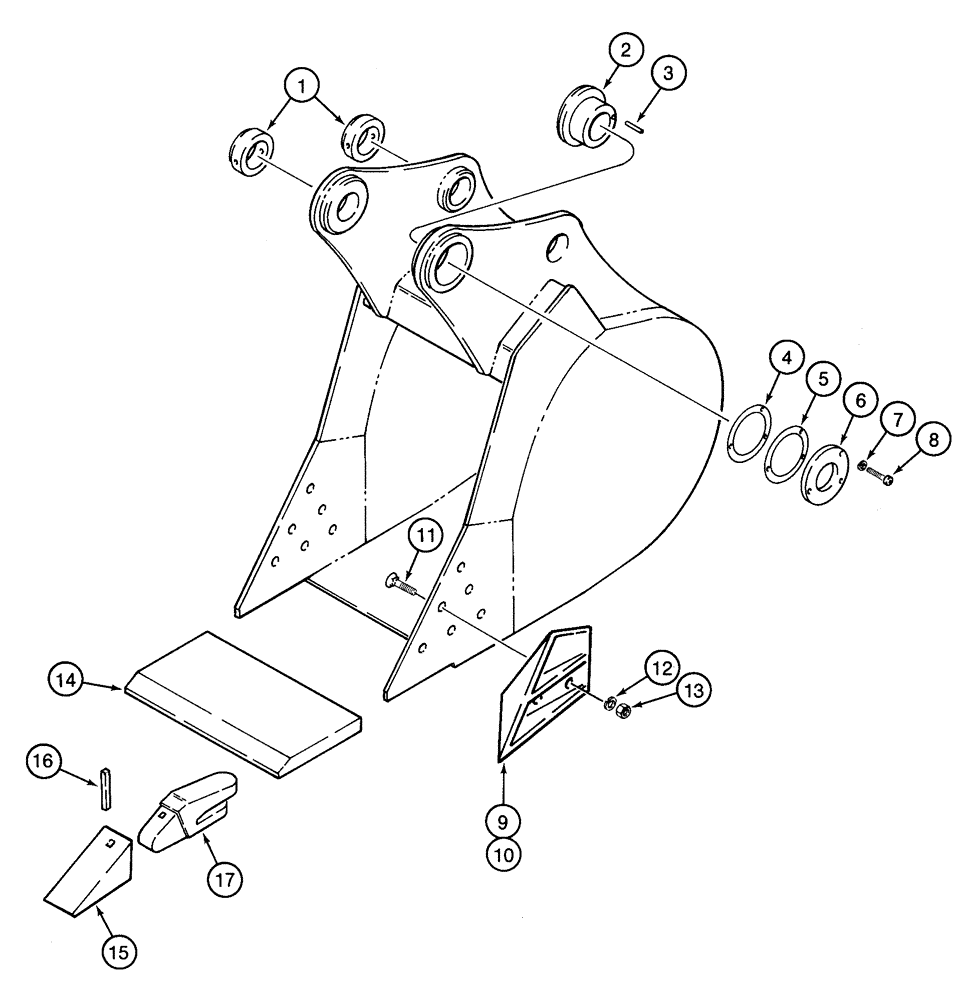

Запчасти Case 9050 (9-62) - CENTRAL FABRICATORS BUCKETS - SEVERE DUTY (09) - CHASSIS

REF

INSTRUCTION

BUCKET ASSEMBLY, 42 inch (1067 mm), with 4 teeth, 1.75 cu. yd., Includes: Ref. 1 - 17

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET ASSEMBLY, 48 inch (1219 mm), with 5 teeth, 2.03 cu. yd., Includes: Ref. 1 - 17

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

122690A1

LATCH

BUSHING, bucket, with locking collar

2шт.

2

122689A1

BUSHING

bucket, adjustable includes dowel pin, Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

PIN dowel, hardened 1/2 x 1 inch

1шт.

4

122685A1

SHIM

plate mounting 0.039 inch thick

1шт.

5

122686A1

SHIM

plate mounting 0.020 inch thick

1шт.

6

122686A1

SHIM

PLATE bushing

1шт.

7

429-11062

LOCK WASHER

5/8 inch

3шт.

8

361-36232

HEX SOC SCREW,5/8" - 11 x 2"

hex socket 5/8 NC x 2 inch

3шт.

112222A1

HALF BLADE

KIT edge, side cutting 6 inch, Includes: Ref. 9 - 13

1шт.

9

122682A1

CUTTER

EDGE, right-hand side

1шт.

10

122683A1

CUTTER

EDGE, left-hand side

1шт.

11

320-21448

CARRIAGE BOLT,#3, 7/8" - 9 x 3", Gr 8

plow, #3 head 7/8 NC x 3 inch, grade 8

6шт.

12

392-21088

LOCK WASHER,7/8"

7/8"

6шт.

13

329-1014

NUT,7/8"-9, G8

6шт.

14

125029A1

EDGE, CUTTING

center 42 inch (1067 mm)

1шт.

14

125030A1

EDGE, CUTTING

center 48 inch (1219 mm)

1шт.

15

122677A1

TOOTH

standard point

1шт.

See Figures 9-70 & 9-72 for point, pin, and shank options

1шт.

16

122678A1

FASTENER

PIN flex, standard

1шт.

See Figures 9-70 & 9-72 for point, pin, and shank options

1шт.

17

122679A1

ADAPTER

SHANK tooth 2-1/2 inch

1шт.

See Figures 9-70 & 9-72 for point, pin, and shank options

1шт.
