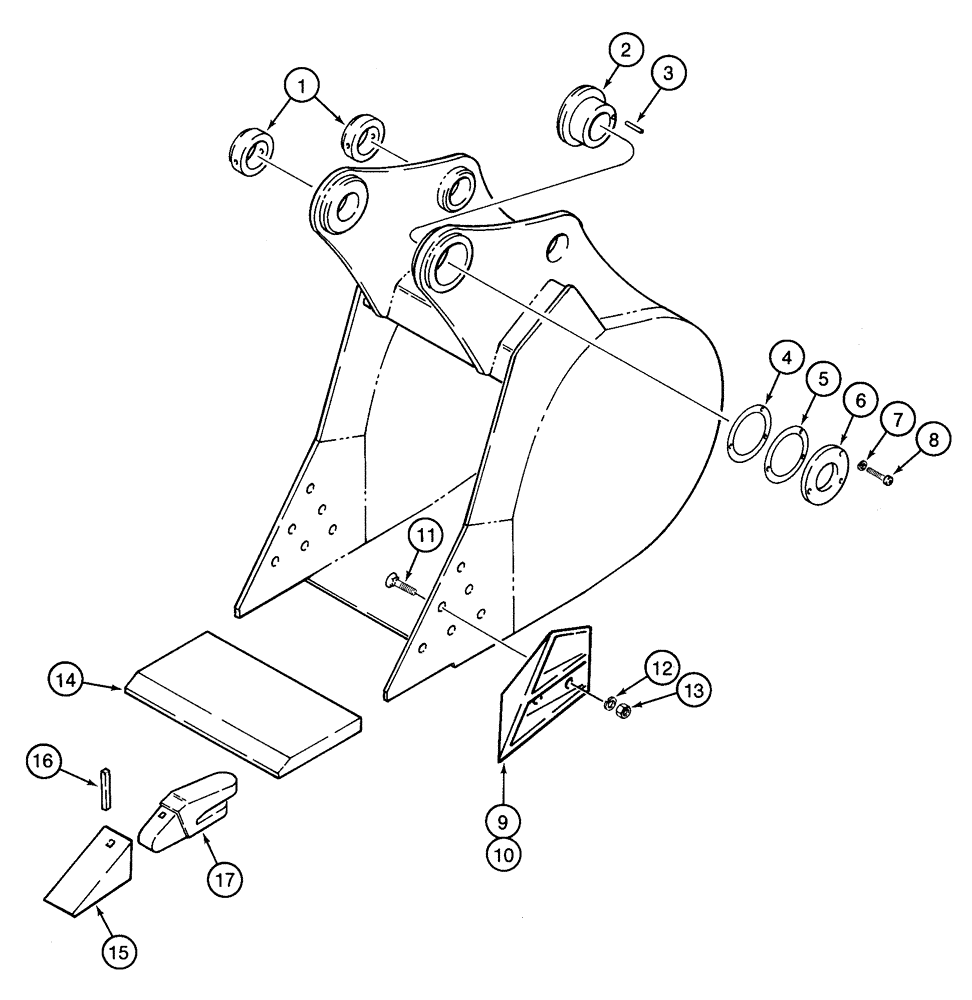

Запчасти Case 9050 (9-58[3]) - CENTRAL FABRICATORS BUCKETS, HEAVY DUTY - STANDARD CAPACITY (09) - CHASSIS

REF

INSTRUCTION

BUCKET 30 inch (762 mm), with 4 teeth, 1.20 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET 36 icnh (914 mm), with 5 teeth, 1.48 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET 42 inch (1067 mm), with 5 teeth, 1.75 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET 48 inch (1219 mm), with 6 teeth, 2.03 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET 54 inch (1372 mm), with 6 teeth, 2.30 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

122690A1

LATCH

BUSHING - bucket, with locking collar

2шт.

2

122689A1

BUSHING

bucket, adjustable, Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

PIN - dowel, harfened, 1/2 x 1 inch

1шт.

4

122685A1

SHIM

plate mounting, 0.039 inch thick

1шт.

5

122686A1

SHIM

plate mounting 0.020 inch thick

1шт.

6

122687A1

RETAINER

PLATE - bushing

1шт.

7

429-11062

LOCK WASHER

5/8 inch

3шт.

8

361-36232

HEX SOC SCREW,5/8" - 11 x 2"

hex socket, 5/8 NC x 2 inch

3шт.

112222A1

HALF BLADE

KIT - edge, side cutting, 6 inch

1шт.

9

122682A1

CUTTER

EDGE, right-hand side

1шт.

10

122683A1

CUTTER

EDGE, left-hand side

1шт.

11

320-21448

CARRIAGE BOLT,#3, 7/8" - 9 x 3", Gr 8

plow, #3 head, 7/8 NC x 3 inch, grade 8

6шт.

12

392-21088

LOCK WASHER,7/8"

7/8"

6шт.

13

329-1014

NUT,7/8"-9, G8

6шт.

14

125021A1

EDGE, CUTTING

center, 30 inch (762 mm), 2 inch cutting edges

1шт.

14

125022A1

EDGE, CUTTING

center, 36 inch (914 mm), 2 inch cutting edges

1шт.

14

125023A1

EDGE, CUTTING

center, 42 inch (1067 mm), 2 inch cutting edges

1шт.

14

125024A1

EDGE, CUTTING

center, 48 inch (1219 mm), 2 inch cutting edges

1шт.

14

125025A1

EDGE, CUTTING

center, 54 inch (1372 mm), 2 inch cutting edges

1шт.

14

125026A1

EDGE, CUTTING

center, 60 inch (1524 mm), 2 inch cutting edges

1шт.

15

REF

INSTRUCTION

TOOTH, point

1шт.

See Figures 9-70 & 9-72 for point, pin, and shank options

1шт.

16

REF

INSTRUCTION

PIN - flex, Serial Range: point-shank

1шт.

See Figures 9-70 & 9-72 for point, pin, and shank options

1шт.

17

REF

INSTRUCTION

SHANK, tooth, 2 inch

1шт.

See Figures 9-70 & 9-72 for point, pin, and shank options

1шт.
