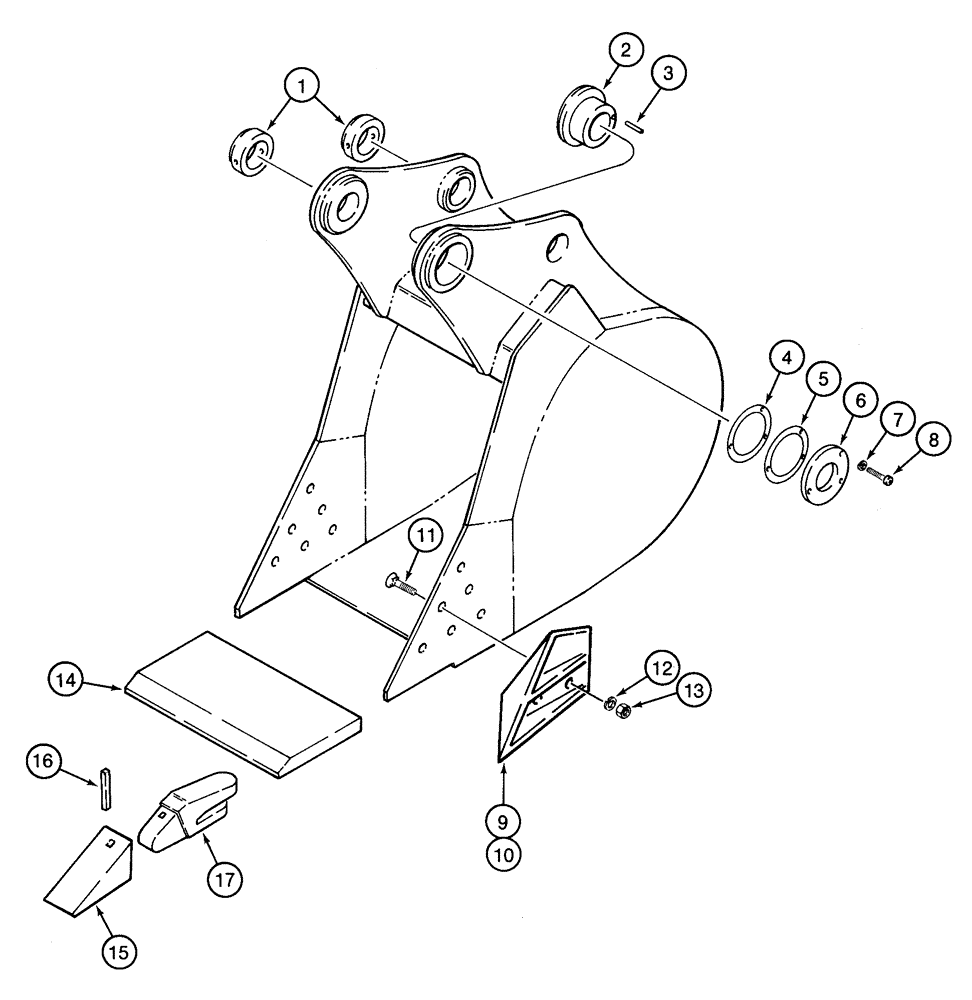

Запчасти Case 9050 (9-58[2]) - CENTRAL FABRICATORS BUCKETS, GENERAL PURPOSE - HIGH CAPACITY (09) - CHASSIS

REF

INSTRUCTION

BUCKET 30 inch (762 mm), with 4 teeth, 1.26 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET 36 icnh (914 mm), with 4 teeth, 1.56 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET 42 inch (1067 mm), with 5 teeth, 1.85 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET 48 inch (1219 mm), with 6 teeth, 2.15 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET 54 inch (1372 mm), with 7 teeth, 2.45 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET 60 inch (1524 mm), with 7 teeth 2.74 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

122690A1

LATCH

BUSHING - bucket, with locking collar

2шт.

2

122689A1

BUSHING

bucket, adjustable, Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

PIN - dowel, hardened, 1/2 x 1 inch

1шт.

4

122685A1

SHIM

plate mounting, 0.039 inch thick

1шт.

5

122686A1

SHIM

plate mounting 0.020 inch thick

1шт.

6

122687A1

RETAINER

PLATE - bushing

1шт.

7

429-11062

LOCK WASHER

5/8 inch

3шт.

8

361-36232

HEX SOC SCREW,5/8" - 11 x 2"

hex socket, 5/8 NC x 2 inch

3шт.

112222A1

HALF BLADE

KIT - edge, side cutting, 6 inch, Includes: Ref. 9 - 13

1шт.

9

122682A1

CUTTER

EDGE, right-hand side

1шт.

10

122683A1

CUTTER

EDGE, left-hand side

1шт.

11

320-21448

CARRIAGE BOLT,#3, 7/8" - 9 x 3", Gr 8

plow, #3 head, 7/8 NC x 3 inch, grade 8

6шт.

12

392-21088

LOCK WASHER,7/8"

7/8"

6шт.

13

329-1014

NUT,7/8"-9, G8

6шт.

14

125006A1

EDGE, CUTTING

center, 30 inch (762 mm), 1-1/2 inch cutting edges

1шт.

14

125007A1

EDGE, CUTTING

center, 36 inch (914 mm), 1-1/2 inch cutting edges

1шт.

14

125008A1

EDGE, CUTTING

center, 42 inch (1067 mm), 1-1/2 inch cutting edges

1шт.

14

125009A1

EDGE, CUTTING

center, 48 inch (1219 mm), 1-1/2 inch cutting edges

1шт.

14

125027A1

EDGE, CUTTING

center, 54 inch (1372 mm), 1-1/2 inch cutting edges

1шт.

14

125028A1

EDGE, CUTTING

center, 60 inch (1524 mm), 1-1/2 inch cutting edges

1шт.

15

122674A1

TOOTH

standard point

1шт.

See Figures 9-70 & 9-72 for point, pin, and shank options

1шт.

16

122675A1

FASTENER

PIN - flex, point, standard

1шт.

See Figures 9-70 & 9-72 for point, pin, and shank options

1шт.

16

176553A1

PIN

steel, point to shank - This is a direct replacement for 122675A1

1шт.

17

122676A1

BUCKET TOOTH SHANK

SHANK - tooth, 1-1/2 inch

1шт.

See Figures 9-70 & 9-72 for point, pin, and shank options

1шт.
