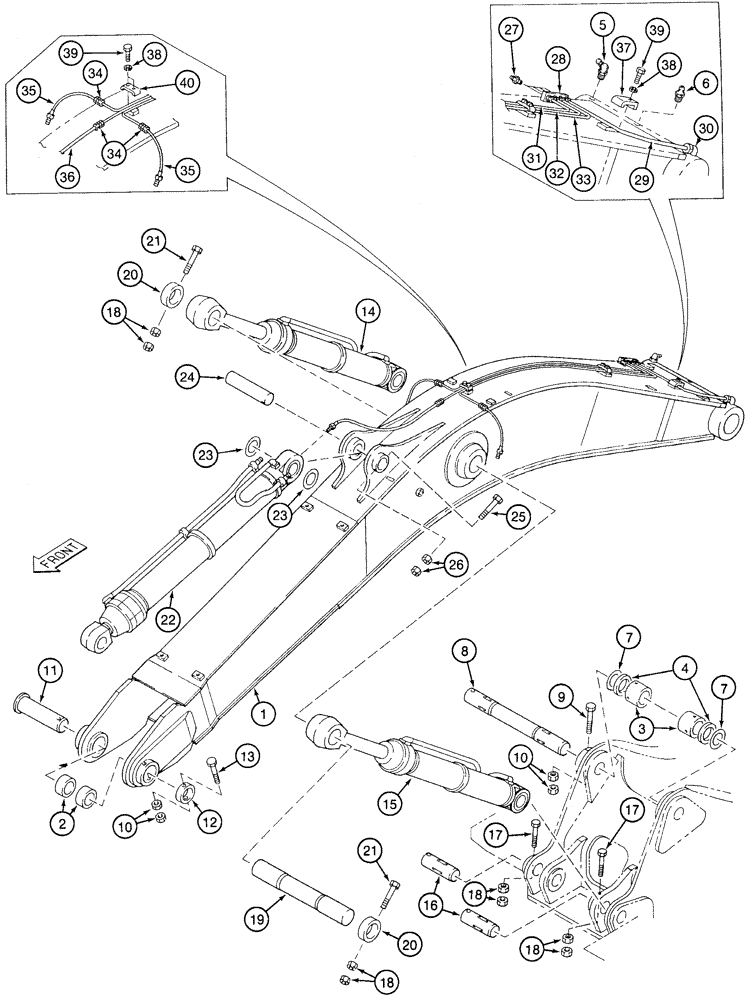

Запчасти Case 9050 (9-52) - BOOM, MOUNTING PINS AND RELATED PARTS (09) - CHASSIS

1

151968A1

BOOM

excavator

1шт.

2

151214A1

BUSHING

, Serial Range: Boom-arm

2шт.

3

151211A1

BUSHING

, Serial Range: boom-frame

2шт.

4

150328A1

SEAL

dust, Serial Range: boom-frame

2шт.

5

153631A1

LUBE NIPPLE,1/8"-27 NPT

special

1шт.

6

153630A1

LUBE NIPPLE

straight

1шт.

7

151236A1

SHIM

, Serial Range: SHIM-frame

2шт.

8

151185A1

PIN

, Serial Range: PIN-frame

1шт.

9

514-1500

BOLT,Hex, M30 x 2 x 240mm, Cl 10.9

hex 30 - 2.0 x 240 mm, class 10.9

1шт.

10

825-11330

NUT,M30 x 2, Cl 8

hex 30 mm - 2

4шт.

11

151181A1

PIN

, Serial Range: attaching-arm

1шт.

12

151222A1

COLLAR CLAMP

pin, retaining

1шт.

13

514-1500

BOLT,Hex, M30 x 2 x 240mm, Cl 10.9

hex 30 - 2.0 x 240 mm, class 10.9

1шт.

14

151148A1

CYLINDER

5-1/2 (140) ID x 58-1/4 inch (1480 mm) stroke boom, right-hand, parts list Figure 8-82

1шт.

15

151151A1

CYLINDER

5-1/2 (140) ID x 58-1/4 inch (1480 mm) stroke boom, left-hand, parts list Figure 8-82

1шт.

16

151189A1

PIN

mounting at frame

2шт.

17

514-1217

BOLT,Hex, M20 x 1.5 x 170mm, Cl 10.9

hex 24 - 1.5 x 170 mm, class 10.9

2шт.

18

825-11420

NUT,M20 x 1.5, Cl 8

Hex

8шт.

19

151187A1

PIN

mounting at boom

1шт.

20

150762A1

RING, LOCKING

RING, LOCK pin

2шт.

21

514-1219

BOLT,Hex, M20 x 1.5 x 190mm, Cl 10.9

hex 20 - 1.5 x 190 mm, class 10.9

2шт.

22

151155A1

CYLINDER ASSY.

6-1/4 (160) ID x 68-1/4 inch (1733 mm) stroke arm, parts list Figure 8-84

1шт.

23

151247A1

ADJUSTING PLATE

, Serial Range: SHIM-arm

2шт.

24

151194A1

PIN

arm, Serial Range: cylinder-arm

1шт.

25

514-1218

BOLT,Hex, M20 x 1.5 x 180mm, Cl 10.9

hex 24 - 1.5 x 180 mm, class 10.9

1шт.

26

825-11420

NUT,M20 x 1.5, Cl 8

Hex

2шт.

27

153630A1

LUBE NIPPLE

straight

4шт.

28

152599A1

MULTIPOLE CONNECTOR

straight, special lubrication line

4шт.

29

151288A1

TUBE,641.7, 575.4 mm Length

lubrication boom pin

1шт.

30

152627A1

ELBOW

90 degree, special lubrication line

1шт.

31

151274A1

TUBE,2273.2, 454.9 mm Length

lubrication boom cylinder pin, right-hand

1шт.

32

151278A1

TUBE,2551.8, 278 mm Length

lubrication arm cylinder pin

1шт.

33

151282A1

TUBE

lubrication boom cylinder pin, left-hand

1шт.

34

152032A1

UNION

straight

3шт.

35

152362A1

HOSE,530.00 mm

Nylon, Boom cylinder pin

2шт.

36

151508A1

HOSE,700.00 mm

Nylon, Arm cylinder pin

1шт.

37

151504A1

CLAMP

lubrication line, single type

1шт.

38

892-10008

LOCK WASHER,M8

5шт.

39

628-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

5шт.

40

151497A1

CLAMP

lubrication line, triple type

2шт.
