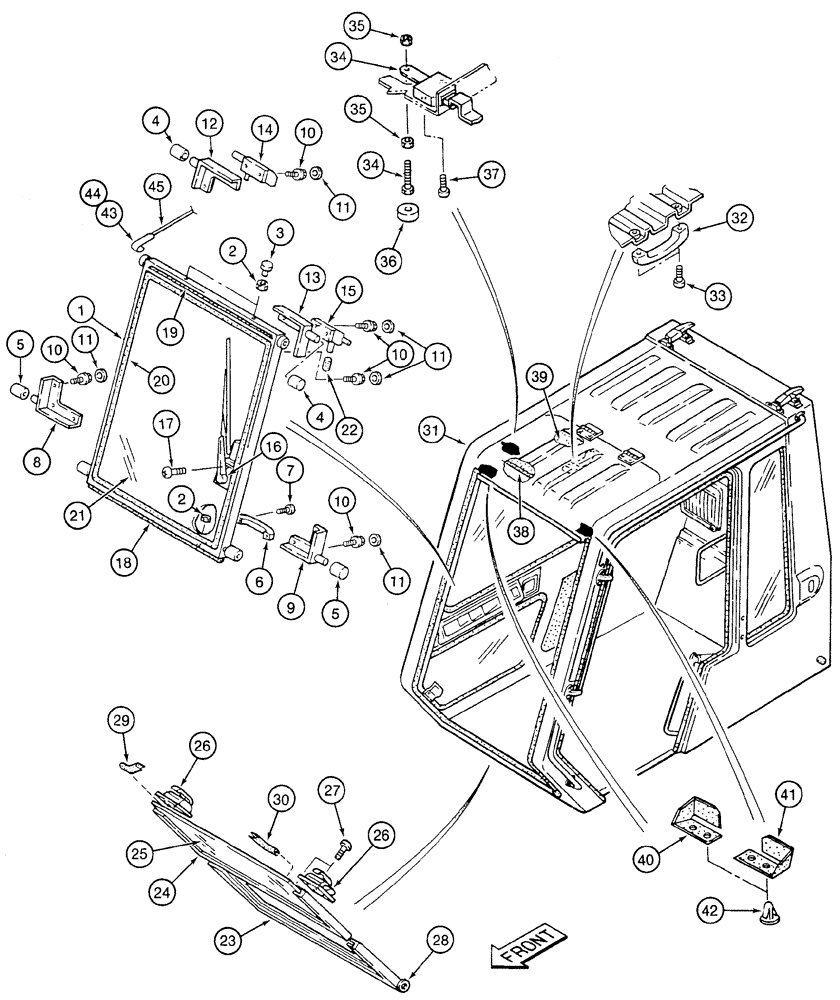

Запчасти Case 9050 (9-46) - CAB WINDSHIELD, LOWER FRONT WINDOW AND OVERHEAD DOOR (09) - CHASSIS

KHN1148

CAB

operators, Includes: Ref. 1 - 42 on this Figure & Ref. 1 - 8 on Figure 9-44, Replaces 152792A1, KHN12000

1шт.

152646A1

WINDOW

WINDSHIELD, Includes: Ref. 1 - 22

1шт.

1

152427A1

WINDOW FRAME

windshield

1шт.

2

825-1405

NUT,M5, Cl 8

7шт.

3

152741A1

STOP

rubber

2шт.

4

152392A1

ROLLER

track, windshield, top

2шт.

5

152390A1

ROLLER

track, windshieldm, bottom

2шт.

6

151807A1

HANDLE

grab inside, cab windshield

2шт.

7

152458A1

SPECIAL BOLT

handle retaining

4шт.

8

152292A1

BRACKET

mounting lower right-hand

1шт.

9

152297A1

BRACKET

mounting lower left-hand

1шт.

10

158863A1

BOLT

special roller bracket mounting, was 152434A1

12шт.

11

152530A1

CAP

bolt

12шт.

12

152279A1

BRACKET

mounting upper right-hand

1шт.

13

152284A1

BRACKET

mounting upper left-hand

1шт.

14

152379A1

HANDLE

CATCH windshield upper right-hand

1шт.

15

152380A1

HANDLE

CATCH windshield upper left-hand

1шт.

16

152415A1

BRACKET

mounting

1шт.

17

152482A1

SPECIAL BOLT,Spcl

6шт.

18

KHN0767

SEAL, GLASS

GUARD frame, lower, Replaces 152716A1

1шт.

19

152817A1

GASKET

GUARD trim frame, top

1шт.

20

152228A1

SEALING STRIP

SEAL, Serial Range: GLASS-frame

1шт.

21

152930A1

GLASS

windshield

1шт.

22

152376A1

CAP

GUARD catch pin

2шт.

KHN1040

WINDOW FRAME

lower, Includes: Ref. 23 - 30, Replaces 152703A1

1шт.

23

152523A1

WINDOW

FRAME lower, front

1шт.

24

152527A1

SEALING STRIP

rubber

1шт.

25

152527A1

SEALING STRIP

window, front, Replaces 152561A1

1шт.

26

152547A1

CATCH

window

2шт.

27

152482A1

SPECIAL BOLT,Spcl

8шт.

28

152666A1

SPACER

window mounting

2шт.

29

152822A1

RUBBER

TRIM right-hand

1шт.

30

152823A1

RUBBER

TRIM left-hand

1шт.

152663A1

DOOR ASSY.

cab, Includes: Ref. 31 - 42

1шт.

KHN0891

SCREW,M6 x 10mm

Hinge Mounting Hardware, Not Shown

4шт.

31

152657A1

ROOF

DOOR cab overhead hinged

1шт.

32

151807A1

HANDLE

grab inside, overhead door

1шт.

33

152458A1

SPECIAL BOLT

handle retaining

2шт.

34

152413A1

LOCK

overhead door

2шт.

35

152472A1

SPECIAL NUT

special

4шт.

36

152528A1

CAP

GUARD latch bolt

2шт.

37

152540A1

SPECIAL BOLT

4шт.

38

152727A1

NOISE PROTECTION

insulation, front

1шт.

39

152730A1

NOISE PROTECTION

insulation, rear

1шт.

40

152826A1

RUBBER BLOCK

GUARD right-hand, front

1шт.

41

152828A1

RUBBER BLOCK

GUARD left-hand, front

1шт.

42

152830A1

CLIP

guard, retaining

4шт.

43

152260A1

HOOK

GUIDE track, windshield

2шт.

44

152697A1

RIVET

guide assembly

4шт.

45

152814A1

SPRING

guide window storage

2шт.
