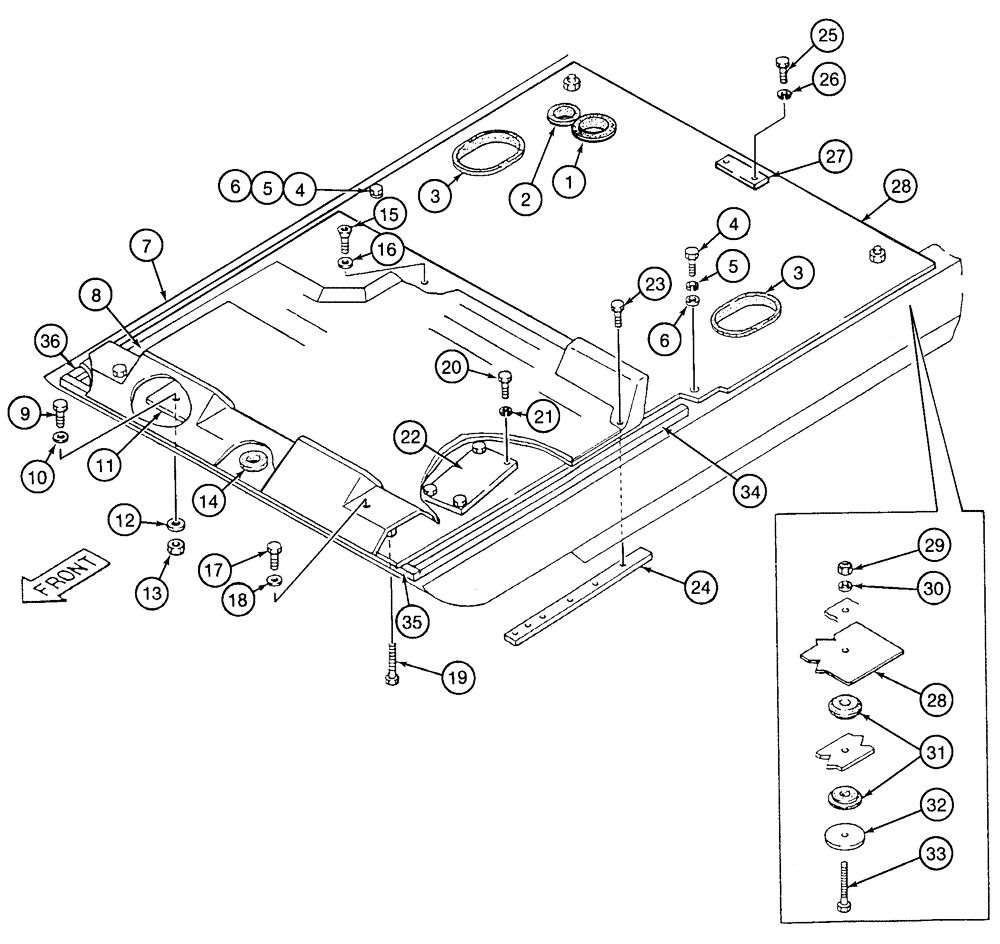

Запчасти Case 9050 (9-40) - CAB FLOOR AND MOUNTING (09) - CHASSIS

1

152424A1

GROMMET

rubber

1шт.

2

152643A1

GROMMET

rubber

1шт.

3

152644A1

GROMMET

rubber

2шт.

4

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

5

892-11010

LOCK WASHER,M10

2шт.

6

150344A1

WASHER

flat, 11 ID x 25 OD x 3.2 mm thick

2шт.

7

151186A1

FLOOR MAT

outer

1шт.

8

151425A1

FLOOR MAT

inner

1шт.

9

151102A1

SPECIAL BOLT,Hex, M10 x 40mm, Full Thd

hex

2шт.

10

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

2шт.

11

151168A1

BRACKET

foot rest

1шт.

12

150811A1

WASHER

flat, special, 12 mm

2шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

14

150413A1

GROMMET

rubber

1шт.

15

151290A1

HEX SOC SCREW,Flat Csk Hd, M8 x 20mm

2шт.

16

151590A1

WASHER

special

2шт.

17

150548A1

BOLT,High Strength, Hex, M10 x 20mm

hex, 10 - 1.5 x 20 mm, class 10.9

2шт.

18

150604A1

WASHER

special

2шт.

19

152973A1

SPECIAL BOLT,High Strength, Hex, M16 x 100mm

hex

1шт.

20

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

4шт.

21

892-11006

LOCK WASHER,M6

4шт.

22

150976A1

PLATE

access

1шт.

23

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

6шт.

24

151183A1

PLATE

reinforcement

1шт.

25

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

26

892-11010

LOCK WASHER,M10

2шт.

27

156699A1

BRACKET

floor plate

1шт.

28

153331A1

FLOOR

cab

1шт.

29

150760A1

NUT

hex special

4шт.

30

150714A1

WASHER

special

4шт.

31

152645A1

INSULATOR BLOCK

RUBBER BLOCK shock

8шт.

32

150330A1

WASHER

flat, special

4шт.

33

150882A1

BOLT,High Strength, Hex, M16 x 90mm

hex, special

3шт.

34

150631A1

CUSHION ASSY.

sponge left side

1шт.

35

150632A1

CUSHION ASSY.

sponge front

1шт.

36

150635A1

CUSHION ASSY.

sponge right side

1шт.
