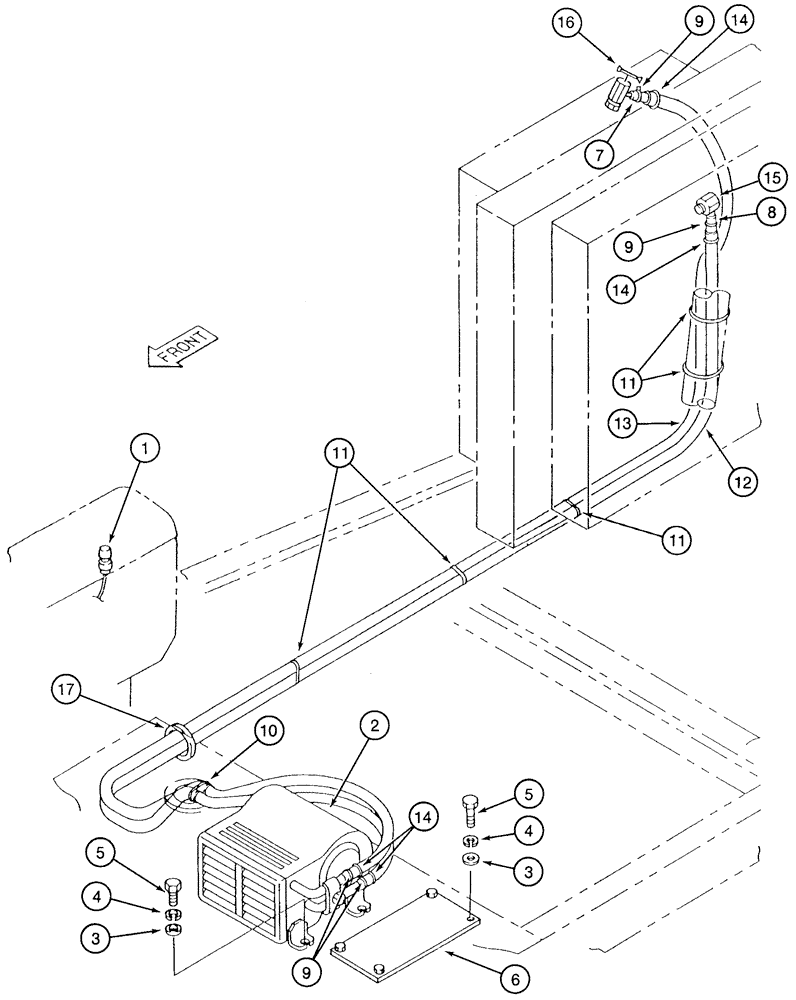

Запчасти Case 9050 (9-36) - HEATER AND HOSES (09) - CHASSIS

1

151848A1

SWITCH

rotary heater fan

1шт.

2

152815A1

HEATER,Assembly, Cab

cab, Includes: Ref. 2A

1шт.

2a

163619A1

MOTOR, ELECTRIC

cab heater blower, not shown

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

8шт.

4

892-11010

LOCK WASHER,M10

8шт.

5

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

8шт.

6

151656A1

PLATE

access

1шт.

7

152639A1

HOSE,13.00 mm ID x 5000.00 mm

To heater

1шт.

8

150813A1

HOSE

177-1/4 inch (4500 mm), Serial Range: long-radiator

1шт.

9

150384A1

COLLAR

adjustable

4шт.

10

150496A1

MOUNTING CLIP

tie, 250 mm long

1шт.

11

150071A1

MOUNTING CLIP

tie, 365 mm long

1шт.

12

151548A1

PLASTIC-RUBBER TUBE

corrugated, 169-9/32 inch (4300 mm) long

1шт.

13

151553A1

TUBE

SLEEVE corrugated, 189 inch (4800 mm) long

1шт.

14

150067A1

MOUNTING CLIP

tie, 150 mm long

4шт.

15

151061A1

NIPPLE, LUBE

NIPPLE straight heater, Serial Range: hose-radiator

1шт.

16

152725A1

VALVE

shutoff, Serial Range: water-heater

1шт.

17

152529A1

GROMMET

rubber

1шт.
