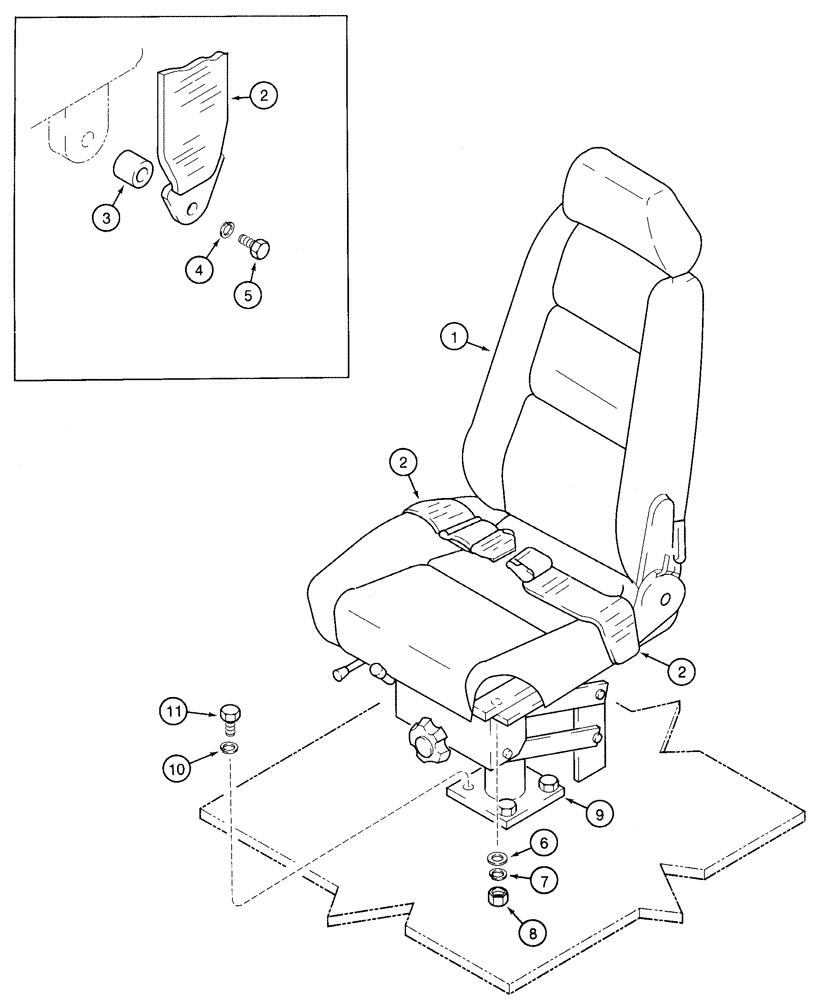

Запчасти Case 9050 (9-34) - SEAT, SEAT BELTS AND MOUNTING (09) - CHASSIS

1

153002A1

SEAT ASSY.

operator's, Includes: Ref. 1A & 1B

1шт.

1a

156801A1

RAIL

slide, right-hand, not shown

1шт.

1b

156802A1

RAIL

slide, left-hand, not shown

1шт.

2

151520A1

SAFETY BELT

SAFETY BELT

1шт.

3

152755A1

SPACER

13.7 ID x 21.7 OD x 10 mm

1шт.

4

151526A1

SPRING WASHER

lock, special

2шт.

5

151523A1

BOLT,High Strength, Hex

hex, special, seat belt mounting

2шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

7

892-11008

LOCK WASHER,8mm ID

4шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

9

152784A1

SUSPENSION

PEDESTAL seat

1шт.

10

892-11010

LOCK WASHER,M10

4шт.

11

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.
