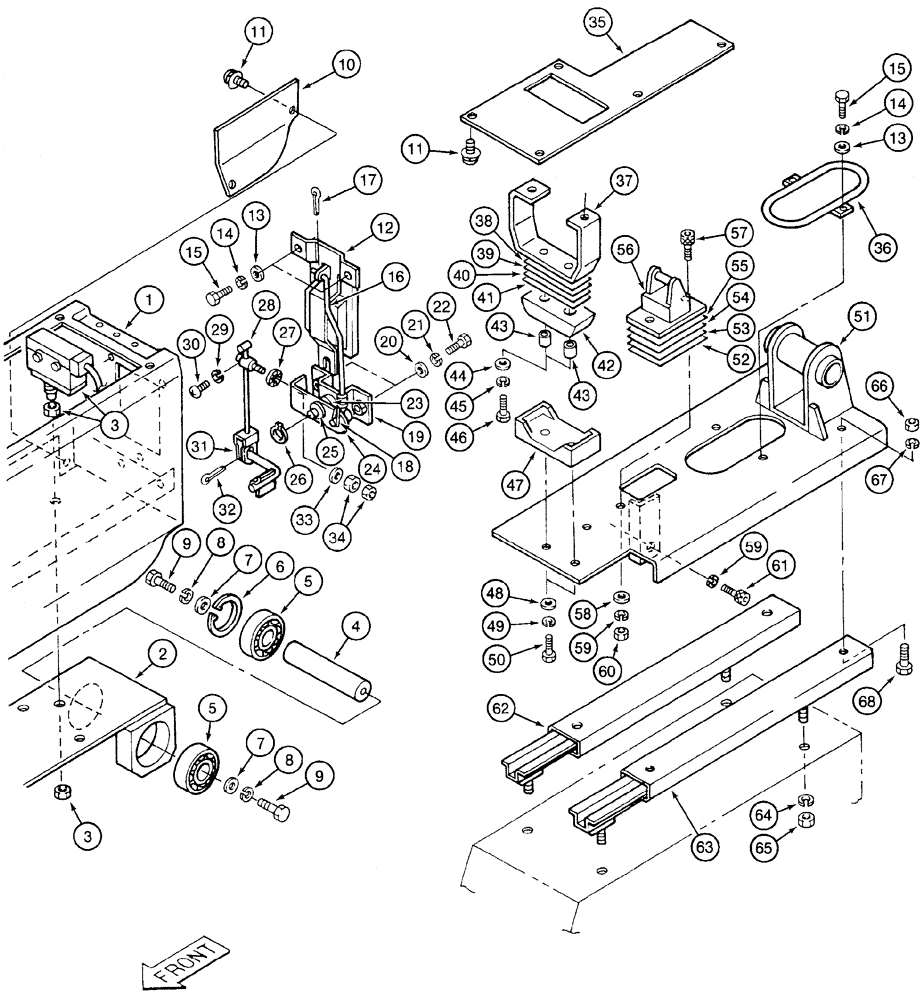

Запчасти Case 9050 (9-30) - LEFT-HAND CONTROL CONSOLE AND LINKAGE, PLATFORM TO SLIDE RAILS (09) - CHASSIS

152120A1

BOX

CONSOLE control, left-hand, includes parts on Figures 9-26 - 9-30, Includes: Ref. 1 - 68

1шт.

1

152106A1

BOX

CONSOLE control, left-hand

1шт.

2

152134A1

BRACKET

PLATFORM left-hand control console

1шт.

3

150857A1

SWITCH

limit

1шт.

4

151898A1

PIN

platform bearing

1шт.

5

152708A1

BEARING, BALL

control platform

2шт.

6

800-2147

SNAP RING,M47, Int

1шт.

7

152123A1

WASHER

2шт.

8

892-11006

LOCK WASHER,M6

2шт.

9

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

2шт.

10

151995A1

COVER

side

1шт.

11

151679A1

SCREW,Phil Pan Hd, M4 x 12mm, W/ Wshr

special

7шт.

12

151348A1

HANDLE

top cover

1шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

14

892-11006

LOCK WASHER,M6

4шт.

15

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

4шт.

16

152126A1

ROD

threaded

1шт.

17

733-2012

COTTER PIN,M2 x 12

1шт.

18

151364A1

SPRING

latch rod

1шт.

19

151956A1

BRACKET

link mounting

1шт.

20

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

21

892-11006

LOCK WASHER,M6

2шт.

22

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

2шт.

23

151389A1

WAVE WASHER

special

1шт.

24

151948A1

LINK

console latch

1шт.

25

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

1шт.

26

800-1110

SNAP RING,M10, Ext

Retaining

1шт.

27

151372A1

WAVE WASHER

special

1шт.

28

151964A1

SPECIAL PIN

1шт.

29

892-11003

LOCK WASHER,M3

lock, 3 mm

1шт.

30

840-1312

SCREW,Pan, M3 x 121mm, Cl 4.8

1шт.

31

151972A1

CABLE

latch

1шт.

32

153077A1

COTTER PIN

CLIP hair type

1шт.

33

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

34

825-1405

NUT,M5, Cl 8

2шт.

35

152160A1

COVER

FLOOR console

1шт.

36

151982A1

GUIDE

ring

1шт.

37

152145A1

BRACKET

shock absorber

1шт.

38

152148A1

SHIM

PLATE, 0.05 inch (1.2 mm) thick

1шт.

39

152151A1

SHIM

PLATE, 0.08 inch (2.0 mm) thick

1шт.

40

152154A1

SHIM

PLATE, 0.1 inch (2.6 mm) thick

1шт.

41

152851A1

SHIM

PLATE, 0.02 inch (0.5 mm) thick

1шт.

42

152142A1

STOP

rubber

1шт.

43

152158A1

SPACER

rubber stop

2шт.

44

153360A1

WASHER

flat, special

2шт.

45

892-11006

LOCK WASHER,M6

2шт.

46

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

2шт.

47

152139A1

PLATE

CATCH rubber stop

1шт.

48

153360A1

WASHER

flat, special

2шт.

49

892-11006

LOCK WASHER,M6

2шт.

50

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

Full threads

2шт.

51

152136A1

BRACKET

adapter, Serial Range: platform-rail

1шт.

52

152848A1

SHIM

0.02 inch (0.5 mm) thick

1шт.

53

152095A1

SHIM

latch striker, 0.1 inch (2.6 mm) thick

1шт.

54

152094A1

SHIM

latch striker, 0.08 inch (2.0 mm) thick

1шт.

55

152091A1

SHIM

latch striker, 0.05 inch (1.2 mm) thick

1шт.

56

152087A1

PLATE

STRIKER console latch

1шт.

57

862-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

hex socket, 8 - 1.25 x 25 mm, class 12.9

2шт.

58

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

59

892-11008

LOCK WASHER,8mm ID

3шт.

60

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

61

862-8012

HEX SOC SCREW,M8 x 12mm, Cl 12.9

hex socket, 8 - 1.25 x 12 mm, class 12.9

1шт.

62

152670A1

RAIL

slide right-hand

1шт.

63

152669A1

RAIL

slide left-hand

1шт.

64

892-11008

LOCK WASHER,8mm ID

4шт.

Part not included in console assembly, purchase separately.

1шт.

65

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

Part not included in console assembly, purchase separately.

1шт.

66

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

67

892-11008

LOCK WASHER,8mm ID

4шт.

68

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.
