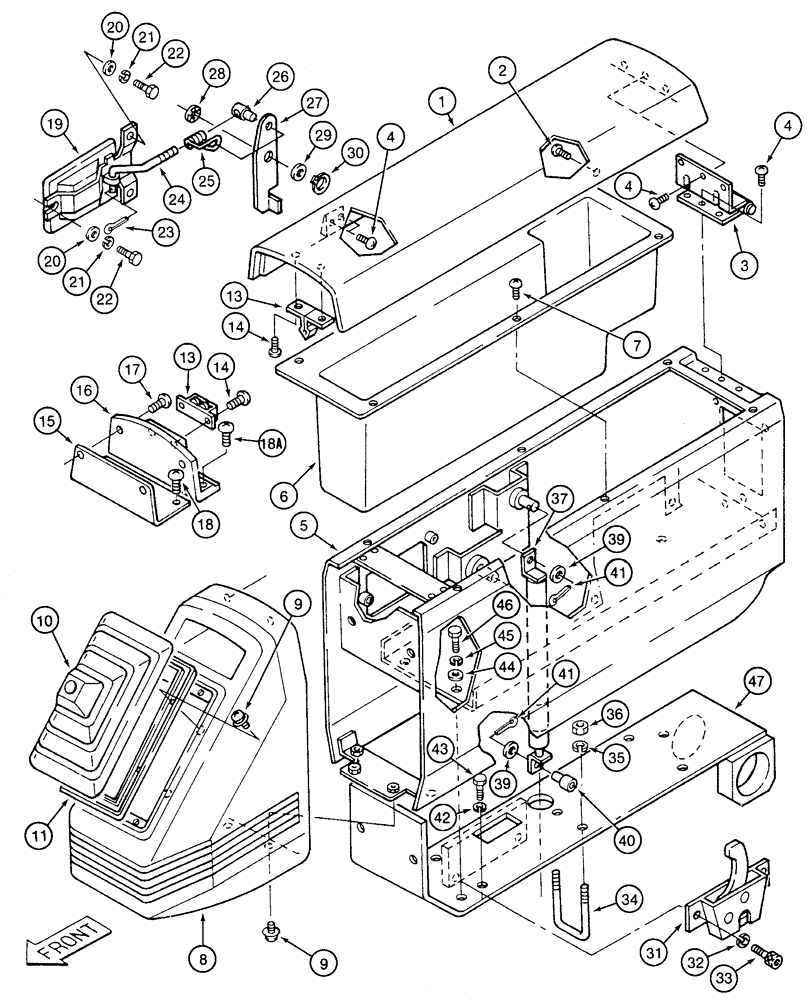

Запчасти Case 9050 (9-26) - LEFT-HAND CONTROL CONSOLE AND LINKAGE, COVER TO PLATFORM (09) - CHASSIS

152120A1

BOX

CONSOLE, control, left-hand, includes parts on Figures 9-26 - 9-30, Includes: Ref. 1 - 47

1шт.

1

152116A1

COVER

console, top

1шт.

2

152025A1

SCREW,Phil Truss Hd, M3 x 5mm

truss head, special

2шт.

3

152107A1

HINGE

top cover

1шт.

4

152028A1

SCREW,Phil Truss Hd, M4 x 8mm

truss head, special

10шт.

5

152106A1

BOX

CONSOLE control, left-hand

1шт.

6

152109A1

BOX

TRAY left-hand console

1шт.

7

151159A1

SCREW,Truss Hd, M4 x 12mm

special

6шт.

Part not included in console assembly, purchase separately.

1шт.

8

151769A1

COVER

front, left-hand console

1шт.

Part not included in console assembly, purchase separately.

1шт.

9

151679A1

SCREW,Phil Pan Hd, M4 x 12mm, W/ Wshr

special

8шт.

Part not included in console assembly, purchase separately.

1шт.

10

152398A1

BOOT

dust, remote control

1шт.

Part not included in console assembly, purchase separately.

1шт.

11

151773A1

FLANGE

BRACKET front, left-hand console

1шт.

Part not included in console assembly, purchase separately.

1шт.

13

152367A1

CATCH

console top cover, two-piece

1шт.

14

151668A1

SCREW,Phil Pan Hd, M3 x 8mm, W/ Wshr

special pan head

4шт.

15

151779A1

BRACKET

end cover mounting

1шт.

16

151775A1

COVER

top end left-hand console

1шт.

17

151159A1

SCREW,Truss Hd, M4 x 12mm

special

2шт.

Part not included in console assembly, purchase separately.

1шт.

18

157549A1

SCREW

truss head, special

2шт.

18a

157549A1

SCREW

truss head, special

2шт.

19

151348A1

HANDLE

top cover

1шт.

20

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

21

892-11006

LOCK WASHER,M6

4шт.

22

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

4шт.

23

733-2012

COTTER PIN,M2 x 12

1шт.

24

151912A1

ROD

threaded at console latch

1шт.

25

151364A1

SPRING

latch rod

1шт.

26

151358A1

SPECIAL PIN

spring tension

1шт.

27

151918A1

LINK

BELLCRANK door handle

1шт.

28

151389A1

WAVE WASHER

special

1шт.

29

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

1шт.

30

800-1110

SNAP RING,M10, Ext

Retaining

1шт.

31

150931A1

LATCH

console

1шт.

32

892-11008

LOCK WASHER,8mm ID

2шт.

33

862-8012

HEX SOC SCREW,M8 x 12mm, Cl 12.9

hex socket, 8 - 1.25 x 12 mm, class 12.9

2шт.

34

151987A1

SPECIAL CLAMP,M4 x 40mm W x 72mm L

U-BOLT platform

1шт.

35

892-11004

LOCK WASHER,M4

2шт.

36

824-1404

NUT,M4, Cl 5

2шт.

37

151934A1

DAMPER

CYLINDER air

1шт.

38

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

39

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

40

151938A1

SPECIAL PIN

retaining air cylinder rod eye

1шт.

41

153077A1

COTTER PIN

CLIP hair type

2шт.

42

892-11008

LOCK WASHER,8mm ID

2шт.

43

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

Full Thd

2шт.

44

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

45

892-11008

LOCK WASHER,8mm ID

6шт.

46

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

6шт.

47

152134A1

BRACKET

PLATFORM left-hand control console

1шт.
