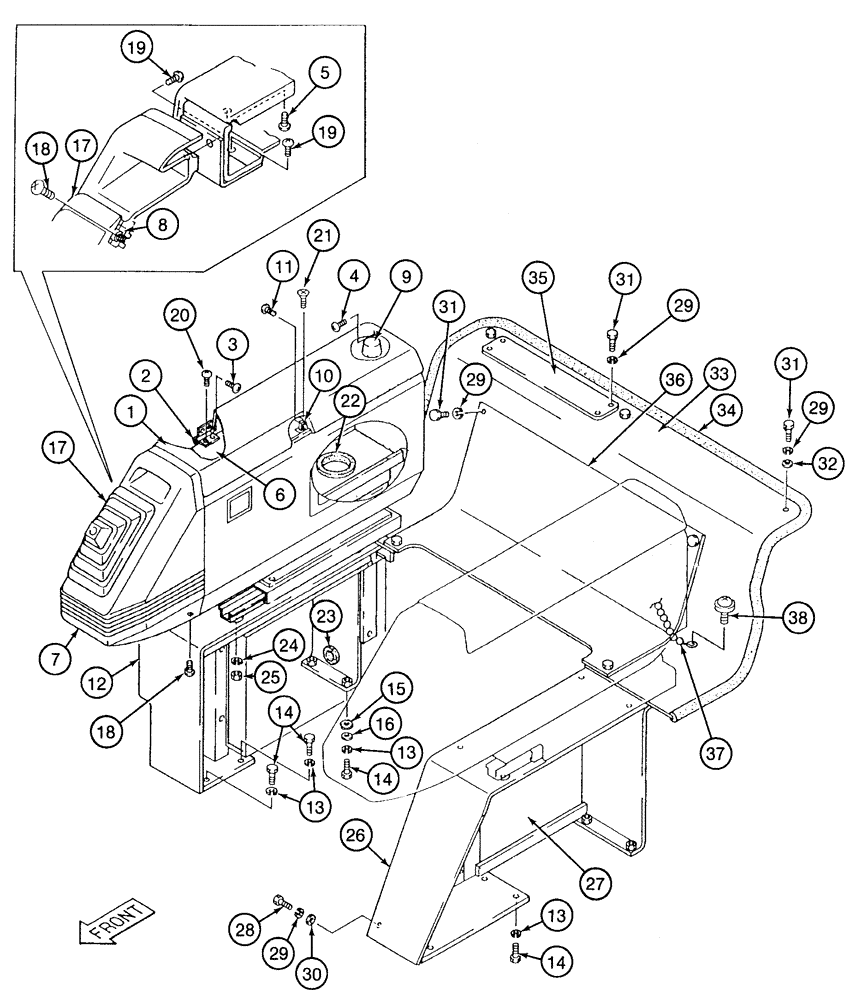

Запчасти Case 9050 (9-22) - RIGHT-HAND CONTROL CONSOLE, REAR AND SIDE COVERS (09) - CHASSIS

152190A1

COVER

right-hand control console, Includes: Ref. 1 - 5

1шт.

1

152116A1

COVER

console, top

1шт.

2

151797A1

HINGE

console top cover

2шт.

3

840-148

SCREW,Pan, M4 x 8mm, Cl 4.8

4шт.

4

152028A1

SCREW,Phil Truss Hd, M4 x 8mm

truss head, special

3шт.

5

152025A1

SCREW,Phil Truss Hd, M3 x 5mm

truss head, special

2шт.

6

152712A1

PANEL ASSY.

console

1шт.

7

151769A1

COVER

front, console

1шт.

8

151773A1

FLANGE

BRACKET boot retaining

1шт.

9

152018A1

COVER

toggle switch

1шт.

10

150517A1

CATCH

cover

1шт.

11

151668A1

SCREW,Phil Pan Hd, M3 x 8mm, W/ Wshr

special pan head

2шт.

12

152124A1

BRACKET

right-hand console

1шт.

13

892-11010

LOCK WASHER,M10

11шт.

14

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

11шт.

15

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

1шт.

17

152398A1

BOOT

dust, remote control

1шт.

18

151679A1

SCREW,Phil Pan Hd, M4 x 12mm, W/ Wshr

special

8шт.

19

157549A1

SCREW

truss head, special

7шт.

20

840-148

SCREW,Pan, M4 x 8mm, Cl 4.8

4шт.

21

843-1316

SCREW,Flat , M3 x 16mm, Cl 4.8

machine, flat Phillips, 3 - 0.5 x 16 mm

1шт.

22

150826A1

GROMMET

rubber, large

1шт.

23

150520A1

GROMMET

rubber, small

1шт.

24

892-11008

LOCK WASHER,8mm ID

4шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

26

152833A1

BRACKET

left-hand console

1шт.

27

152835A1

COVER

side, left-hand console

1шт.

28

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

6шт.

29

892-11006

LOCK WASHER,M6

19шт.

30

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

31

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

Full threads

13шт.

32

150529A1

WASHER

flat, 6 mm

7шт.

33

152164A1

REAR COVER

1шт.

34

152395A1

TEE

TRIM edge, long rear cover, 74-3/8 inch (1889 mm)

1шт.

35

151735A1

COVER

access small upper, at backrest

1шт.

36

152165A1

COVER

access large lower, at backrest

1шт.

37

151645A1

CHAIN (AG)

manual retaining

1шт.

38

151677A1

SCREW,Phil Pan Hd, M4 x 8mm, W/ Wshr

special chain retaining

1шт.
