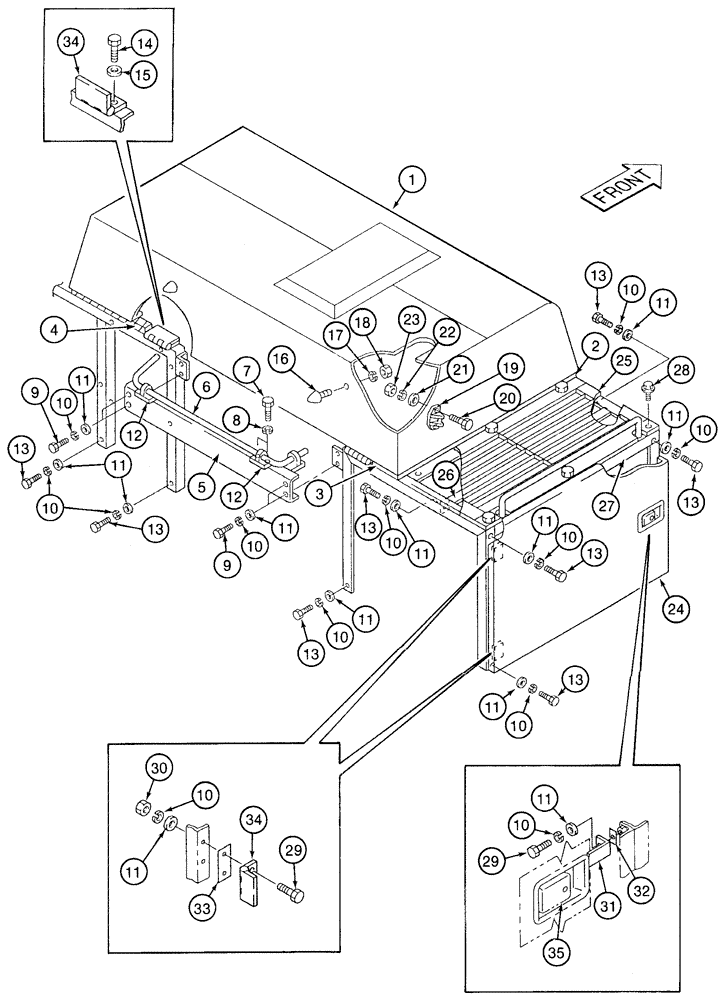

Запчасти Case 9050 (9-20) - UPPER STRUCTURE, FRAME, PANELS AND INSULATION PADS (09) - CHASSIS

1

152041A1

HOOD

engine cover

1шт.

2

152655A1

RUBBER BLOCK

foam

1шт.

3

151908A1

CUSHION ASSY.

foam

1шт.

4

151587A1

CUSHION ASSY.

foam

1шт.

5

150884A1

FRAME ASSY

upper structure

1шт.

6

150925A1

SPRING

ROD torsion

1шт.

8

892-11010

LOCK WASHER,M10

4шт.

9

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

Full Thd

4шт.

10

892-11012

LOCK WASHER,M12

31шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

31шт.

12

150928A1

BRACKET

mounting torsion bar

2шт.

13

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

18шт.

14

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

4шт.

15

150811A1

WASHER

flat, special, 12 mm

4шт.

16

151108A1

STOP

rubber

2шт.

17

892-11010

LOCK WASHER,M10

2шт.

18

153604A1

NUT

hex, special bumper retaining

2шт.

19

150856A1

STOP LOCK

top cover

1шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

22

892-11008

LOCK WASHER,8mm ID

2шт.

23

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

24

156907A1

SIDE ASSY.

DOOR access hydraulic pump, right-hand, was 151319A1

1шт.

25

152080A1

COVER

grate right-hand side

1шт.

26

151310A1

FRAME ASSY

sheet metal right-hand side

1шт.

27

151546A1

FRAME ASSY

door right-hand side

1шт.

28

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

special right grate cover

6шт.

29

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Full Thd

5шт.

30

829-1412

NUT,M12, Cl 10.9

4шт.

31

151683A1

BRACKET

angle 90°, door catch

1шт.

32

151685A1

BLOCK

SHIM plate

1шт.

33

152186A1

BLOCK

SHIM, 2.5 mm thick

1шт.

34

NSS

NOT SOLD SEPARAT

HINGE cover

4шт.

35

NSS

NOT SOLD SEPARAT

HANDLE access door

1шт.

20

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

7

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.
